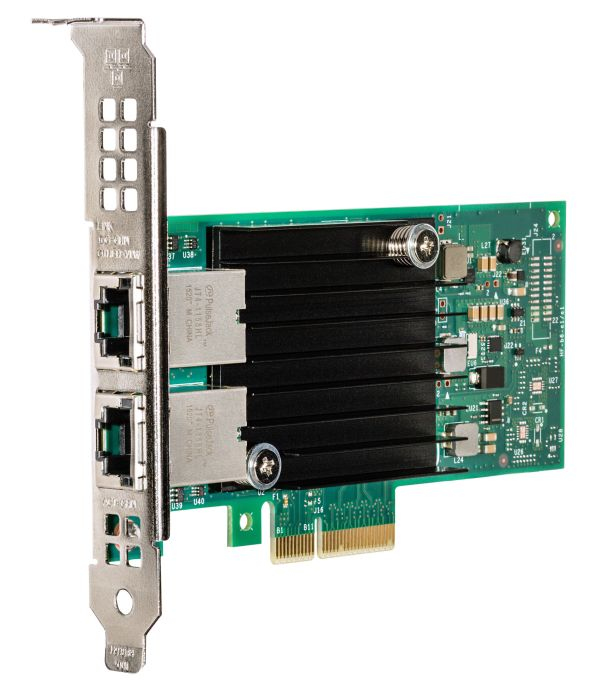

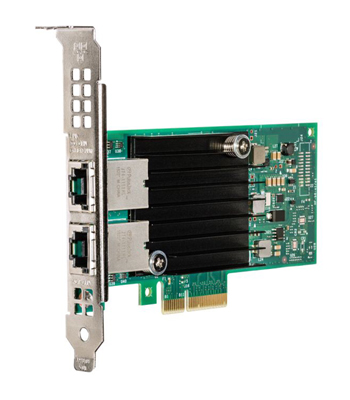

Lenovo 00MM860, Internal, Wired, PCI Express, Ethernet, 10000 Mbit/s, Black, Green
Lenovo 00MM860. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 10000 Mbit/s. Product colour: Black, Green
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 2 |
| PCI Card form factor | Full-height (low-profile) |
| Network | |
| Maximum data transfer rate | 10000 |
| Networking standards | IEEE 802.1Q, IEEE 802.1Qbg, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN data rates | 1000 |
| Cabling technology | 10/100/1000BaseT(X) |
| Jumbo frames support | Yes |
| Jumbo frames | 9500 |
| VLAN tagging | Yes |
| LAN controller | Intel® X550 |
| Design | |
| Component for | Server |
| Product colour | Black, Green |
| Internal | Yes |
| LED indicators | Yes |
| System requirements | |
| Compatible operating systems | Microsoft Windows Server 2012 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2016 Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 SUSE Linux Enterprise Server 12 SUSE Linux Enterprise Server 11 for AMD64/EM64T SUSE Linux Enterprise Server 11 with Xen for AMD64/EM64T SUSE Linux Enterprise Server 12 with Xen VMware ESXi 5.5 VMware ESXi 6.0 VMware ESXi 6.5 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 55 |
| Storage temperature (T-T) | -40 - 85 |
| Operating altitude | 0 - 3048 |
| Weight & dimensions | |
| Width | 16 |
| Depth | 134 |
| Height | 69 |
| Packaging data | |
| Quantity per pack | 1 |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Flow control support | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-c |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Intel Flexible Port Partitioning | Yes |
| Receive Side Scaling (RSS) | Yes |
Specifications
| Brand | Intel |
