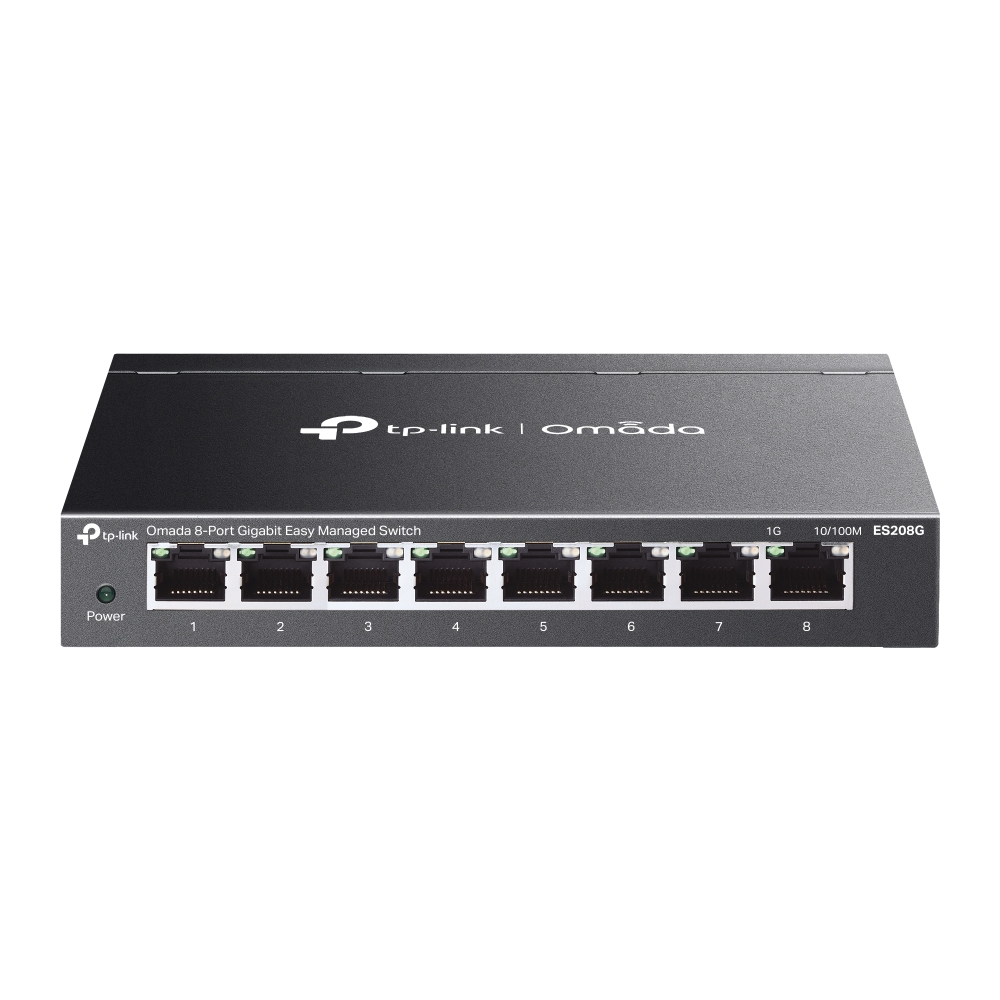

TP-Link Omada ES208G, Managed, L2, Gigabit Ethernet (10/100/1000), Wall mountable
TP-Link Omada ES208G. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.1ab, IEEE 802.3i, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.1Q. DC input voltage: 5 V. Wall mountable
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Unified static configuration | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Network | |
| Networking standards | IEEE 802.3ab, IEEE 802.1ab, IEEE 802.3i, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.1Q |
| 10G support | No |
| Zero Touch Provisioning (ZTP) | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Fast leave | Yes |
| VLAN support | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| Number of VLANs | 32 |
| Data transmission | |
| Switching capacity | 16 |
| Forwarding rate | 11.9 |
| MAC address table | 8000 |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 15000 |
| Packet buffer memory | 4 |
| Security | |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Loop protection | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Design | |
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| LED indicators | Yes |
| Wall mountable | Yes |
| Performance | |
| Flash memory | 64 |
| Firmware upgradeable | Yes |
| Fanless | Yes |
| Mean time between failures (MTBF) | 1141726 |
| Power | |
| Power source | DC |
| Power supply included | Yes |
| DC input voltage | 5 |
| Input current | 0.6 |
| Power consumption (max) | 2.7 |
| Surge protection | Yes |
| Surge protection voltage | 6 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Heat dissipation | 9.09 |
| Weight & dimensions | |
| Width | 158 |
| Depth | 100.7 |
| Height | 25.4 |
| Packaging content | |
| User guide | Yes |
| Packaging data | |
| AC adapter included | Yes |
| Package type | Box |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
