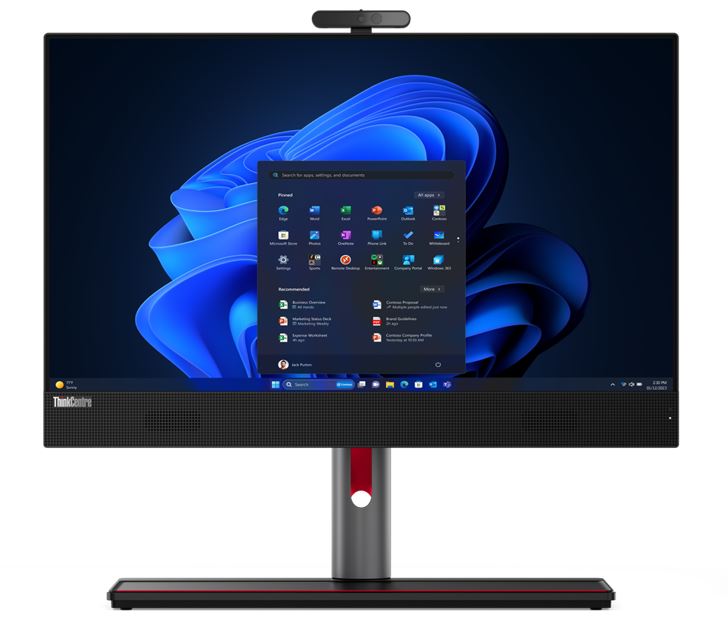

Lenovo ThinkCentre M90a, 60.5 cm (23.8"), Full HD, Intel® Core™ i5, 8 GB, 256 GB, Windows 11 Pro
Lenovo ThinkCentre M90a. Product type: All-in-One PC. Display diagonal: 60.5 cm (23.8"), HD type: Full HD, Display resolution: 1920 x 1080 pixels, Panel type: IPS. Processor family: Intel® Core™ i5. Internal memory: 8 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 256 GB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics 770. Built-in camera. Operating system installed: Windows 11 Pro. Product colour: Black
| Display | |
|---|---|
| Display diagonal | 60.5 |
| Display resolution | 1920 x 1080 |
| Touchscreen | No |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display brightness | 250 |
| Panel type | IPS |
| RGB colour space | sRGB |
| Anti-glare screen | Yes |
| Colour gamut | 99 |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 70 |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | Intel® Core™ i5 (14th gen) |
| Processor model | i5-14500 |
| Processor cores | 14 |
| Processor boost frequency | 5 |
| Performance cores | 6 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 5 |
| Efficient-core Max Turbo Frequency | 3.7 |
| Performance-core base frequency | 2.6 |
| Efficient-core base frequency | 1.9 |
| Processor cache | 24 |
| Processor cache type | Smart Cache |
| Processor base power | 65 |
| Maximum turbo power | 154 |
| Memory | |
| Internal memory | 8 |
| Internal memory type | DDR5-SDRAM |
| Maximum internal memory | 64 |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 4800 |
| Memory layout (slots x size) | 1 x 8 |
| Memory form factor | DIMM/SO-DIMM |
| Storage | |
| Total storage capacity | 256 |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 256 |
| Number of SSDs installed | 1 |
| SSD capacity | 256 |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | Yes |
| Graphics | |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 6 |
| Built-in microphone | Yes |
| Audio system | HD |
| Camera | |
| Built-in camera | Yes |
| Total megapixels | 5 |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Network | |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Antenna type | 2x2 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4/2.1 |
| DisplayPorts quantity | 1 |
| Combo headphone/mic port | Yes |
| Design | |
| Product colour | Black |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Performance | |
| Product type | All-in-One PC |
| Motherboard chipset | Intel Q670 |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system language | English |
| Operating system installed | Windows 11 Pro |
| Power | |
| AC adapter power | 180 |
| Weight & dimensions | |
| Width (with stand) | 539.6 |
| Depth (with stand) | 344.2 |
| Weight (with stand) | 7.83 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 20 - 80 |
| Operating altitude | 0 - 3048 |
| Non-operating altitude | 0 - 12192 |
| Certificates | |
| Compliance certificates | RoHS |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR, TCO, EPEAT Gold |
| Packaging content | |
| Mouse included | Yes |
| Mouse connectivity | Wired |
| Keyboard included | Yes |
| Keyboard connectivity | Wired |
| Keyboard language | English |
Specifications
| Brand | Lenovo |
