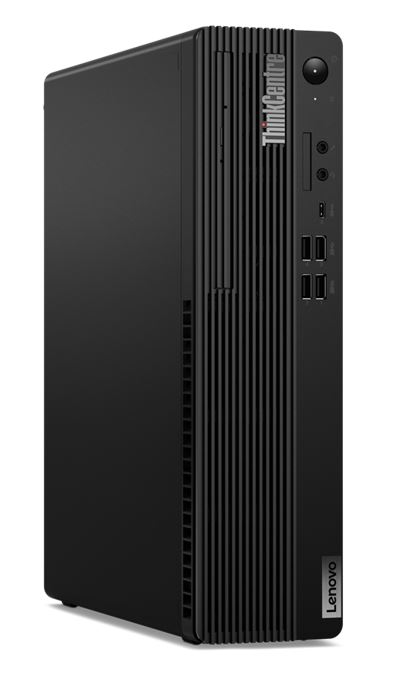

Lenovo ThinkCentre M70s Gen 5, Intel® Core™ i7, i7-14700, 16 GB, 512 GB, Windows 11 Pro, 64-bit
Lenovo ThinkCentre M70s Gen 5. Processor family: Intel® Core™ i7, Processor model: i7-14700. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 4800 MHz. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics 770. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 260 W. Chassis type: SFF. Product type: PC. Weight: 5.3 kg. Product colour: Black
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | Intel® Core™ i7 (14th gen) |
| Processor model | i7-14700 |
| Processor cores | 20 |
| Processor threads | 28 |
| Processor boost frequency | 5.4 |
| Performance cores | 8 |
| Efficient cores | 12 |
| Performance-core Max Turbo Frequency | 5.3 |
| Efficient-core Max Turbo Frequency | 4.2 |
| Performance-core base frequency | 2.1 |
| Efficient-core base frequency | 1.5 |
| Processor cache | 33 |
| Processor cache type | Smart Cache |
| Processor base power | 65 |
| Maximum turbo power | 219 |
| Memory | |
| Internal memory | 16 |
| Maximum internal memory | 64 |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 8 |
| Memory slots | 2x DIMM |
| Memory clock speed | 4800 |
| Memory channels | Dual-channel |
| Storage | |
| Total storage capacity | 512 |
| Storage media | SSD |
| Optical drive type | No |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 512 |
| Number of SSDs installed | 1 |
| SSD capacity | 512 |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | No |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | No |
| Bluetooth | No |
| Ports & interfaces | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4a |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| Combo headphone/mic port | Yes |
| Design | |
| Chassis type | SFF |
| Colour name | Black |
| Volume | 8.2 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Performance | |
| Motherboard chipset | Intel Q670 |
| Audio chip | Realtek ALC623-CG |
| Audio system | High Definition Audio |
| Built-in speaker(s) | Yes |
| Number of speakers | 1 |
| Password protection | Yes |
| Password protection type | BIOS, HDD, Power on, Supervisor |
| Trusted Platform Module (TPM) | Yes |
| Product type | PC |
| Software | |
| Operating system architecture | 64-bit |
| Operating system language | English |
| Operating system installed | Windows 11 Pro |
| Power | |
| Power supply | 260 |
| Power supply input voltage | 100 - 240 |
| Power supply input frequency | 50/60 |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | ErP Lot 3 GREENGUARD RoHS compliant TCO Certified 9.0 MIL-STD-810H military test passed |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | ErP, TCO |
| Weight & dimensions | |
| Width | 92.5 |
| Depth | 297.7 |
| Height | 339.5 |
| Weight | 5.3 |
| Packaging data | |
| Package width | 195 |
| Package depth | 395 |
| Package height | 530 |
| Package weight | 7.6 |
| Packaging content | |
| Mouse included | Yes |
| Mouse connectivity | Wired |
| Keyboard included | Yes |
| Keyboard connectivity | Wired |
| Display | |
| Display included | No |
Specifications
| Brand | Lenovo |
