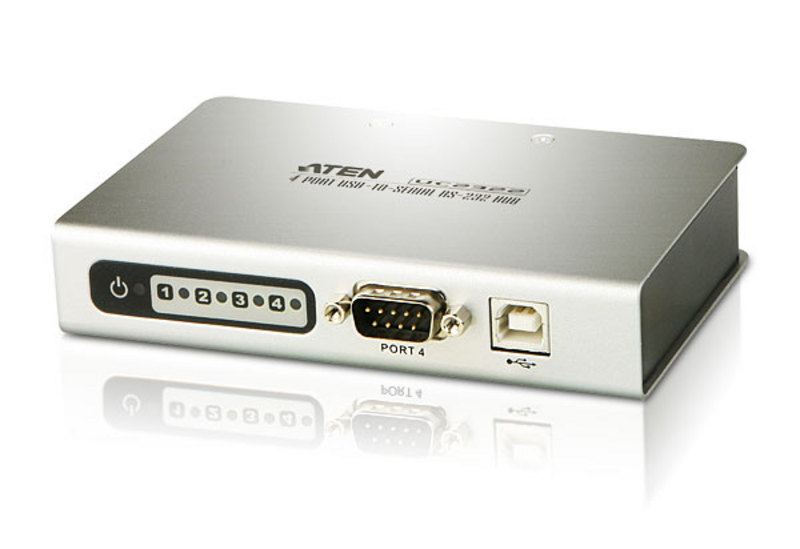

4710423773110 Aten Serial Hub 4 Port USB to RS232 Converter w/ 1.8m cable, Supports Hot-Swapping Plug and Play

(0 review)

Product Code: 4710423773110

The ATEN USB-to-Serial RS-232 Hub provides an external plug-and-play RS-232 serial connection for computers, notebooks, laptops, and handheld computing devices that support the USB specification. It provides a quick, simple, and cost-effective solution and is ideal for various communication and automation applications.
Easy way to add 4 RS-232 serial ports
Fully compliant with USB 1.1; USB 2.0 compatible
Supports RS-232 serial interface
Supports automatic handshake mode
Up to 115.2 Kbps data transfer rate for each serial port
Dual data buffers for each upstream and downstream data transfer
No IRQ, DMA, I/O address resources required
Supports hot-swapping and plug-and-play
Built-in 16KV ESD protection
Supports both bus power and external power
Works with cellular phones, PDAs, digital cameras, modems and ISDN terminal adapters

129.00 129.00 (Tax excluded)

  • Brand
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN 4-Port USB-to-Serial RS-232 Hub, USB 2.0 Type-B, Metallic, VGA, Metal, 0.4 W, 0 - 50 °C

ATEN 4-Port USB-to-Serial RS-232 Hub. Host interface: USB 2.0 Type-B. Product colour: Metallic, Hub interfaces: VGA, Housing material: Metal. Power consumption (typical): 0.4 W. Width: 80 mm, Depth: 125 mm, Height: 25 mm. Quantity per pack: 1 pc(s), Package width: 59 mm, Package depth: 239 mm

Ports & interfaces
Host interfaceUSB 2.0 Type-B
USB 2.0 ports quantity1
VGA (D-Sub) ports quantity4
DC-in jackYes
Performance
Product colourMetallic
Hub interfacesVGA
LED indicatorsYes
Housing materialMetal
Power
Power consumption (typical)0.4
Operational conditions
Operating temperature (T-T)0 - 50
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Weight & dimensions
Width80
Depth125
Height25
Weight391
Packaging data
Quantity per pack1
Package width59
Package depth239
Package height160
Package weight594
Logistics data
Products per master (outer) case20
Master (outer) case width315
Master (outer) case length490
Master (outer) case height338
Master (outer) case gross weight12.6
Master (outer) case net weight7.82
Harmonized System (HS) code84719000

Specifications

Brand Aten
