4710423774087 Aten USB Single Link DVI KVM Console Extender with Audio RS232 - 1920x1200

4710423774087 Aten USB Single Link DVI KVM Console Extender with Audio RS232 - 1920x1200

(0 review)

Product Code: 4710423774087

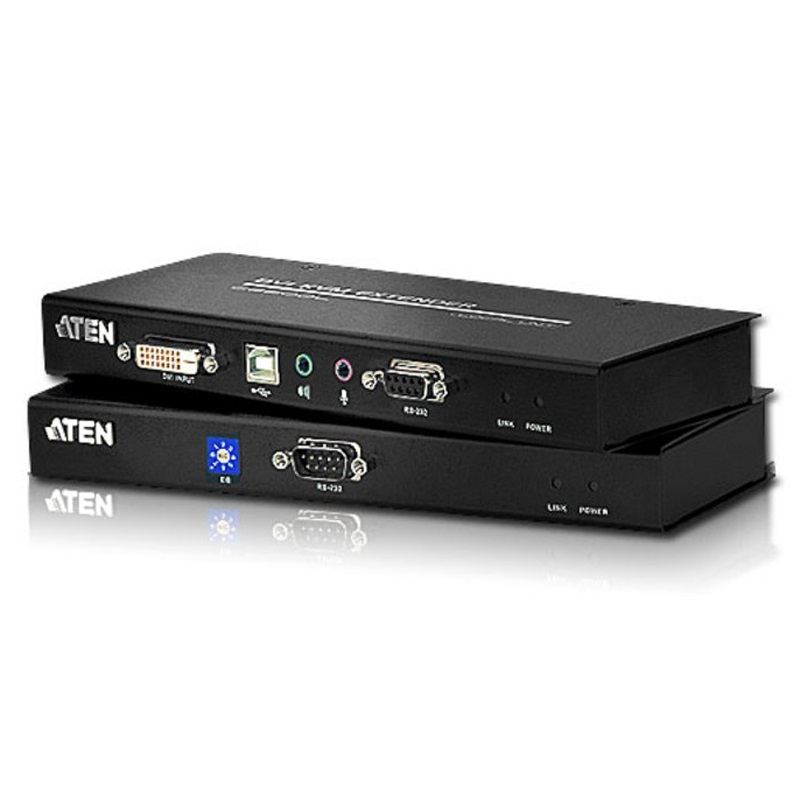

Aten CE-600 - DVI KVM Extender The CE600 is a DVI and USB based KVM Extender with RS-232 serial functionality. It allows access to a computer system from a remote console (USB keyboard, monitor, and mouse). Because it allows access to a computer system from a remote console, the CE600 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location - away from the dust and dirt of the factory floor, or the harsh environmental infl uence of a construction site, for example. This allows users to deploy system equipment over large distances. The CE600 users one Cat 5e cable (DVI Single Link) to support up to 1920 x 1080 video resolution* *The 2nd Cat 5e cable is used for HDCP, RS-232, and microphone signals.

$ 469.00 $ 469.00 (Tax excluded)

  • Brand
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN USB DVI KVM Extender with Audio and RS-232 (60m), Transmitter & receiver, Wired, 60 m, Cat5, Cat5e, 1920 x 1200 pixels, 1920 x 1200, 1024 x 768

ATEN USB DVI KVM Extender with Audio and RS-232 (60m). Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 60 m. Transmitter video port type: DVI-D, Transmitter local keyboard/mouse port type: USB. Receiver local video port type: DVI-D, Receiver local keyboard/mouse port type: USB. AC adapter output voltage: 5.3 V. Transmitter width: 20.2 cm, Transmitter depth: 8.54 cm, Transmitter height: 2.5 cm

Features
TypeTransmitter & receiver
Connectivity technologyWired
Maximum transfer distance60
Cable types supportedCat5, Cat5e
Rack mountingYes
Maximum digital resolution1920 x 1200
Supported resolutions1920 x 1200, 1024 x 768
Product colourBlack
MaterialMetal
LED indicatorsLink, Power
Transmitter
Transmitter video port typeDVI-D
Transmitter local keyboard/mouse port typeUSB
RJ-45 ports quantity (transmitter)2
Receiver
Receiver local video port typeDVI-D
Receiver local keyboard/mouse port typeUSB
RJ-45 ports quantity (receiver)2
Power
AC adapter output voltage5.3
Weight & dimensions
Transmitter width20.2
Transmitter depth8.54
Transmitter height2.5
Transmitter weight480
Receiver width20.2
Receiver depth8.5
Receiver height2.5
Receiver weight480
Packaging data
Package width98
Package depth325
Package height210
Package weight1.84
Packaging content
ManualYes
Quick installation guideYes
Operational conditions
Operating temperature (T-T)0 - 50
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Storage relative humidity (H-H)0 - 80
Technical details
Weight1.79
Logistics data
Master (outer) case net weight8.95
Harmonized System (HS) code84733080
Master (outer) case width342
Master (outer) case length512
Master (outer) case height232
Master (outer) case gross weight9.76
Products per master (outer) case5

Specifications

Brand Aten
