4710423775718 Aten Desktop KVMP Switch 4 Port Single Display HDMI w/ Dolby HD audio, 4x Custom KVM Cables Included, 2x USB Port, Selection Via Front Panel

4710423775718 Aten Desktop KVMP Switch 4 Port Single Display HDMI w/ Dolby HD audio, 4x Custom KVM Cables Included, 2x USB Port, Selection Via Front Panel

(0 review)

Product Code: 4710423775718

Aten Desktop KVMP Switch 4 Port Single Display HDMI w/ Dolby HD audio, 4x Custom KVM Cables Included, 2x USB Port, Selection Via Front Panel

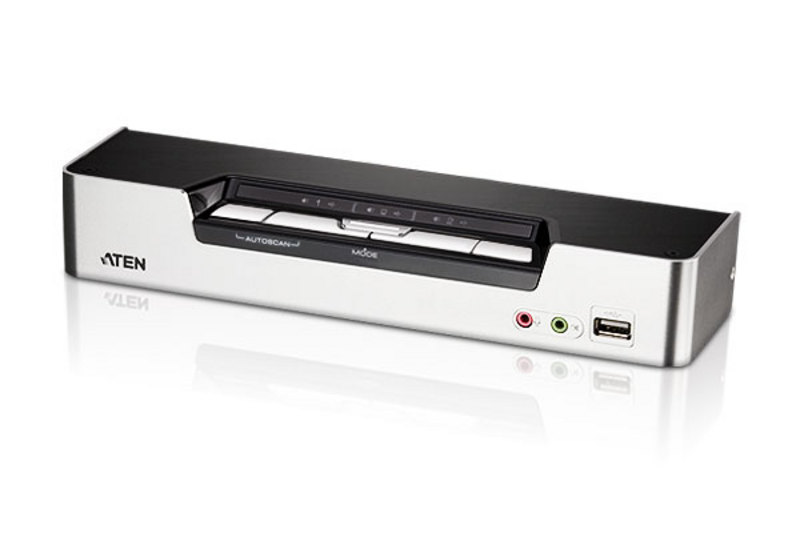

With its unique design and innovative features, the CubiQ™ CS1794 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment. Combining a 4-port switch with a 2-port USB 2.0 hub, the CS1794 provides seamless HDMI signal switching between 4 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console.
The CS1794 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSync™ technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1794 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio.
Ideal for multimedia applications in the office, the CubiQ™ CS1794 offers the ultimate in space-saving, streamlined KVM technology for the desktop.




$ 379.00 $ 379.00 (Tax excluded)

  • Brand
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN 4-Port USB HDMI KVM Switch with Audio & USB 2.0 Hub (KVM cables included), 1920 x 1200 pixels, WUXGA, 3.62 W, Black

ATEN 4-Port USB HDMI KVM Switch with Audio & USB 2.0 Hub (KVM cables included). Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal, Plastic. Power source: DC, Input voltage: 5.3 V, Power consumption (typical): 3.62 W. Width: 262.3 mm, Depth: 76.8 mm, Height: 44 mm

Ports & interfaces
Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
Video port typeHDMI
HDMI ports quantity4
USB 2.0 Type-B ports quantity4
Console ports3.5mm headphone, HDMI, USB A
Console USB ports quantity2
USB hubYes
USB 2.0 Type-A hub ports quantity2
USB connector typeUSB Type-A, USB Type-B
Audio connectionsYes
Headphone outputs6
Number of microphone inputs6
DC-in jackYes
Performance
HD typeWUXGA
Maximum resolution1920 x 1200
Video bandwidth60
Scan interval1,5,99
Design
Product colourBlack
Housing materialMetal, Plastic
LED indicatorsYes
Push buttonYes
Hot keysYes
Display
Built-in displayNo
Power
Power sourceDC
Input voltage5.3
Power consumption (typical)3.62
System requirements
Windows operating systems supportedYes
Linux operating systems supportedYes
Mac operating systems supportedYes
Operational conditions
Operating temperature (T-T)0 - 50
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Storage relative humidity (H-H)0 - 80
Weight & dimensions
Width262.3
Depth76.8
Height44
Weight1.76
Packaging data
Package width98
Package depth325
Package height210
Package weight2
Packaging content
Quick installation guideYes
ManualYes
Logistics data
Master (outer) case net weight8.8
Harmonized System (HS) code85176200
Master (outer) case width342
Master (outer) case length512
Master (outer) case height232
Master (outer) case gross weight10.7
Products per master (outer) case5

Specifications

Brand Aten
