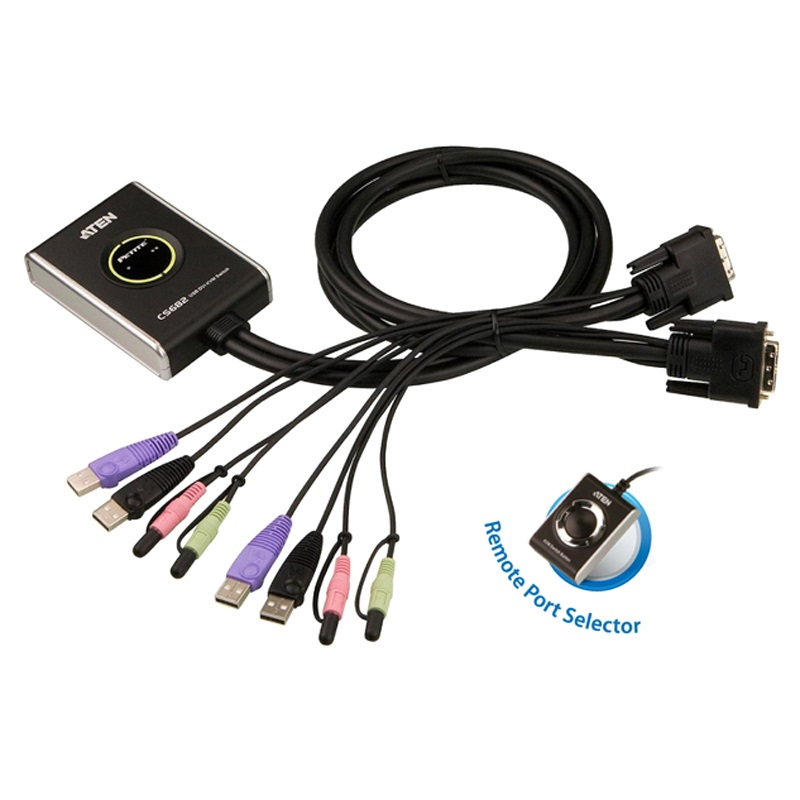

ATEN 2-Port USB DVI KVM Switch with Audio, 1920 x 1200 pixels, WUXGA, 1.9 W, Black
ATEN 2-Port USB DVI KVM Switch with Audio. Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-D. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black. Power source: DC, Input voltage: 5 V, Power consumption (typical): 1.9 W. Width: 111.5 mm, Depth: 78 mm, Height: 24 mm
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-D |
| DVI-D ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, DVI-D, USB A |
| Console USB ports quantity | 2 |
| USB 2.0 Type-A hub ports quantity | 4 |
| USB connector type | USB Type-A, USB Type-B |
| Audio connections | Yes |
| Headphone outputs | 3 |
| Number of microphone inputs | 3 |
| Performance | |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 |
| Video bandwidth | 60 |
| Scan interval | 3,5,10,20 |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Yes |
| Display | |
| Built-in display | No |
| Power | |
| Power source | DC |
| Input voltage | 5 |
| Power consumption (typical) | 1.9 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 0 - 80 |
| Storage relative humidity (H-H) | 0 - 80 |
| Weight & dimensions | |
| Width | 111.5 |
| Depth | 78 |
| Height | 24 |
| Weight | 460 |
| Packaging data | |
| Package width | 70 |
| Package depth | 163 |
| Package height | 235 |
| Package weight | 590 |
| Packaging content | |
| Quick installation guide | Yes |
| Manual | Yes |
| Logistics data | |
| Master (outer) case net weight | 4.6 |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 395 |
| Master (outer) case length | 405 |
| Master (outer) case height | 182 |
| Master (outer) case gross weight | 6.61 |
| Products per master (outer) case | 10 |
Specifications
| Brand | Aten |
