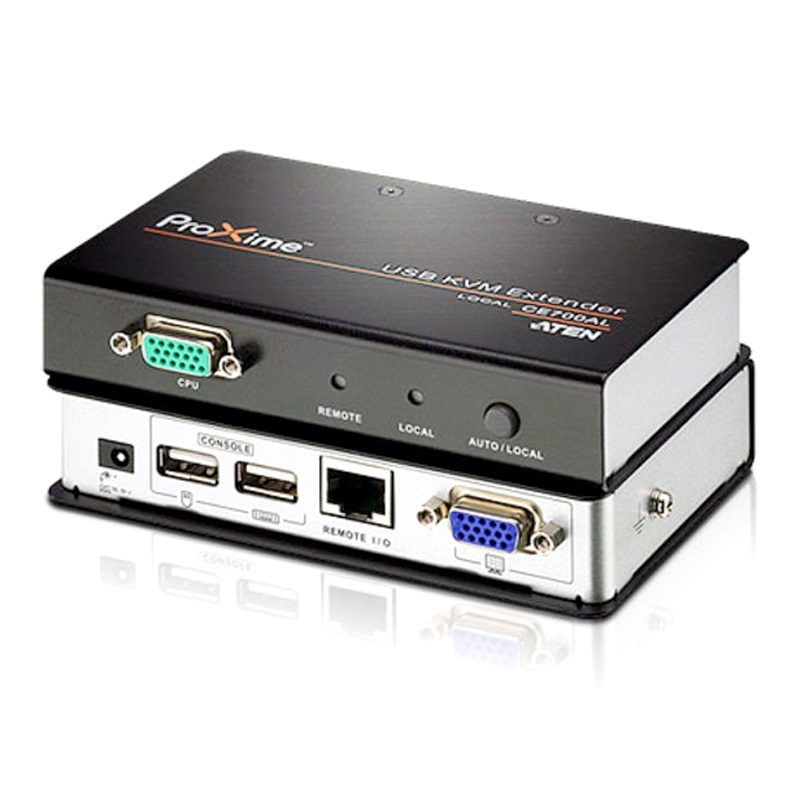

4710423776593 Aten KVM Extender Kit VGA/USB Cat 5 Extender w/ Local Access, 1920x1200@60Hz 30m, 1600x1200@60Hz 100m, 1280x1024@60Hz 150m

(0 review)

Product Code: 4710423776593

Aten CE-700A - USB KVM Extender The CE700A is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse). The CE700A improves on previous designs by: 1) incorporating 8KV/15KV ESD protection and 2KV surge protection; 2) providing superior video quality - up to 1920 x 1200 resolution; 3) using inexpensive Cat 5e cable, instead of bulkier, more expensive, standard cables, for a much neater, more convenient, more reliable data transfer connection; 4) it is able to sense the distance to the system and automatically adjusts the gain accordingly; and 5) it features a custom ASIC to ensure the utmost in reliability and compatibility.

309.00 309.00 (Tax excluded)

  • Brand
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN USB VGA KVM Extender (150m), Transmitter & receiver, Wired, 150 m, Cat5e, 1920 x 1200, 1600 x 1200, 1280 x 1024, Black, Grey

ATEN USB VGA KVM Extender (150m). Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 150 m. Transmitter video port type: VGA, Transmitter local keyboard/mouse port type: USB. Receiver local video port type: VGA, Receiver local keyboard/mouse port type: USB. AC adapter output voltage: 5.3 V. Transmitter width: 12.7 cm, Transmitter depth: 8.65 cm, Transmitter height: 2.5 cm

Features
TypeTransmitter & receiver
Connectivity technologyWired
Maximum transfer distance150
Cable types supportedCat5e
Rack mountingYes
Supported resolutions1920 x 1200, 1600 x 1200, 1280 x 1024
Product colourBlack, Grey
MaterialMetal
LED indicatorsLink, Power
Transmitter
Transmitter video port typeVGA
Transmitter local keyboard/mouse port typeUSB
RJ-45 ports quantity (transmitter)1
Receiver
Receiver local video port typeVGA
Receiver local keyboard/mouse port typeUSB
RJ-45 ports quantity (receiver)1
Power
AC adapter output voltage5.3
Weight & dimensions
Transmitter width12.7
Transmitter depth8.65
Transmitter height2.5
Transmitter weight330
Receiver width12.7
Receiver depth8.14
Receiver height2.5
Receiver weight320
Packaging data
Package width100
Package depth283
Package height173
Package weight1.41
Packaging content
ManualYes
Quick installation guideYes
Operational conditions
Operating temperature (T-T)0 - 50
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Storage relative humidity (H-H)0 - 80
Technical details
Weight1.14
Logistics data
Master (outer) case net weight5.67
Harmonized System (HS) code84733080
Master (outer) case width300
Master (outer) case length336
Master (outer) case height194
Master (outer) case gross weight6.86
Products per master (outer) case5

Specifications

Brand Aten
