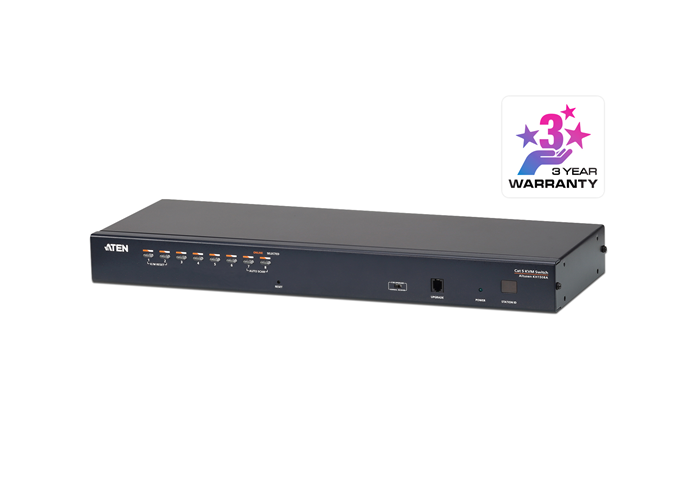

4710423776753 Aten Rackmount KVM Switch 1 Console 8 Port Multi-Interface Cat 5, KVM Cables NOT Included, Daisy Chainable for up to 256 Devices,

4710423776753 Aten Rackmount KVM Switch 1 Console 8 Port Multi-Interface Cat 5, KVM Cables NOT Included, Daisy Chainable for up to 256 Devices,

(0 review)

Product Code: 4710423776753

The KH1508 KVM Switch is control unit that allow access to multiple computers from a single KVM console. The KH1508 features RJ-45 connectors and Cat 5 cable to link to the computers. Combined with Auto Single Compensation(ASC), signals can travel up to 40 meters and still maintain high video resolution. Utilizing PS/2 and USB KVM Adapter Cables for the final linkup, the KH1508 permits any combination of PCs,Macs,Sun computers,and serial devices to coexist on the installation.

$ 789.00 $ 789.00 (Tax excluded)

  • Brand
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN 8-Port Cat 5e/6 KVM Switch, 1920 x 1200 pixels, Ethernet LAN, WUXGA, 5.1 W, Black

ATEN 8-Port Cat 5e/6 KVM Switch. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50-60 Hz. Width: 437.2 mm, Depth: 163.6 mm, Height: 44 mm

Ports & interfaces
Number of computers controlled8
Keyboard port typeUSB, PS/2
Mouse port typeUSB, PS/2
Video port typeVGA
Console portsUSB A, VGA (D-Sub)
Network
Ethernet LANYes
Ethernet LAN (RJ-45) ports8
Performance
HD typeWUXGA
Maximum resolution1920 x 1200
Video bandwidth60
Scan interval1,255
Design
Product colourBlack
Housing materialMetal
LED indicatorsYes
Push buttonYes
Hot keysYes
Display
Built-in displayNo
Power
Power sourceAC
Input voltage100 - 240
AC input frequency50-60
Power consumption (typical)5.1
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Storage relative humidity (H-H)0 - 80
Weight & dimensions
Width437.2
Depth163.6
Height44
Weight3.05
Packaging data
Package width131
Package depth540
Package height233
Package weight3.57
Packaging content
Quick installation guideYes
ManualYes
Logistics data
Master (outer) case net weight9.15
Harmonized System (HS) code85176200
Master (outer) case width375
Master (outer) case length565
Master (outer) case height258
Master (outer) case gross weight11.3
Products per master (outer) case3

Specifications

Brand Aten
