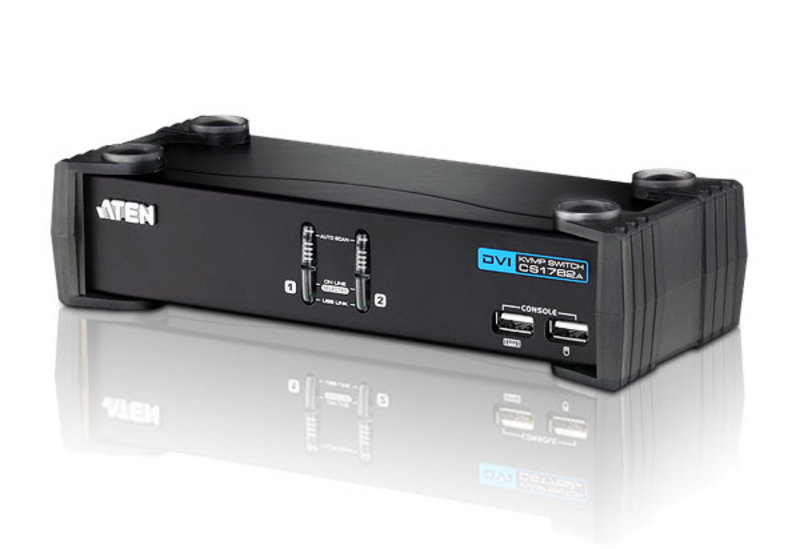

4710423776821 Aten Desktop KVMP Switch 2 Port Single Display DVI w/ audio, 2x Custom KVM Cables Included, 2x USB Port, Selection Via Front Panel

(0 review)

Product Code: 4710423776821

Aten Desktop KVMP Switch 2 Port Single Display DVI w/ audio, 2x Custom KVM Cables Included, 2x USB Port, Selection Via Front Panel
The CubiQ™ CS1762A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 2 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).
In addition, the CS1762A comes with ATEN's new Video DynaSync™ technology, which optimizes display resolution, and power on detection, which means if one computer is powered off, the CS1762A will automatically switch to the next powered-on computer.
As a KVM switch, it allows users to access two computers from a single USB keyboard, USB mouse, and monitor console. As a USB 2.0 hub, it permits each computer to access any peripherals connected to the hub on a 'one computer at a time' basis.
One USB console controls two DVI computers and two additional USB 2.0 devices
2-port USB 2.0 hub built in
Computer selection via front panel pushbuttons, hotkeys, and mouse
Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound systems
Multiplatform support – Windows, Linux, Mac, and Sun
Supports widescreen resolutions
Superior video quality – 1920 x 1200
Independent switching of KVM, USB, and Audio focus
DVI digital and analog monitor support – fully compliant with the DVI specifications
HDCP compatible
Video DynaSync™ – exclusive ATEN technology optimizes display resolution and eliminates boot-up display problems




239.00 239.00 (Tax excluded)

  • Brand
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN 2-Port USB DVI KVM Switch with Audio & USB 2.0 Hub (KVM Cables included), 1920 x 1200 pixels, WUXGA, 3.78 W, Black

ATEN 2-Port USB DVI KVM Switch with Audio & USB 2.0 Hub (KVM Cables included). Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-I. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: DC, Input voltage: 5.3 V, Power consumption (typical): 3.78 W. Width: 210 mm, Depth: 88 mm, Height: 55.5 mm

Ports & interfaces
Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDVI-I
DVI-I ports quantity2
USB 2.0 Type-B ports quantity2
Console ports3.5mm headphone, 3.5mm mic, DVI-I, USB A
Console USB ports quantity2
USB connector typeUSB Type-A, USB Type-B
Audio connectionsYes
Headphone outputs3
Number of microphone inputs3
DC-in jackYes
Performance
HD typeWUXGA
Maximum resolution1920 x 1200
Video bandwidth60
Scan interval1,99
DDC2B supportYes
Design
Product colourBlack
Housing materialMetal
LED indicatorsYes
Push buttonYes
Hot keysYes
Display
Built-in displayNo
Power
Power sourceDC
Input voltage5.3
Power consumption (typical)3.78
Operational conditions
Operating temperature (T-T)0 - 50
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Storage relative humidity (H-H)0 - 80
Weight & dimensions
Width210
Depth88
Height55.5
Weight1.38
Packaging data
Package width100
Package depth283
Package height173
Package weight1.63
Packaging content
Quick installation guideYes
ManualYes
Logistics data
Master (outer) case net weight6.9
Harmonized System (HS) code85176200
Master (outer) case width292
Master (outer) case length517
Master (outer) case height194
Master (outer) case gross weight8.65
Products per master (outer) case5

Specifications

Brand Aten
