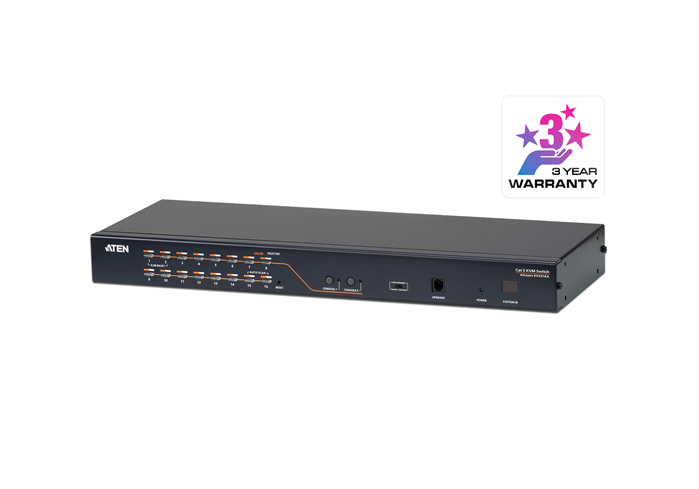

4710423776876 Aten Rackmount KVM Switch 2 Console 16 Port Multi-Interface Cat 5, KVM Cables NOT Included, Daisy Chainable for up to 256 Devices,

(0 review)

Product Code: 4710423776876

•Two KVM consoles independently and simultaneously control up to 16 directly connected computers
•By daisy chaining up to 15 additional KH2516A switches, as many as 256 computers can be controlled from the original KVM console
•Console conversion – any type of KVM console can control any type of computer; mixed combinations (PS/2USB)
•supported on both the KVM console and computer sides
•Superior Video Quality- Supports the video resolutions up to 1600x1200@60Hz for up to 40 meters, and 1280x1024@75 Hz for up to 50 meters *With KVM Adapter Cable KA7000 series
•OSD Backup/Restore feature – enables the administrator to back up the switch's configuration and user profile information
•Configure port access rights for users on a port - by - port basis
•Diversified port operation mode enables flexible computer management – Occupy, Exclusive and share modes
•Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
•Multiplatform support – PC, Mac, Sun, and serial
•Multiple User Accounts -Supports up to 10 user and 1 administrator accounts
•Two-Level Password Security – Supports one administrator and ten user profiles. Password protection prevents unauthorized accessing to the installation
•Auto Scan mode enables continuous monitoring of user-selected computers
•Broadcast Mode sends commands from the console to administrator-selected computers – allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously
•Adapter ID
•Firmware Upgradeable

1,279.00 1,279.00 (Tax excluded)

  • Brand
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN 16-Port 2-console Cat 5e/6 KVM Switch, 1920 x 1200 pixels, Ethernet LAN, WUXGA, Black

ATEN 16-Port 2-console Cat 5e/6 KVM Switch. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Width: 437.2 mm, Depth: 163.7 mm, Height: 44 mm

Ports & interfaces
Number of computers controlled32
Keyboard port typeUSB, PS/2
Mouse port typeUSB, PS/2
Video port typeVGA
Console portsPS/2, USB A, VGA (D-Sub)
Console USB ports quantity2
USB connector typeUSB Type-A
PS/2 ports quantity2
Network
Ethernet LANYes
Ethernet LAN (RJ-45) ports32
Performance
HD typeWUXGA
Maximum resolution1920 x 1200
Video bandwidth60
Scan interval1,255
Design
Product colourBlack
Housing materialMetal
LED indicatorsYes
Push buttonYes
Hot keysYes
Power
Power sourceAC
Input voltage100 - 240
AC input frequency50 - 60
Input current1
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Storage relative humidity (H-H)0 - 80
Weight & dimensions
Width437.2
Depth163.7
Height44
Weight3.21
Packaging data
Package width116
Package depth540
Package height233
Package weight3.77
Packaging content
Quick installation guideYes
ManualYes
Logistics data
Master (outer) case net weight9.63
Harmonized System (HS) code85176200
Master (outer) case width375
Master (outer) case length565
Master (outer) case height258
Master (outer) case gross weight12.5
Products per master (outer) case3

Specifications

Brand Aten
