4710423777002 Aten Desktop KVM Switch 2 Port Single Display VGA, Both USB PS/2 Options, Custom Cables Included, Selection Via Front Panel,

4710423777002 Aten Desktop KVM Switch 2 Port Single Display VGA, Both USB PS/2 Options, Custom Cables Included, Selection Via Front Panel,

(0 review)

Product Code: 4710423777002

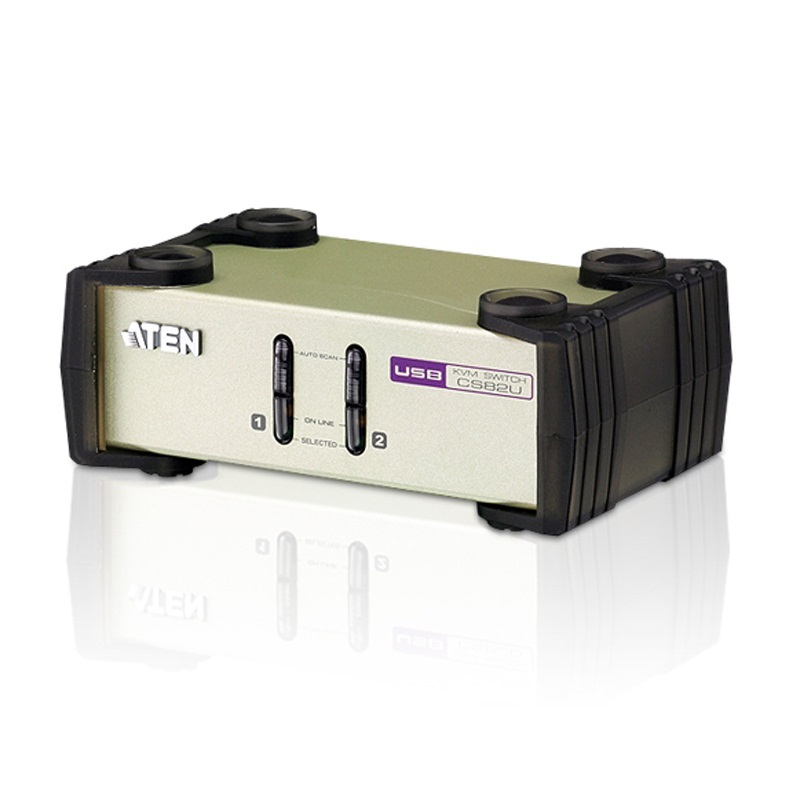

Aten Desktop KVM Switch 2 Port Single Display VGA, Both USB PS/2 Options, Custom Cables Included, Selection Via Front Panel,
The CS82U PS/2-USB KVM Switch is a desktop control unit that allows users to access two computers from a single KVM console (PS/2 or USB keyboard and mouse, and VGA monitor). In addition, CS82U comes with ATEN's new Video DynaSync™ technology, which eliminates boot-up display problems and optimizes resolution.
Setup is fast and easy; simply plug cables into their appropriate ports. There is no software to configure, no installation routines, and no incompatibility problems. Since the CS82U intercepts keyboard input directly, it will work on multiple computing platforms.

$ 89.10 $ 89.10 (Tax excluded)

  • Brand
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN 2-Port USB - PS/2 VGA KVM Switch (KVM Cables included), 2048 x 1536 pixels, QXGA, 0.72 W, Light grey

ATEN 2-Port USB - PS/2 VGA KVM Switch (KVM Cables included). Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels, Video bandwidth: 60 Hz. Product colour: Light grey, Housing material: Metal. Power source: DC, Input voltage: 5 V, Power consumption (typical): 0.72 W. Width: 88 mm, Depth: 140 mm, Height: 55.5 mm

Ports & interfaces
Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeVGA
VGA (D-Sub) ports quantity2
Console portsUSB A, VGA (D-Sub)
Console USB ports quantity2
DC-in jackYes
Performance
HD typeQXGA
Maximum resolution2048 x 1536
Video bandwidth60
Scan interval3,5,10,20
DDC2B supportYes
Design
Rack mountingNo
Product colourLight grey
Housing materialMetal
LED indicatorsYes
Push buttonYes
Hot keysYes
Display
Built-in displayNo
Power
Power sourceDC
Input voltage5
Power consumption (typical)0.72
Operational conditions
Operating temperature (T-T)0 - 50
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Storage relative humidity (H-H)0 - 80
Weight & dimensions
Width88
Depth140
Height55.5
Weight869
Packaging data
Package width59
Package depth239
Package height175
Package weight981
Packaging content
Quick installation guideYes
ManualYes
Logistics data
Master (outer) case net weight8.69
Harmonized System (HS) code85176200
Master (outer) case width328
Master (outer) case length497
Master (outer) case height196
Master (outer) case gross weight10.4
Products per master (outer) case10

Specifications

Brand Aten
