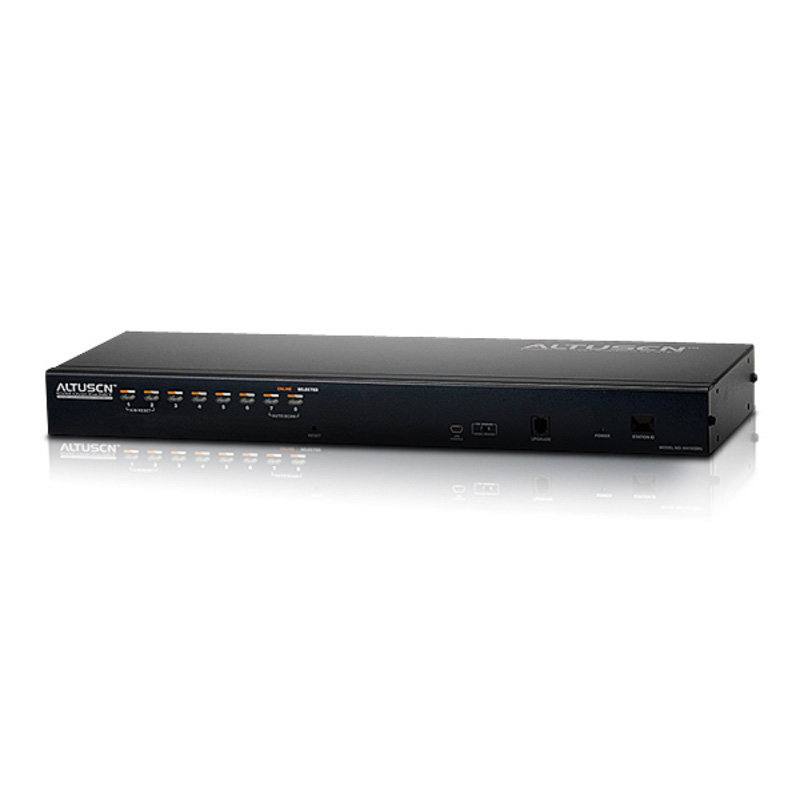

ATEN 8-Port CAT5e/6 KVM Over IP Switch, 1920 x 1200 pixels, Ethernet LAN, WUXGA, 8.7 W, Black
ATEN 8-Port CAT5e/6 KVM Over IP Switch. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Width: 437.2 mm, Depth: 163.6 mm, Height: 44 mm
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 8 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| Console ports | PS/2, USB A, VGA (D-Sub) |
| Console USB ports quantity | 2 |
| USB hub | Yes |
| PS/2 ports quantity | 2 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 8 |
| Performance | |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 |
| Video bandwidth | 60 |
| Scan interval | 1,255 |
| Design | |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Display | |
| Built-in display | No |
| Power | |
| Power source | AC |
| Input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
| Input current | 1 |
| Power consumption (typical) | 8.7 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 0 - 80 |
| Storage relative humidity (H-H) | 0 - 80 |
| Weight & dimensions | |
| Width | 437.2 |
| Depth | 163.6 |
| Height | 44 |
| Weight | 3.18 |
| Packaging data | |
| Package width | 131 |
| Package depth | 540 |
| Package height | 233 |
| Package weight | 3.58 |
| Packaging content | |
| Quick installation guide | Yes |
| Manual | Yes |
| Logistics data | |
| Master (outer) case net weight | 9.54 |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 420 |
| Master (outer) case length | 565 |
| Master (outer) case height | 258 |
| Master (outer) case gross weight | 11.4 |
| Products per master (outer) case | 3 |
Specifications
| Brand | Aten |
