Aten 8 Port Cat 5 High-Density KVM Over the NET

Aten 8 Port Cat 5 High-Density KVM Over the NET

Brand: Aten SKU: 4710423777439
(0 review)

Product Code: 4710423777439

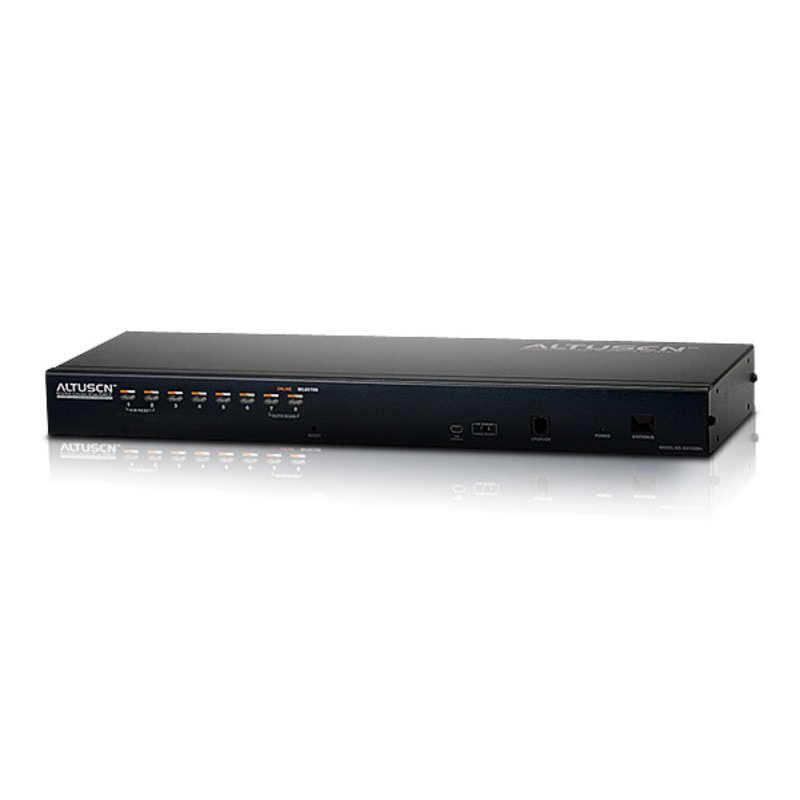

The KH1508i KVM Switch is a control unit that allow access to multiple computers from a single KVM console. It uses TCP/IP for its communications protocol, and can be accessed from any computer on the Net - whether that computer is located down the hall, down the street, or half-way around the world.

$ 1,512.42 $ 1,512.42

  • Availability
  • Brand
Available to order
Call 1300 308 646 for lead time
  • Australia Post Parcel & Express — live quote at checkout, Australia-wide
  • Prices include GST — tax invoice with every order
  • 30-day money-back guarantee
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Availability: Available to order
Brand: Aten

Key specifications

Brand Aten
Our SKU 4710423777439
Barcode (EAN/UPC) 4710423777439

Specifications

ATEN 8-Port CAT5e/6 KVM Over IP Switch, 1920 x 1200 pixels, Ethernet LAN, WUXGA, 8.7 W, Black

ATEN 8-Port CAT5e/6 KVM Over IP Switch. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Width: 437.2 mm, Depth: 163.6 mm, Height: 44 mm

Ports & interfaces
Number of computers controlled8
Keyboard port typeUSB, PS/2
Mouse port typeUSB, PS/2
Video port typeVGA
Console portsPS/2, USB A, VGA (D-Sub)
Console USB ports quantity2
USB hubYes
PS/2 ports quantity2
Network
Ethernet LANYes
Ethernet LAN (RJ-45) ports8
Performance
HD typeWUXGA
Maximum resolution1920 x 1200
Video bandwidth60
Scan interval1,255
Design
Product colourBlack
Housing materialMetal
LED indicatorsYes
Display
Built-in displayNo
Power
Power sourceAC
Input voltage100 - 240
AC input frequency50 - 60
Input current1
Power consumption (typical)8.7
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Storage relative humidity (H-H)0 - 80
Weight & dimensions
Width437.2
Depth163.6
Height44
Weight3.18
Packaging data
Package width131
Package depth540
Package height233
Package weight3.58
Packaging content
Quick installation guideYes
ManualYes
Logistics data
Master (outer) case net weight9.54
Harmonized System (HS) code85176200
Master (outer) case width420
Master (outer) case length565
Master (outer) case height258
Master (outer) case gross weight11.4
Products per master (outer) case3
