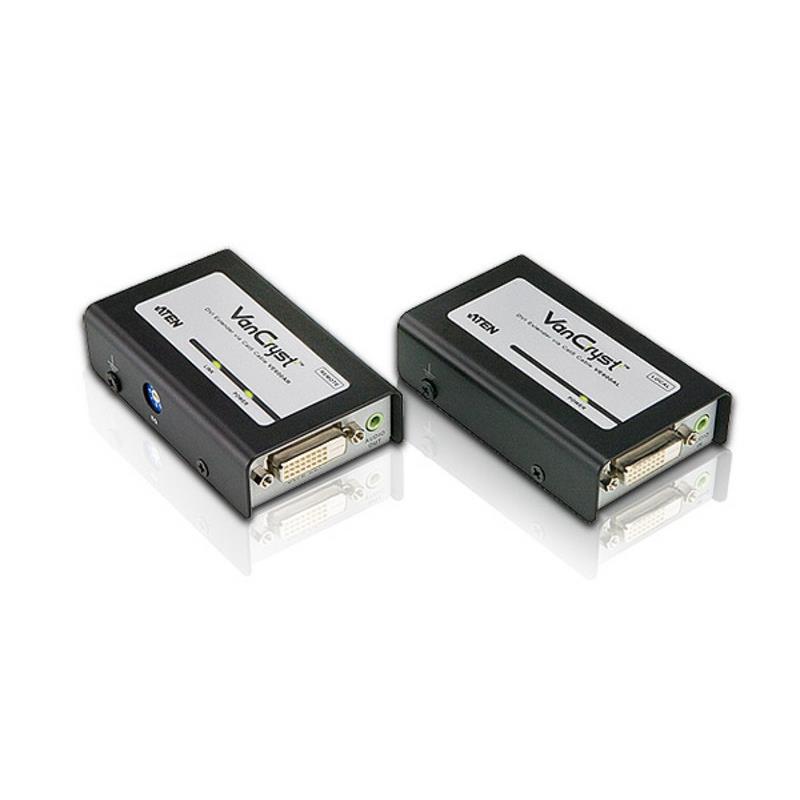

ATEN DVI Over Cat5e/6 Audio/Video Extender (60m), 1920 x 1200 pixels, AV transmitter & receiver, 60 m, Wired, Black, HDCP
ATEN DVI Over Cat5e/6 Audio/Video Extender (60m). Type: AV transmitter & receiver, Maximum resolution: 1920 x 1200 pixels, Cable types supported: Cat5e. Connectivity technology: Wired, Video in: 1 x DVI-D, Video out: 1 x DVI-D. Power consumption (max): 2.05 W, Power consumption (transmitter) (max): 1.56 W, Power consumption (receiver) (max): 0.76 W. Weight: 490 g, Receiver dimensions (WxDxH): 56 x 91.3 x 24 mm, Receiver weight: 170 g. Quantity per pack: 2 pc(s), Package width: 59 mm, Package depth: 239 mm
| Features | |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1200 |
| Cable types supported | Cat5e |
| Maximum transfer distance | 60 |
| Supported video modes | 1080i, 1080p |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Bandwidth | 225 |
| HDCP | Yes |
| Material | Metal |
| Impedance | 100 |
| Product colour | Black |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 2 |
| RJ-45 output ports | 2 |
| DVI input ports | 2 |
| DVI output ports | 2 |
| Video in | 1 x DVI-D |
| Video out | 1 x DVI-D |
| Audio input | 1 |
| Audio output | 1 |
| Power | |
| Power consumption (max) | 2.05 |
| Power consumption (transmitter) (max) | 1.56 |
| Power consumption (receiver) (max) | 0.76 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 0 - 80 |
| Weight & dimensions | |
| Weight | 490 |
| Receiver dimensions (WxDxH) | 56 x 91.3 x 24 |
| Receiver weight | 170 |
| Transmitter dimensions (WxDxH) | 56 x 91.3 x 24 |
| Transmitter weight | 170 |
| Packaging data | |
| Quantity per pack | 2 |
| Package width | 59 |
| Package depth | 239 |
| Package height | 160 |
| Package weight | 660 |
| Packaging content | |
| AC adapter included | Yes |
| Manual | Yes |
| Grounding wire | Yes |
| Mounting kit | Yes |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 315 |
| Master (outer) case length | 490 |
| Master (outer) case height | 338 |
| Master (outer) case gross weight | 14 |
| Master (outer) case net weight | 9.8 |
| Products per master (outer) case | 20 |
Specifications
| Brand | Aten |
