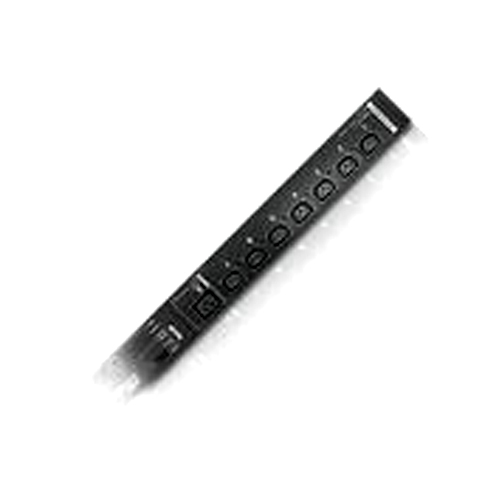

4710423778627 Aten 16-Port 16A Eco Power Distribution Unit - PDU over IP, 0U Rack Mount Design, Outlet level metering and switching (PE8216G)

(0 review)

Product Code: 4710423778627

As part of its NRGence line, ATEN has developed a new generation of green energy power distribution units (eco PDUs) to effectively increase the efficiency of data center power usage. The NRGence PE8216 eco PDUs are intelligent PDUs that contain 16 AC outlets and are available in various IEC socket configurations. Models in the advanced PE8 ranges feature NRGence´s proactive overload protection, which automatically powers off the last outlet that caused the current overload. NRGence eco PDUs provide secure, centralized, intelligent, power management (power on, off, cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), as well as the ability to monitor the center´s health environment via sensors. NRGence eco PDUs offer remote power control combined with real-time power measurement — allowing you to control and monitor the power status of devices attached to the PDUs, either at the PDU device, bank, or outlet level, depending on the model, from practically any location via a TCP/IP connection. The power status of each outlet can be set individually, allowing users to switch each device On/Off. The eco PDU also offers comprehensive power analysis reports which can separate departments and locations, providing precise measurements of current, voltage, power and watt-hour in a real-time display. Installation and operation is fast and easy: plugging cables into their appropriate ports and user-friendly browser-based configuration and management is all that is entailed. Since the eco PDU firmware is upgradeable over the Net, you can stay current with the latest functionality improvements simply by downloading updates from our website as they become available. NRGence eco PDU supports any 3rd party V3 SNMP Manager Software and NRGence eco Sensors (eco PDU Manager Software). eco Sensors provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly Gr

2,039.00 2,039.00 (Tax excluded)

  • Brand
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN 16A 16 Outlet Switched + Metered PDU + Free Eco PDU Manager Software, Metered, Switched, Metal, Black, 16 AC outlet(s), C13 coupler, C19 coupler, C20 coupler

ATEN 16A 16 Outlet Switched + Metered PDU + Free Eco PDU Manager Software. PDU types: Metered, Switched, Housing material: Metal, Product colour: Black. AC outlets quantity: 16 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler. Cable length: 1.6 m. Management platform: SNMP v1/v2/v3. Nominal input voltage: 100 - 240 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz

Design
PDU typesMetered, Switched
Housing materialMetal
Product colourBlack
Ports & interfaces
AC outlets quantity16
Power plugC20 coupler
AC outlet typesC13 coupler, C19 coupler
Features
LED indicatorsYes
Cable length1.6
Management features
Management platformSNMP v1/v2/v3
Power
Nominal input voltage100 - 240
AC input frequency50 - 60
Maximum current16
Nominal output voltage100 - 240
Load capacity3680
Certificates
CertificationTUV-CB, CE-LVD, CE
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Weight & dimensions
Width66
Depth1324.8
Height44
Weight4.47
Packaging data
Package weight6.22
Package width187
Package depth1415
Package height179
Logistics data
Master (outer) case net weight4.47
Master (outer) case width187
Master (outer) case length1415
Master (outer) case height179
Master (outer) case gross weight6.21
Products per master (outer) case1

Specifications

Brand Aten
