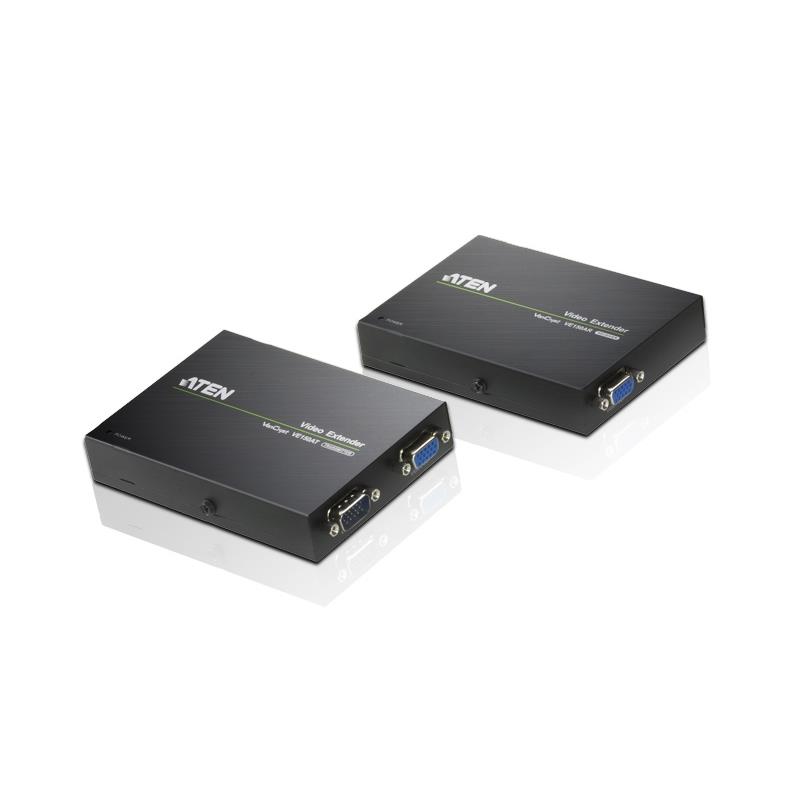

4710423778894 Aten Professional Video Extender VGA Via Cat5, Supports One local One Remote Output, 1900x1200@60Hz 30m, 1280x1024@60hz 150m

4710423778894 Aten Professional Video Extender VGA Via Cat5, Supports One local One Remote Output, 1900x1200@60Hz 30m, 1280x1024@60hz 150m

(0 review)

Product Code: 4710423778894

VE150A video extender comprises a local transmitting unit and a remote receiving unit which are connected by standard Cat 5e cables. The distance of both units can be extended up to 150m. It is ideal for factories and construction sites, or any location where the display may need to expose in a risky setting, but you want the system to be kept in a safe location.
Uses Cat 5e cables to connect the local and remote units
Supports one local and one remote display
Long distance transmission – up to 150 m
Adjustable gain control – manually adjust signal strength to compensate for distance
Superior video quality – up to 1920x1200 (30 m);1600x1200 (100 m); 1280x1024 (150 m)
Supports VGA, XGA, SVGA, UXGA, WUXGA, and multisync monitors
Supports wide screen formats
Supports hot-plugging
Built-in 8KV/15KV ESD protection
Supports DDC for the local monitor
Easy installation
Rack Mountable
Plug-and-play – no software installation required

$ 179.00 $ 179.00 (Tax excluded)

  • Brand
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN VGA Over Cat5e/6 Video Extender 150meter, 1920 x 1200 pixels, AV transmitter & receiver, 150 m, Wired, Black

ATEN VGA Over Cat5e/6 Video Extender 150meter. Type: AV transmitter & receiver, Maximum resolution: 1920 x 1200 pixels, Cable types supported: Cat5. Connectivity technology: Wired, Video in: 1 x HDB-15, Video out: 1 x HDB-15. Power consumption (transmitter) (max): 1 W, Power consumption (receiver) (max): 1.2 W. Weight: 970 g, Receiver dimensions (WxDxH): 127.7 x 90.4 x 22.6 mm, Receiver weight: 240 g. Quantity per pack: 2 pc(s), Package width: 62 mm, Package depth: 283 mm

Features
TypeAV transmitter & receiver
Maximum resolution1920 x 1200
Cable types supportedCat5
Maximum transfer distance150
Supported graphics resolutions1280 x 1024 (SXGA), 1920 x 1200 (WUXGA)
MaterialMetal
Rack mountingYes
Plug and PlayYes
Impedance75
Product colourBlack
Ports & interfaces
Connectivity technologyWired
HDBaseT portYes
VGA (D-Sub) input ports1
Video in1 x HDB-15
Video out1 x HDB-15
Power
Power consumption (transmitter) (max)1
Power consumption (receiver) (max)1.2
Operational conditions
Operating temperature (T-T)0 - 50
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Weight & dimensions
Weight970
Receiver dimensions (WxDxH)127.7 x 90.4 x 22.6
Receiver weight240
Transmitter dimensions (WxDxH)127.7 x 90.4 x 22.6
Transmitter weight240
Packaging data
Quantity per pack2
Package width62
Package depth283
Package height173
Package weight1.11
Packaging content
AC adapter includedYes
Cables includedVGA
ManualYes
Mounting kitYes
Logistics data
Master (outer) case width300
Master (outer) case length336
Master (outer) case height194
Master (outer) case gross weight5.92
Master (outer) case net weight4.85
Products per master (outer) case5

Specifications

Brand Aten
