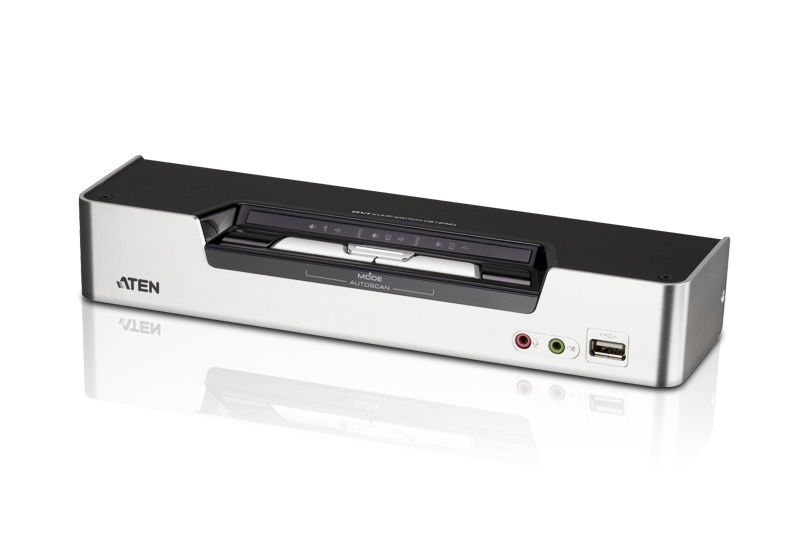

4710423779679 Aten Desktop KVMP Switch 2 Port Dual Display DVI Dual Link w/ audio, 2x Custom KVM Cables Included, 2x USB Port, Selection Via Front Panel

(0 review)

Product Code: 4710423779679

The CS1642A 2-Port USB DVI Dual View KVMP™ Switch is a multi-application device that integrates a 2-port KVM switch with 2-port USB hub. The newest version now supports Quad-View functionality with two Dual View KVM Switches connected.
The new CS1642A features multi-view capabilities, which allow two switches to be daisy chained for a dual, triple, or quadview display across multi-monitor installations. The CS1642A supports advanced nVidia 3D Vision ready 120Hz 3D displaying,allowing you to manage various 3D visual effects. It allows you to manipulate all connected computers from a single console to save resources and work space. It enables each computer to access connected peripherals on a one-computer-at-a-time basis, making it ideal for users who need delicate visual effects and multi-tasking on several computers. The CS1642A is perfect for graphic designers, banking and financial consultants, gamers and medical professionals-demanding a high quality switch that provides stunning color, clarity and functionality.
One dual-screen USB console controls two/four dual-screen computers and two additional USB devices
Multi-View Display – Easily connect two CS1642A/1644A's units for a second dual-screen setup controlled through a single connection
Superior video quality – 2560 x 1600 at 60Hz (DVI Dual link); and 3D displays up to 1920 x 1200 at 120Hz (DVI Single link)
Supports widescreen resolutions
Independent switching of KVM, USB, and Audio focus
DVI digital and analog monitor support – fully compliant with DVI specifications; and HDCP compliant
Multiplatform support – Windows 2000/XP/Vista, Linux *, Mac, Sun,and FreeBSD
Sun/Mac keyboard support and emulation **
Video DynaSync, exclusive ATEN technology, to eliminate boot-up display problems and optimizes resolution when switching between ports
Power on detection - if one computer is powered off, the CS1642A will automatically switch to the next powered-on computer

529.00 529.00 (Tax excluded)

  • Brand
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN 2-Port USB DVI Dual-View KVM Switch with Audio & USB 2.0 Hub (KVM cables included), 2560 x 1600 pixels, Ethernet LAN, Rack mounting, 10.6 W, 1U, Black, Silver

ATEN 2-Port USB DVI Dual-View KVM Switch with Audio & USB 2.0 Hub (KVM cables included). Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-I. Maximum resolution: 2560 x 1600 pixels, Video bandwidth: 60 Hz, Scan interval: 1,99 s. Product colour: Black, Silver, Rack capacity: 1U, Housing material: Metal, Plastic. Power source: DC, Input voltage: 5.3 V, Power consumption (typical): 10.6 W. Compliance certificates: RoHS

Ports & interfaces
Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDVI-I
DVI-I ports quantity6
Console ports3.5mm headphone, 3.5mm mic, DVI-I, USB A
Console USB ports quantity2
USB 2.0 Type-A hub ports quantity2
Audio connectionsYes
Headphone outputs2
Number of microphone inputs1
DC-in jackYes
Network
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Performance
Maximum resolution2560 x 1600
Video bandwidth60
Scan interval1,99
Design
Rack mountingYes
Rack capacity1U
Product colourBlack, Silver
Housing materialMetal, Plastic
LED indicatorsYes
Push buttonYes
Hot keysYes
Display
Built-in displayNo
Power
Power sourceDC
Input voltage5.3
Power consumption (typical)10.6
System requirements
Windows operating systems supportedYes
Linux operating systems supportedYes
Mac operating systems supportedYes
Other operating systems supportedYes
Sustainability
Compliance certificatesRoHS
Operational conditions
Operating temperature (T-T)0 - 50
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Weight & dimensions
Width262.3
Depth76.8
Height44
Weight1.72
Packaging data
Package width98
Package depth325
Package height210
Package weight2
Packaging content
Cables includedDVI, KVM
Quick installation guideYes
ManualYes
AC adapter includedYes
Logistics data
Master (outer) case net weight8.6
Harmonized System (HS) code85176200
Master (outer) case width342
Master (outer) case length512
Master (outer) case height232
Master (outer) case gross weight10.9
Products per master (outer) case5

Specifications

Brand Aten
