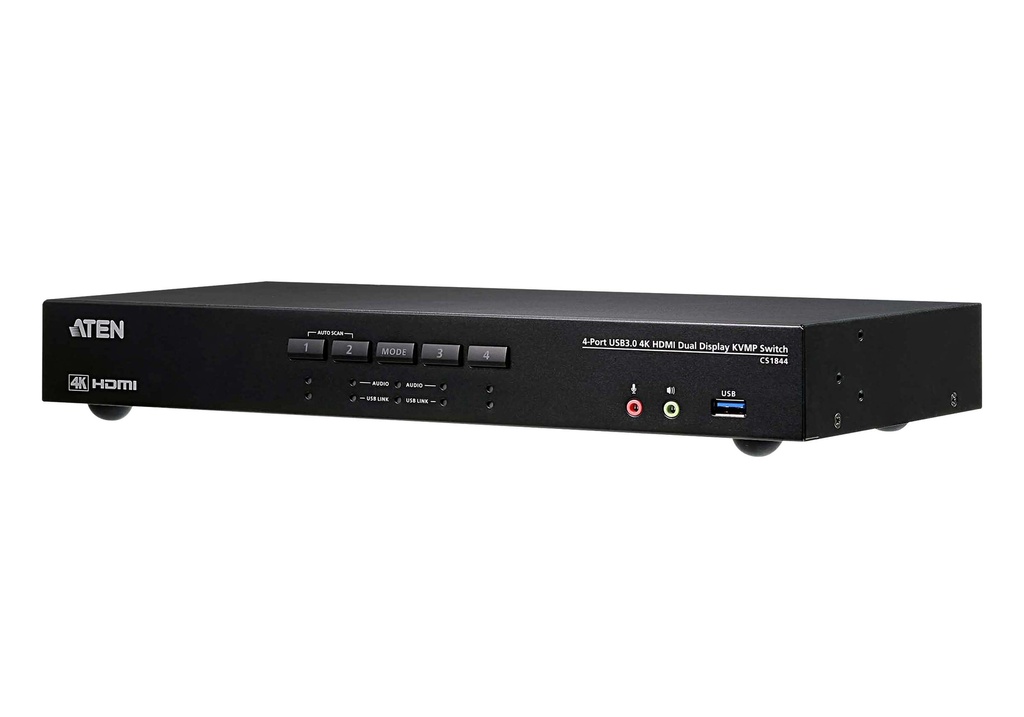

4710469340048 Aten Desktop KVMP Switch 4 Port Dual Display 4k HDMI w/ audio, Cables Included, 2x USB Port, Selection Via Front Panel

(0 review)

Product Code: 4710469340048

Aten Desktop KVMP Switch 4 Port Dual Display 4k HDMI w/ audio, Cables Included, 2x USB Port, Selection Via Front Panel
The ATEN CS1844 Dual Display KVMP™ Switch presents a valuable solution for desktop workstation with instant and effortless access to four HDMI interface computers from a single USB keyboard, mouse and two HDMI monitors; to meet users’ needs, the CS1844 is compliant with HDMI 2.0 standard and supports superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), offering the most stunning and vivid visuals.
In addition, with patented ATEN technology – Video DynaSync™, which optimizes display resolution, speeds up switching between systems, and ensures that windows opened on an extended desktop will not revert to their default configurations on the main display when switching between ports, providing a smooth and uninterrupted user experience. Considering immediate data sharing, a built-in USB 3.1 Gen 1 hub delivers data transfer rates up to 5 Gbps, allowing you to speed up operations and share USB peripherals efficiently.
For requirements of more displays to monitor, users can daisy-chain two CS1844 for up to four displays to multitask easily and process tremendous information. Besides, a remote port selector is available for quick and streamlined port selection apart from pushbuttons, hotkeys and mouse port switching.
As a feature-rich KVM switch, the CS1844 is especially suitable for users who need to perform multiple tasks smoothly at CGI work, graphic design, video post production, and CAD engineering.

1,179.00 1,179.00 (Tax excluded)

  • Brand
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN 4-Port USB 3.0 4K HDMI Dual Display KVMP™ Switch, 4096 x 2160 pixels, 4K Ultra HD, 4.42 W, Black

ATEN 4-Port USB 3.0 4K HDMI Dual Display KVMP™ Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: DC, Input voltage: 12 V, Power consumption (typical): 4.42 W. Width: 335 mm, Depth: 160.5 mm, Height: 44 mm

Ports & interfaces
Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
Video port typeHDMI
HDMI ports quantity8
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity4
Console ports3.5mm headphone, HDMI, USB A
Console USB ports quantity2
USB hubYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity2
USB connector typeUSB Type-A, USB Type-B
Audio connectionsYes
Headphone outputs6
Number of microphone inputs6
DC-in jackYes
Performance
HD type4K Ultra HD
Maximum resolution4096 x 2160
Video bandwidth60
Scan interval1,5,99
Design
Product colourBlack
Housing materialMetal
LED indicatorsYes
Push buttonYes
Hot keysYes
Display
Built-in displayNo
Power
Power sourceDC
Input voltage12
Power consumption (typical)4.42
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Storage relative humidity (H-H)0 - 80
Weight & dimensions
Width335
Depth160.5
Height44
Weight3.38
Packaging data
Package width116
Package depth540
Package height233
Package weight4.35
Packaging content
Quick installation guideYes
ManualYes
Logistics data
Master (outer) case net weight10.1
Harmonized System (HS) code85176200
Master (outer) case width375
Master (outer) case length565
Master (outer) case height258
Master (outer) case gross weight13.8
Products per master (outer) case3

Specifications

Brand Aten
