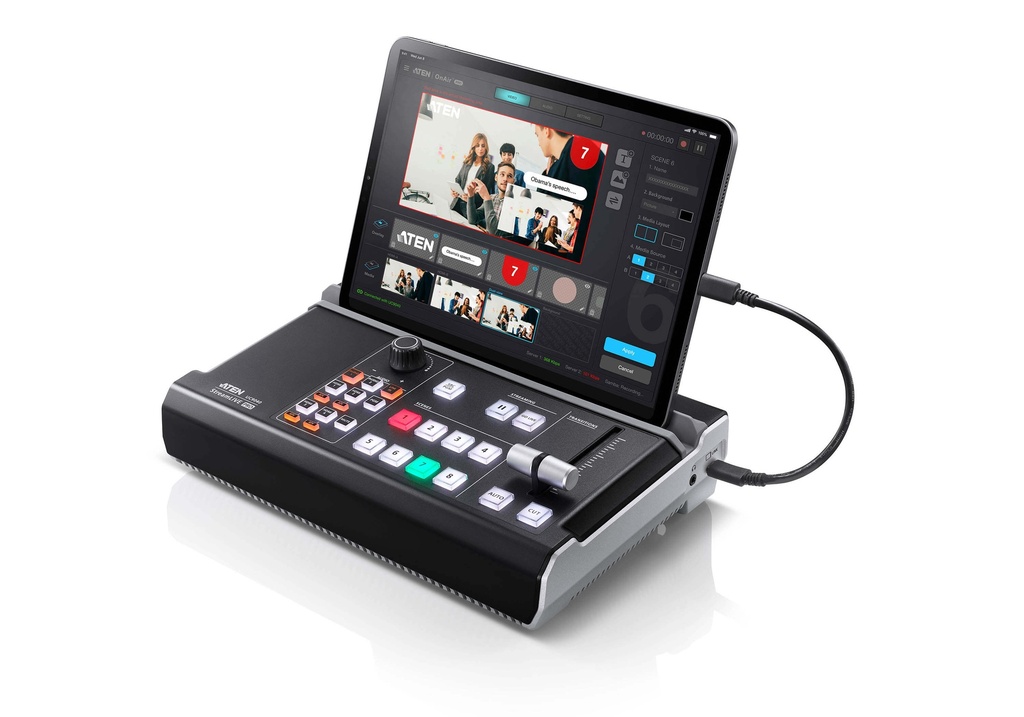

ATEN StreamLIVE™ PRO All-in-one Multi-channel AV Mixer, 4K Ultra HD, 640 x 480,800 x 600,1024 x 768,1280 x 1024,1600 x 1200,1680 x 1050, 1080p, 2160p, H.264, MP4, AAC, 10,100,1000 Mbit/s
ATEN StreamLIVE™ PRO All-in-one Multi-channel AV Mixer. HD type: 4K Ultra HD, Video resolutions: 640 x 480,800 x 600,1024 x 768,1280 x 1024,1600 x 1200,1680 x 1050, Supported video modes: 1080p, 2160p. Video formats supported: H.264, MP4, Audio formats supported: AAC. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power source type: DC. Product colour: Black, Grey, Housing material: Metal
| Video | |
|---|---|
| HD type | 4K Ultra HD |
| Video resolutions | 640 x 480,800 x 600,1024 x 768,1280 x 1024,1600 x 1200,1680 x 1050 |
| Supported video modes | 1080p, 2160p |
| Performance | |
| Video formats supported | H.264, MP4 |
| Audio formats supported | AAC |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 |
| Display | |
| Built-in display | No |
| Ports & interfaces | |
| HDMI in | 4 |
| Number of HDMI outputs | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Power | |
| Power source type | DC |
| Design | |
| Rack mounting | No |
| Product colour | Black, Grey |
| Housing material | Metal |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 0 - 80 |
| Storage relative humidity (H-H) | 0 - 80 |
| Weight & dimensions | |
| Width | 288.5 |
| Depth | 189.9 |
| Height | 96.6 |
| Weight | 2.5 |
| Package width | 290 |
| Package depth | 365 |
| Package height | 133 |
| Package weight | 3.59 |
| Logistics data | |
| Products per master (outer) case | 1 |
| Master (outer) case gross weight | 3.59 |
| Master (outer) case length | 380 |
| Master (outer) case width | 305 |
| Master (outer) case height | 157 |
| Master (outer) case net weight | 2.5 |
Specifications
| Brand | Aten |
