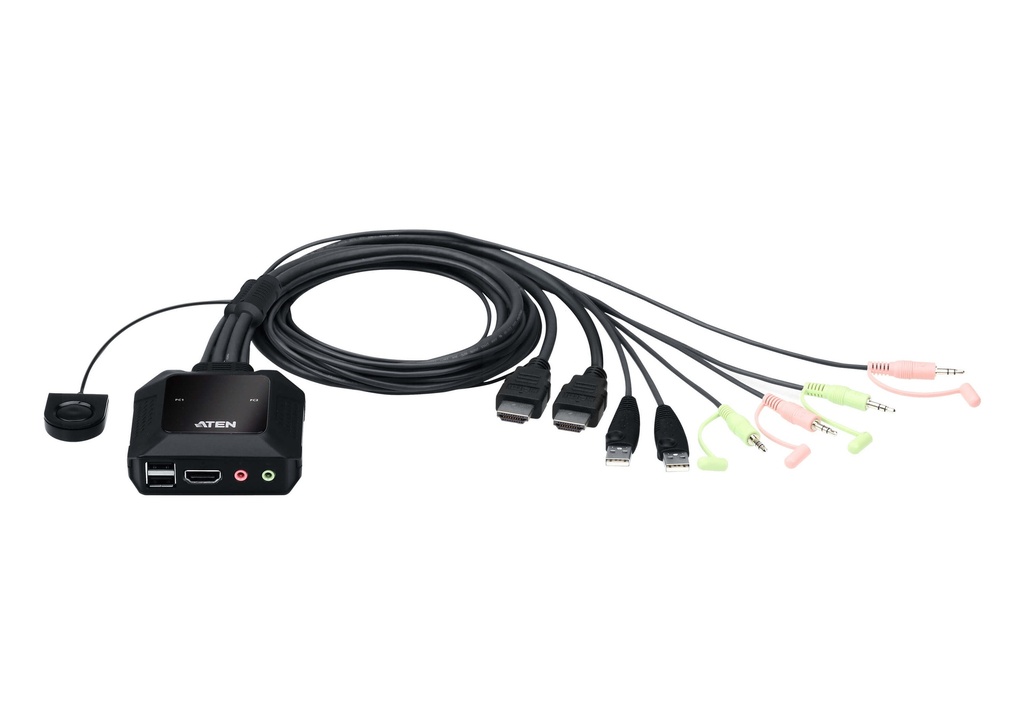

4710469340468 Aten 2 Port USB 4K @60Hz HDMI Cable KVM Switch with Remote Port Selector

(0 review)

Product Code: 4710469340468

For a smart-looking, neat and tidy work environment, ATEN’s patented all-in-one design Cable KVM Switches eliminate the bother of connecting multiple cables by consolidating keyboard, video and mouse cables into one, and building that cable right into switch.
The ATEN CS22H Cable KVM Switch can instantly access two computers with a USB and HDMI console while offering superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), bringing users maximum convenience and optimum visuals.
When users want to switch between the computers, simply press the built-in remote port selector to enjoy intuitive operations. Moreover, the CS22H supports USB peripheral sharing, easily integrating data and ensuring uninterrupted data transmission.
Its compact and bus-powered design provides an efficient installation without bulky cable setups, and the newly-designed hook allows users to place the CS22H wherever they want to keep desktop tidy and well-organized. This plug and play switch is ideal for people who need quick control to multitask between two computers at the desktop in any environment.
One USB keyboard, mouse and one HDMI monitor control two HDMI computers
Superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz)
Computer selection via remote port selector
HDMI compliant; HDCP 2.2 compliant
Supports USB hot-plugging
The console USB ports can be used for USB peripheral sharing1
Multiplatform support – Windows, Mac and Linux
Hook design for space-saving and organized workstation
Plug and play
Bus-powered – no external power adapter required
Note: 1. The CS22H may require an external power supply via the USB Micro-B Power Port. For the USB Micro-B cable connecting to the USB Micro-B Power Port, it requires a separate purchase based on the type of the power supply you use.

99.00 99.00 (Tax excluded)

  • Brand
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN 2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector, 4096 x 2160 pixels, 4K Ultra HD, 3.47 W, Black

ATEN 2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Plastic, Cable length: 1.2 m. Power source: USB, Input voltage: 5 V, Power consumption (typical): 3.47 W. Width: 84.2 mm, Depth: 83.4 mm, Height: 30.4 mm

Ports & interfaces
Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeHDMI
HDMI ports quantity3
Console ports3.5mm headphone, 3.5mm mic, HDMI, USB A
Console USB ports quantity2
Console HDMI ports quantity1
USB connector typeUSB Type-A
Audio connectionsYes
Headphone outputs3
Number of microphone inputs3
Performance
HD type4K Ultra HD
Maximum resolution4096 x 2160
Video bandwidth60
HDCPYes
Hot-Plug supportYes
Plug and PlayYes
HDCP version2.2
Design
Rack mountingNo
Product colourBlack
Housing materialPlastic
Wired remote switchYes
Cable length1.2
Remote switch cable length1.8
LED indicatorsYes
Display
Built-in displayNo
Power
Power sourceUSB
Input voltage5
Power consumption (typical)3.47
System requirements
Windows operating systems supportedYes
Linux operating systems supportedYes
Mac operating systems supportedYes
Operational conditions
Operating temperature (T-T)0 - 50
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Storage relative humidity (H-H)0 - 80
Weight & dimensions
Width84.2
Depth83.4
Height30.4
Weight340
Packaging data
Package width55
Package depth155
Package height223
Package weight420
Packaging content
Quick installation guideYes
ManualYes
Logistics data
Master (outer) case net weight6.8
Harmonized System (HS) code85176200
Master (outer) case width328
Master (outer) case length389
Master (outer) case height330
Master (outer) case gross weight9.3
Products per master (outer) case20

Specifications

Brand Aten
