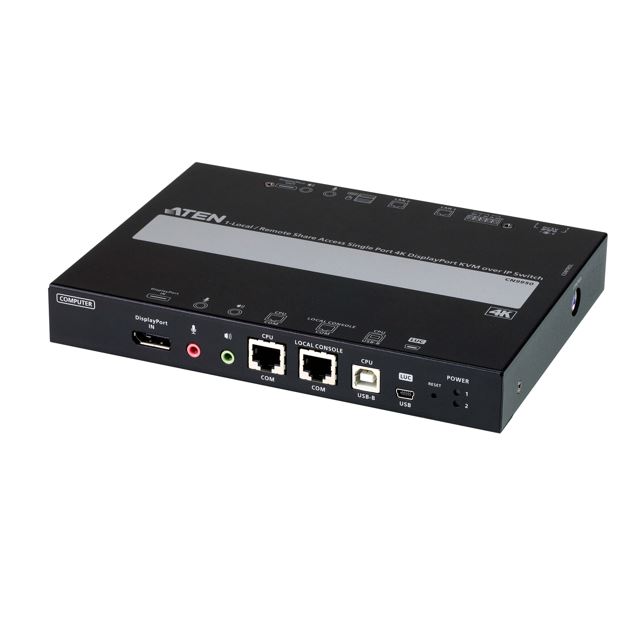

ATEN 1-Local/Remote Share Access Single Port 4K DisplayPort KVM over IP Switch, 4096 x 2160 pixels, Ethernet LAN, 4K Ultra HD, 9.76 W, Black
ATEN 1-Local/Remote Share Access Single Port 4K DisplayPort KVM over IP Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 30 Hz. Product colour: Black, Housing material: Metal. Power source: DC, Input voltage: 5 V, Power consumption (typical): 9.76 W. Width: 149.3 mm, Depth: 200 mm, Height: 28.5 mm
| Ports & interfaces | |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 2 |
| USB 2.0 Type-B ports quantity | 1 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| Console USB ports quantity | 2 |
| USB connector type | Mini-USB B |
| PS/2 ports quantity | 1 |
| Serial port type | RJ-45 |
| Serial ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 2 |
| Number of microphone inputs | 2 |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 |
| Video bandwidth | 30 |
| Design | |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Display | |
| Built-in display | No |
| Power | |
| Power source | DC |
| Input voltage | 5 |
| Power consumption (typical) | 9.76 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 0 - 80 |
| Weight & dimensions | |
| Width | 149.3 |
| Depth | 200 |
| Height | 28.5 |
| Weight | 1.25 |
| Packaging data | |
| Package width | 98 |
| Package depth | 325 |
| Package height | 210 |
| Package weight | 1.67 |
| Packaging content | |
| Cables included | DisplayPort, USB, USB Type-A to USB Type-B |
| Manual | Yes |
| AC adapter included | Yes |
| Logistics data | |
| Master (outer) case net weight | 6.25 |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 342 |
| Master (outer) case length | 512 |
| Master (outer) case height | 232 |
| Master (outer) case gross weight | 8.98 |
| Products per master (outer) case | 5 |
Specifications
| Brand | Aten |
