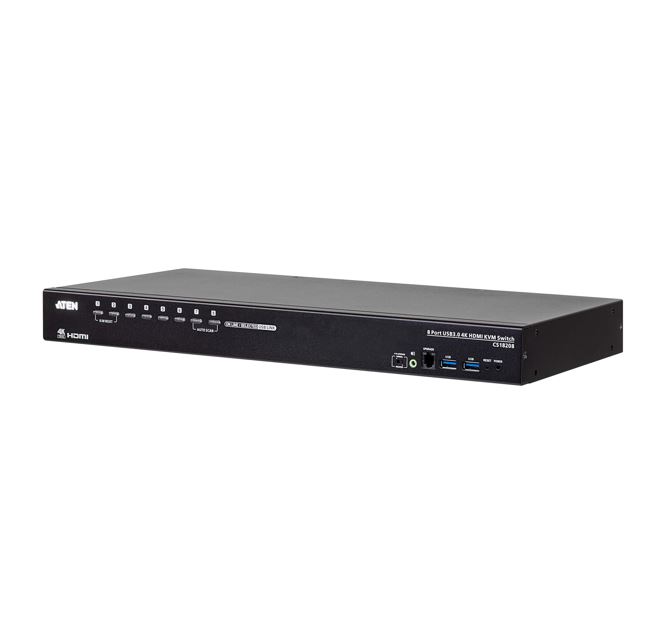

ATEN 8-Port USB 3.0 4K HDMI KVM Switch, 4096 x 2160 pixels, 4K Ultra HD, 9.77 W, Black
ATEN 8-Port USB 3.0 4K HDMI KVM Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: DC, Input voltage: 12 V, Power consumption (typical): 9.77 W. Width: 432.4 mm, Depth: 214.3 mm, Height: 44 mm
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 8 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 8 |
| Console ports | 3.5mm headphone, HDMI, USB A |
| Console USB ports quantity | 2 |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| Audio connections | Yes |
| Headphone outputs | 9 |
| Number of microphone inputs | 1 |
| DC-in jack | Yes |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 |
| Video bandwidth | 60 |
| Scan interval | 1,5,255 |
| Design | |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Display | |
| Built-in display | No |
| Power | |
| Power source | DC |
| Input voltage | 12 |
| Power consumption (typical) | 9.77 |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 0 - 80 |
| Storage relative humidity (H-H) | 0 - 80 |
| Weight & dimensions | |
| Width | 432.4 |
| Depth | 214.3 |
| Height | 44 |
| Weight | 3.94 |
| Packaging data | |
| Package width | 133 |
| Package depth | 499 |
| Package height | 324 |
| Package weight | 4.84 |
| Packaging content | |
| Quick installation guide | Yes |
| Manual | Yes |
| Logistics data | |
| Master (outer) case net weight | 11.8 |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 427 |
| Master (outer) case length | 519 |
| Master (outer) case height | 348 |
| Master (outer) case gross weight | 15.7 |
| Products per master (outer) case | 3 |
Specifications
| Brand | Aten |
