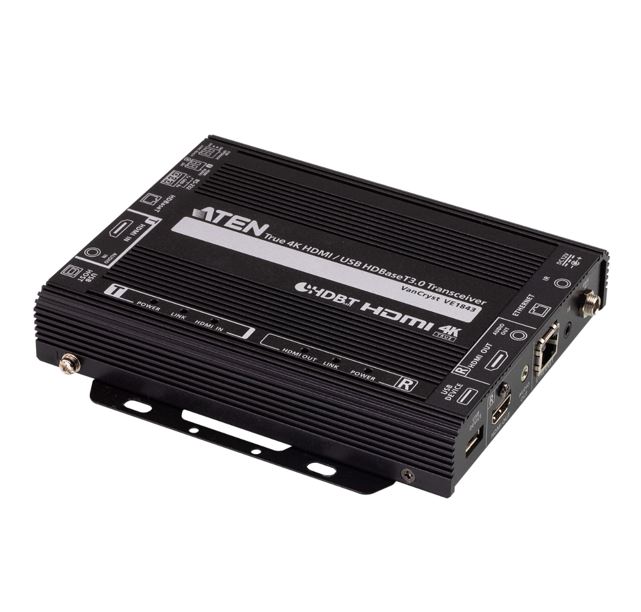

ATEN True 4K HDMI / USB HDBaseT 3.0 Transceiver, 4096 x 2160 pixels, AV repeater, 100 m, Wired, 3D, HDCP
ATEN True 4K HDMI / USB HDBaseT 3.0 Transceiver. Type: AV repeater, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat6a. Connectivity technology: Wired, USB connector type: USB Type-A, USB Type-B, Serial interface type: RS-232. Width: 150.9 mm, Depth: 171.5 mm, Height: 30 mm. Package width: 95 mm, Package depth: 265 mm, Package height: 220 mm. Cables included: USB
| Features | |
|---|---|
| Type | AV repeater |
| Maximum resolution | 4096 x 2160 |
| Cable types supported | Cat6a |
| Maximum transfer distance | 100 |
| Maximum refresh rate | 240 |
| Front panel control (RX) | Yes |
| Front panel control (TX) | Yes |
| Infrared (IR) frequency range | 30 - 56 |
| LED indicators | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1400 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160 |
| Bandwidth | 600 |
| HDCP | Yes |
| Material | Metal |
| 3D | Yes |
| Impedance | 100 |
| Rubber feet | Yes |
| HDCP version | 2.2 |
| Product colour | Black |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDBaseT port | Yes |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| USB ports quantity | 2 |
| USB version | 2.0 |
| USB connector type | USB Type-A, USB Type-B |
| Audio input | 1 |
| Audio output | 1 |
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| Remote (IR) input | 1 |
| DC-in jack | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 0 - 80 |
| Weight & dimensions | |
| Width | 150.9 |
| Depth | 171.5 |
| Height | 30 |
| Weight | 640 |
| Packaging data | |
| Package width | 95 |
| Package depth | 265 |
| Package height | 220 |
| Package weight | 1.4 |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | USB |
| IR emitter included | Yes |
| Manual | Yes |
| IR receiver included | Yes |
| Technical details | |
| Country of origin | Taiwan |
| Package volume | 5663.37 |
| Logistics data | |
| Master (outer) case width | 232 |
| Master (outer) case length | 500 |
| Master (outer) case height | 283 |
| Master (outer) case gross weight | 7.55 |
| Master (outer) case volume | 32847.54 |
| Master (outer) case net weight | 5.87 |
| Products per master (outer) case | 5 |
Specifications
| Brand | Aten |
