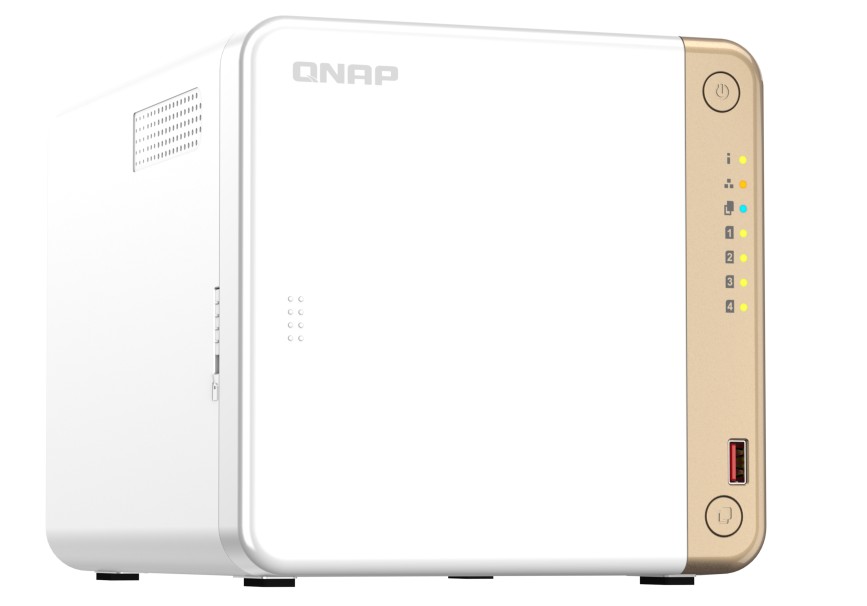

QNAP TS-462-4G, NAS, Tower, Intel® Celeron®, N4505, 4 GB, DDR4
QNAP TS-462-4G. Type: NAS. Chassis type: Tower. Device class: Home & Home Office. Processor family: Intel® Celeron®, Processor model: N4505, Processor frequency: 2 GHz. Internal memory: 4 GB, Internal memory type: DDR4. Total installed storage capacity: 0 TB. Operating system installed: QNAP QTS
| Storage | |
|---|---|
| Storage drive capacity | 0 |
| Supported storage drive interfaces | Serial ATA III |
| Storage drive sizes supported | 3.5,M.2,2.5 |
| Number of M.2 (M & B) slots | 2 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| RAID rebuild | Yes |
| Hot-swap drive bays | Yes |
| Supported file systems | FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| Storage drives installed | No |
| Total installed storage capacity | 0 |
| Number of storage drives supported | 4 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Bad block scan | Yes |
| Disk roaming | Yes |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | N4505 |
| Processor frequency | 2 |
| Processor boost frequency | 2.9 |
| Processor cores | 2 |
| Processor threads | 2 |
| CPU configuration (max) | 1 |
| Number of processors supported | 1 |
| On-board graphics card model | Intel® UHD Graphics |
| Memory | |
| Internal memory | 4 |
| Internal memory type | DDR4 |
| Maximum RAM supported | 16 |
| Memory slots | 2 |
| Memory form factor | SO-DIMM |
| Flash memory | 4000 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 |
| DHCP server | Yes |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |
| Dynamic DNS (DDNS) | Yes |
| Ports & interfaces | |
| USB port | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Design | |
| Chassis type | Tower |
| Cooling type | Active |
| Product colour | White |
| Number of fans | 1 |
| Fan diameter | 12 |
| LED indicators | HDD, LAN, Power, Status, USB |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Performance | |
| Type | NAS |
| Device class | Home & Home Office |
| Backup function | Yes |
| Backup features | Cloud, iSCSI LUN |
| Buzzer | Yes |
| Multilingual support | Yes |
| Snapshot | Yes |
| Security algorithms | 256-bit AES, FIPS 140-2, HTTPS, SSH |
| Access Control List (ACL) | Yes |
| Reset button | Yes |
| On/off switch | Yes |
| Built-in FTP server | Yes |
| Browser supported | Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox |
| System log | Yes |
| Hot spare | Yes |
| Password authentication | Yes |
| Disk scan | Yes |
| S.M.A.R.T. support | Yes |
| Share folder | Y |
| USB copy function | Yes |
| Software | |
| Operating system installed | QNAP QTS |
| Operating system version | 5.0.1 |
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Power | |
| Power supply location | External |
| Power supply unit (PSU) capacity | 90 |
| Number of power supply units | 1 |
| Power consumption (typical) | 25.98 |
| Power consumption (sleep) | 11.3 |
| AC input voltage | 100 - 240 |
| Fan voltage | 12 |
| Weight & dimensions | |
| Width | 170 |
| Depth | 226 |
| Height | 168 |
| Weight | 2.26 |
| Package weight | 3.6 |
| Packaging content | |
| Cables included | AC, LAN (RJ-45) |
| Power cables quantity | 1 |
| Processor special features | |
| Enhanced Intel SpeedStep Technology | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Trusted Execution Technology | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Operating relative humidity (H-H) | 5 - 95 |
| Storage temperature (T-T) | -20 - 70 |
| Storage relative humidity (H-H) | 5 - 95 |
