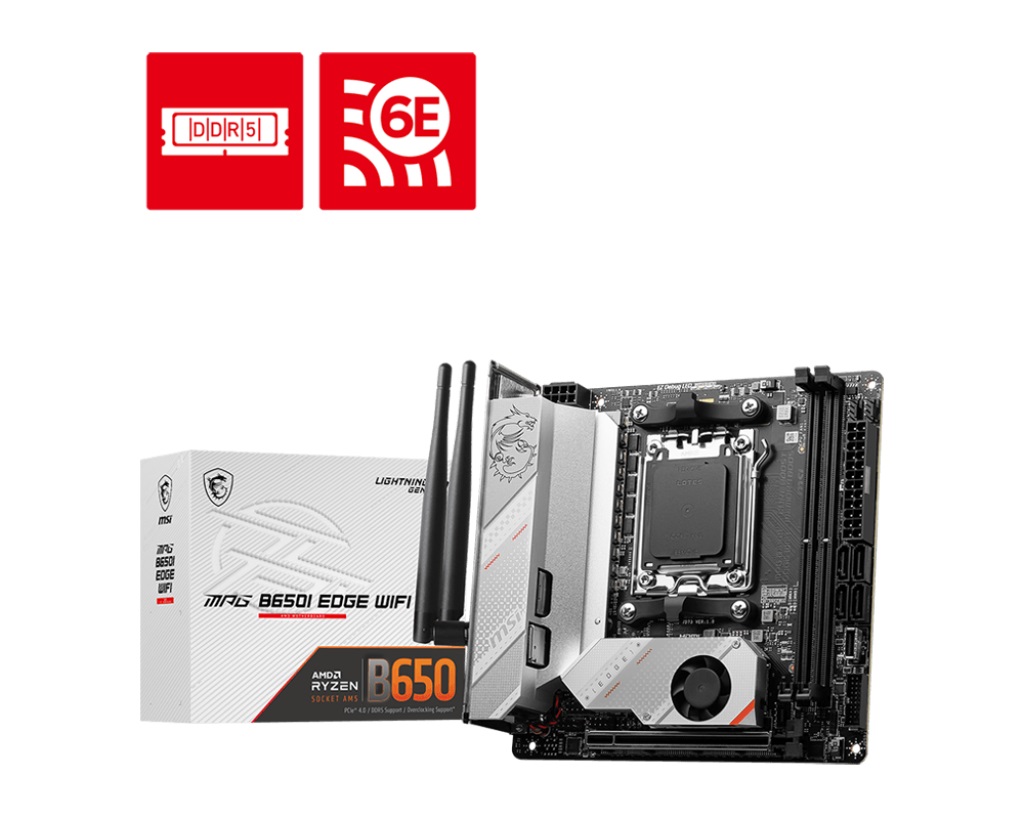

MSI MPG B650I EDGE WIFI, AMD, Socket AM5, AMD Ryzen 7000 Series, Socket AM5, DDR5-SDRAM, 64 GB
MSI MPG B650I EDGE WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 64 GB, ECC сompatibility: Non-ECC. Supported storage drive interfaces: M.2, SATA, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125B, Top Wi-Fi standard: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: mini ATX, Motherboard chipset family: AMD
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series |
| Supported processor sockets | Socket AM5 |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400 |
| Maximum internal memory | 64 |
| Storage controllers | |
| Supported storage drive interfaces | M.2, SATA |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Graphics | |
| On-board graphics card | No |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125B |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Features | |
| Motherboard chipset | AMD B650 |
| Audio chip | Realtek ALC4080 |
| Audio output channels | 7.1 |
| Product colour | Aluminium, Black |
| PC health monitoring | Fan |
| Component for | PC |
| Motherboard form factor | mini ATX |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 10 x64 |
| Expansion slots | |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| Weight & dimensions | |
| Width | 170 |
| Depth | 170 |
Specifications
| Brand | AMD |
