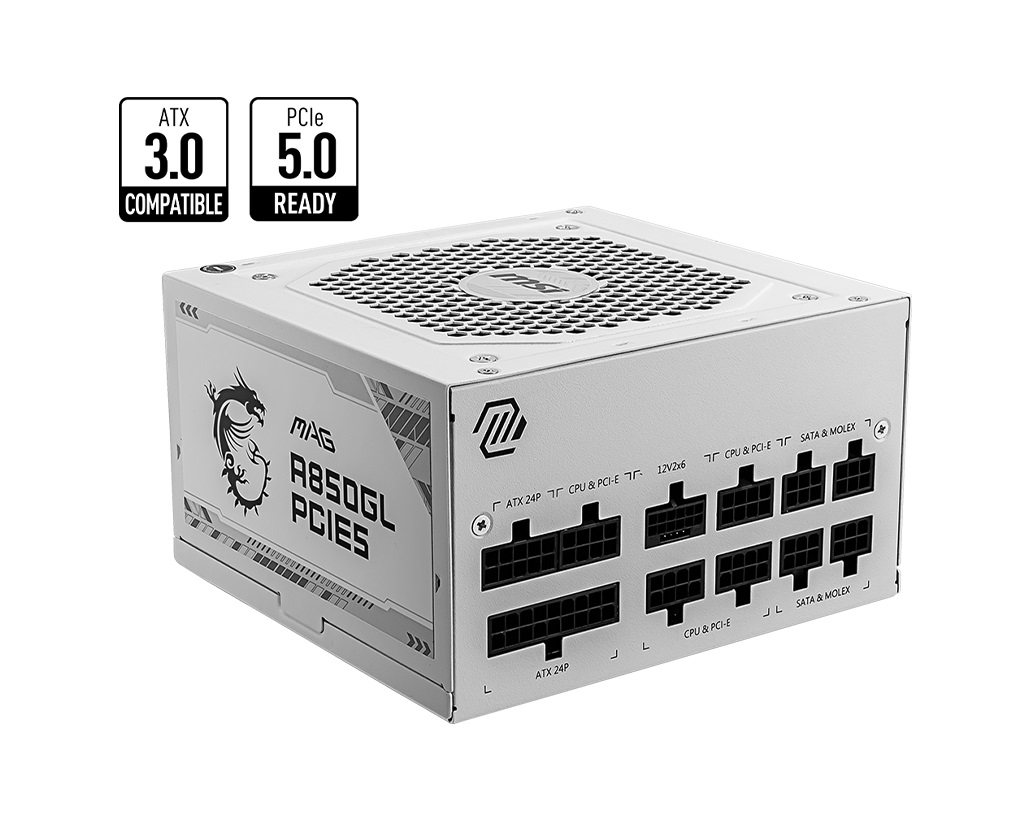

4711377115391 MSI MAG A850GL PCIE5 WHITE 850W Up to 90% (80 Plus Gold) ATX Power Supply Unit, PFC, 100~240 VAC, 850W, 47-63Hz, PCI-E, SATA, FDD

4711377115391 MSI MAG A850GL PCIE5 WHITE 850W Up to 90% (80 Plus Gold) ATX Power Supply Unit, PFC, 100~240 VAC, 850W, 47-63Hz, PCI-E, SATA, FDD

(0 review)

Product Code: 4711377115391

MSI MAG A850GL PCIE5 WHITE 850W Up to 90% (80 Plus Gold) ATX Power Supply Unit, PFC, 100~240 VAC, 850W, 47-63Hz, PCI-E, SATA, FDD
EFFICIENCY RATING 80 PLUS Gold (up to 90%)
MODULAR Yes (full modular)
FAN SIZE 120 mm
FAN BEARING Fluid Dynamic Bearing
DIMENSIONS (DXWXH) 140 x 150 x 86 mm
PFC TYPE Active PFC
INPUT VOLTAGE RANGE 100~240 VAC
POWER WATT 850W
POWER EXCURSION 1700W (*up to 200% of the PSU's rated power for 100μs)
INPUT FREQUENCY RANGE 47-63Hz
PROTECTION OCP / OVP / OPP / OTP / SCP / UVP
ATX (24 PIN) 1
EPS (4+4 PIN) 2
PCI-E 5.0 (16 PIN) 1 (600W)
PCI-E (6+2 PIN) 4
SATA (15 PIN) 8
MOLEX (4 PIN) 4
FDD (4 PIN) 1

$ 215.00 $ 215.00 (Tax excluded)

  • Brand
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

MSI MAG A850GL PCIE5 WHITE, 850 W, 100 - 240 V, 47 - 63 Hz, 8 A, 4 A, Active

MSI MAG A850GL PCIE5 WHITE. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Package type: Box

Power
Total power850
AC input voltage100 - 240
AC input frequency47 - 63
Maximum input current (@110V)8
Maximum input current (@220V)4
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)110
Combined power (+12V)846
Combined power (+5V)110
Combined power (-12V)3.6
Combined power (+5Vsb)12.5
Max output current (+3.3V)20
Max output current (+12V)70.5
Max output current (+5V)20
Max output current (-12V)0.3
Max output current (+5Vsb)2.5
Efficiency90
Power protection featuresOver current, Over power, Over voltage, Overheating, Short circuit
Ports & interfaces
Motherboard power connector20+4 pin ATX
Motherboard power cable length60
Number of SATA power connectors8
Peripheral (Molex) power connectors (4-pin)4
EPS power connector (8-pin)No
EPS power connector (4+4 pin)Yes
PCI Express power connectors (6+2 pin)4
CPU power connector (4+4 pin)Yes
ATX Power connector (24-pin)No
ATX power connector (20+4 pin)No
Cabling typeFully-Modular
Performance
80 PLUS certification80 PLUS Gold
PurposePC
Power supply unit (PSU) form factorATX
Design
Product colourWhite
Cooling typeActive
Fan diameter12
Number of fans1
IlluminationNo
On/off switchYes
Packaging data
Package typeBox
Logistics data
Harmonized System (HS) code84733020

Specifications

Brand MSI
