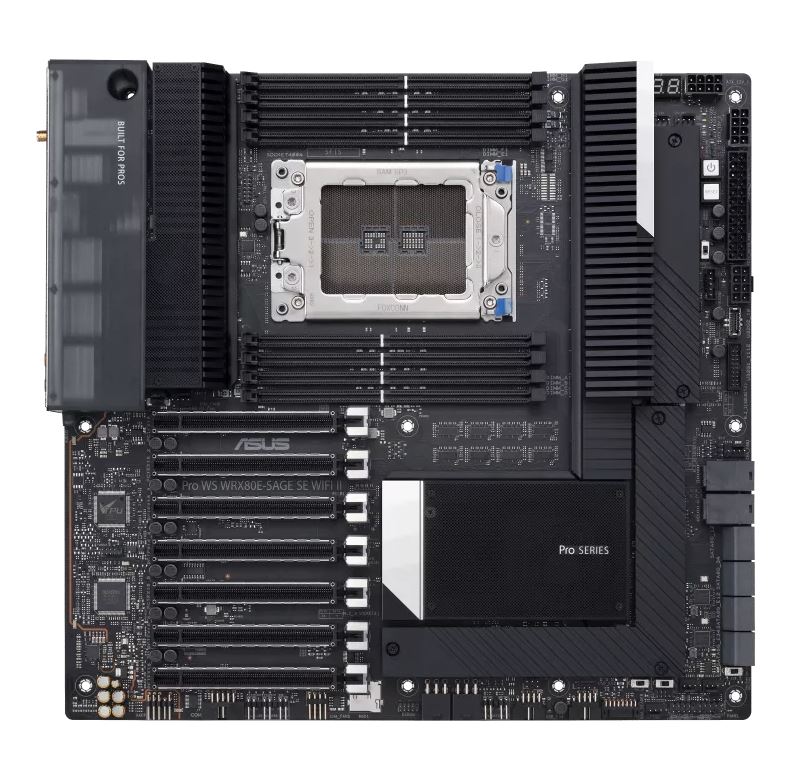

ASUS Pro WS WRX80E-SAGE SE WIFI II, AMD, Socket sWRX8, AMD Ryzen Threadripper PRO 3000 WX-Series, Socket sWRX8, DDR4-SDRAM, 2 TB
ASUS Pro WS WRX80E-SAGE SE WIFI II. Processor manufacturer: AMD, Processor socket: Socket sWRX8, Compatible processor series: AMD Ryzen Threadripper PRO 3000 WX-Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 2 TB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Parallel processing technology support: 2-Way SLI, 3-Way SLI, 4-Way SLI. Ethernet interface type: 10 Gigabit Ethernet, LAN controller: Intel® X550-AT2, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket sWRX8 |
| Compatible processor series | AMD Ryzen Threadripper PRO 3000 WX-Series |
| Supported processor sockets | Socket sWRX8 |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory channels | Octa-channel |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 2 |
| Unbuffered memory | Yes |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | 2-Way SLI, 3-Way SLI, 4-Way SLI |
| On-board graphics card | No |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 8 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 6 |
| EPS power connector (8-pin) | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| Rear panel I/O ports | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 8 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| WiFi-AP antenna jack | 1 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| LAN controller | Intel® X550-AT2 |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Features | |
| Motherboard chipset | AMD WRX80 |
| Audio chip | Realtek ALC4080 |
| Audio output channels | 7.1 |
| Product colour | Black |
| Component for | Workstation |
| Motherboard form factor | Extended ATX |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 7 |
| Number of M.2 (M) slots | 3 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 |
| Clear CMOS button | Yes |
| Weight & dimensions | |
| Width | 309.8 |
| Depth | 330.2 |
| Packaging content | |
| Cables included | SATA |
