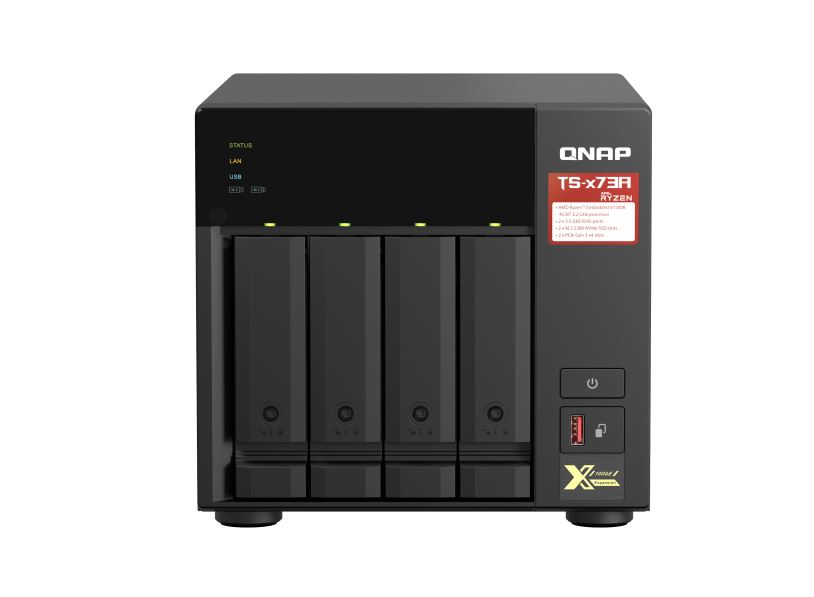

QNAP TS-473A, NAS, Tower, Ryzen Embedded, V1500B, 8 GB, DDR4
QNAP TS-473A. Type: NAS. Chassis type: Tower. Device class: Small & Medium Business. Processor family: Ryzen Embedded, Processor model: V1500B, Processor frequency: 2.2 GHz. Internal memory: 8 GB, Internal memory type: DDR4. Total installed storage capacity: 0 TB. Operating system installed: QNAP Turbo System
| Storage | |
|---|---|
| Storage drive capacity | 0 |
| Storage drive interface | Serial ATA III |
| Supported storage drive interfaces | M.2, Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5,M.2 |
| Number of system drives installed | 1 |
| System drive capacity | 5 |
| Number of M.2 (M & B) slots | 2 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| RAID rebuild | Yes |
| Hot-swap drive bays | Yes |
| Storage drives installed | No |
| Total installed storage capacity | 0 |
| Number of storage drives supported | 4 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Processor | |
| Processor manufacturer | AMD |
| Processor generation | AMD Ryzen Embedded V1000 Series |
| Processor family | Ryzen Embedded |
| Processor model | V1500B |
| Processor frequency | 2.2 |
| Processor cores | 4 |
| Processor threads | 8 |
| On-board graphics card model | Not available |
| Memory | |
| Internal memory | 8 |
| Internal memory type | DDR4 |
| Maximum RAM supported | 64 |
| Memory slots | 2 |
| Memory form factor | SO-DIMM |
| ECC | Yes |
| Flash memory | 5000 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000,2500 |
| DHCP server | Yes |
| Jumbo frames support | Yes |
| Wake-on-LAN ready | Yes |
| Dynamic DNS (DDNS) | Yes |
| Ports & interfaces | |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 2 |
| Concurrent connections | 2000 |
| PCI Express x4 (Gen 3.x) slots | 2 |
| Design | |
| Chassis type | Tower |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 2 |
| Fan diameter | 12 |
| Fan diameter 2 | 6 |
| Drive bay locking | Yes |
| LED indicators | LAN, Power, SSD, Status, USB |
| Performance | |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud, USB drive, iSCSI LUN |
| Buzzer | Yes |
| Noise level | 21.4 |
| Security algorithms | 256-bit AES, FIPS 140-2, SSH, SSL/TLS |
| Reset button | Yes |
| On/off switch | Yes |
| Built-in FTP server | Yes |
| Browser supported | Mozilla Firefox, Microsoft Edge, Google Chrome, Apple Safari |
| Password authentication | Yes |
| Disk scan | Yes |
| S.M.A.R.T. support | Yes |
| Remotely operated | Yes |
| Software | |
| Operating system installed | QNAP Turbo System |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Power | |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 250 |
| Number of power supply units | 1 |
| Power consumption (typical) | 29.792 |
| Power consumption (HDD standby) | 19.576 |
| AC input voltage | 100 - 240 |
| AC input frequency | 50-60 |
| Output current | 3.5 |
| Weight & dimensions | |
| Width | 199.3 |
| Depth | 279.6 |
| Height | 188.2 |
| Weight | 5.03 |
| Package width | 255 |
| Package depth | 383 |
| Package height | 345 |
| Package weight | 6.12 |
| Packaging content | |
| Cables included | AC, LAN (RJ-45) |
| Power cables quantity | 1 |
| Number of screws | 24 |
| Package type | Box |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Operating relative humidity (H-H) | 5 - 95 |
| Storage temperature (T-T) | -20 - 70 |
| Storage relative humidity (H-H) | 5 - 95 |
| Logistics data | |
| Harmonized System (HS) code | 84714100 |
| Other features | |
| Warranty period | 2 |
Specifications
| Brand | QNAP |
