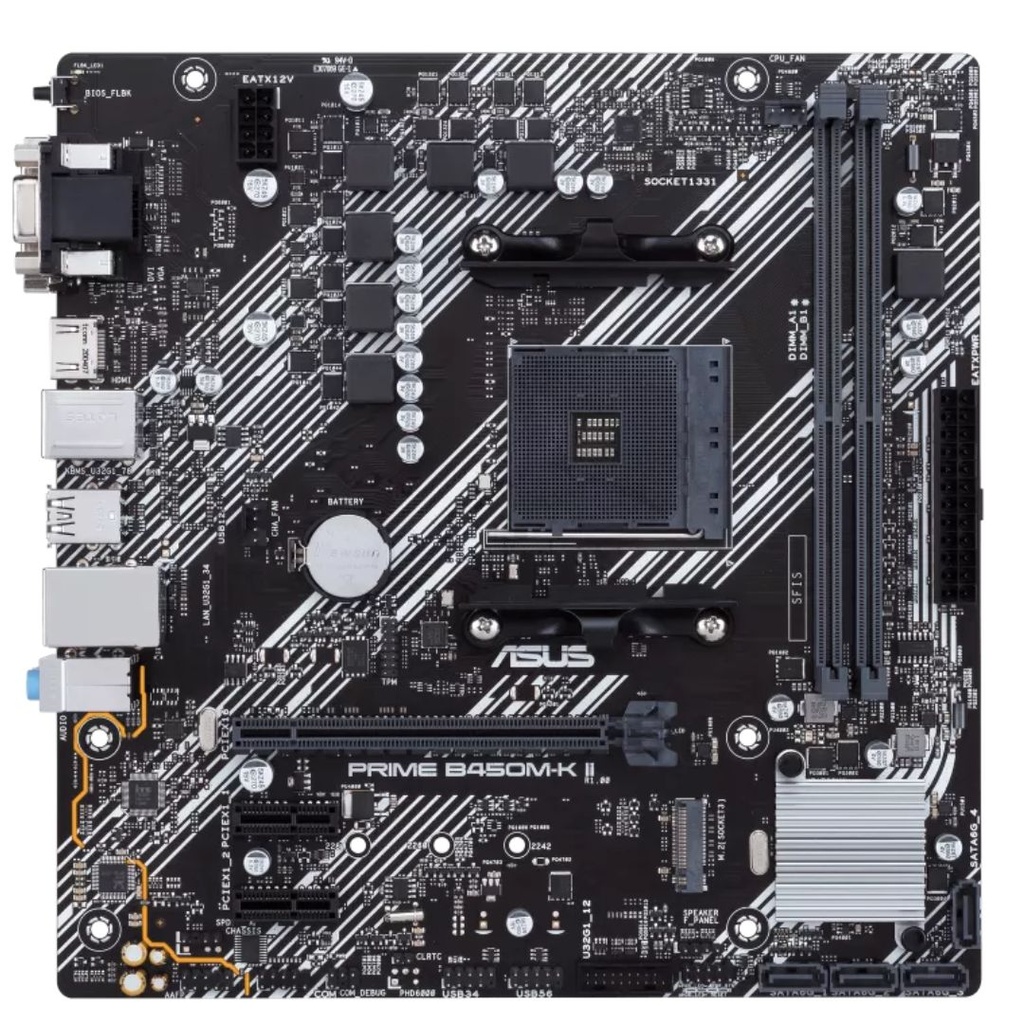

ASUS Prime B450M-K II, AMD, Socket AM4, AMD Ryzen 2000 Series, AMD Ryzen Threadripper 1000 Series, AMD Ryzen Threadripper 2000 Series, DDR4-SDRAM, 64 GB, DIMM
ASUS Prime B450M-K II. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 2000 Series, AMD Ryzen Threadripper 1000 Series, AMD Ryzen Threadripper 2000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III, RAID levels: 0, 1, 10. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 2000 Series, AMD Ryzen Threadripper 1000 Series, AMD Ryzen Threadripper 2000 Series |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200 |
| Maximum internal memory | 64 |
| Unbuffered memory | Yes |
| Storage controllers | |
| Supported storage drive interfaces | M.2, PCI Express 3.0, SATA III |
| RAID levels | 0, 1, 10 |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Audio connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Features | |
| Motherboard chipset | AMD B450 |
| Audio chip | Realtek ALC887-VD2 |
| Audio output channels | 7.1 |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 10 x64, Windows 7 x64 |
| Expansion slots | |
| PCI Express x1 (Gen 2.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 |
| ACPI version | 6.1 |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
| Width | 244 |
| Depth | 244 |
| Height | 259 |
| Packaging content | |
| Cables included | SATA |
| Bundled software | Armoury Crate, AI Suite 3, Performance and Power, Saving Utility, TurboV EVO, EPU, DIGI+ VRM, Fan Xpert, PC Cleaner, EZ update, System Information, ASUS CPU-Z, AI Charger, ASUS EZ Installer, DAEMON Tools, Norton Anti-virus software (Free Trial for 60 days), WinRAR, UEFI BIOS, ASUS EZ DIY, ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Other features | |
| Weight | 840 |
Specifications
| Brand | Asus |
