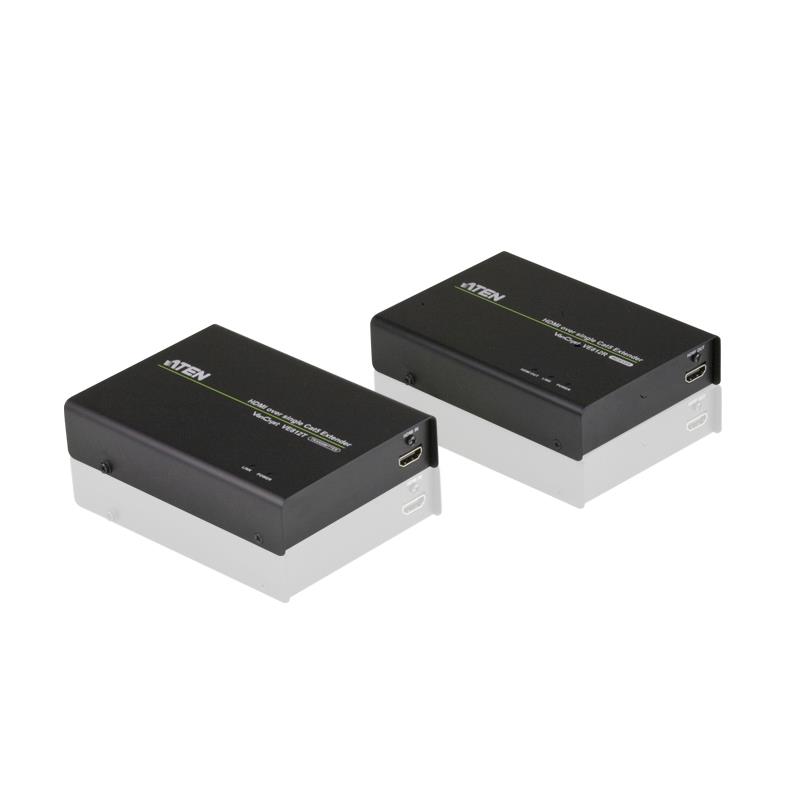

ATEN HDMI Extender over 1 CAT5e/6 Cable (100m) ,4Kx2K, 3 level cascadable / HDBaseT, 4000 x 2000 pixels, AV transmitter & receiver, 100 m, Black
ATEN HDMI Extender over 1 CAT5e/6 Cable (100m) ,4Kx2K, 3 level cascadable / HDBaseT. Type: AV transmitter & receiver, Maximum resolution: 4000 x 2000 pixels, Cable types supported: Cat5e. Operating voltage: 5.3 V. Receiver dimensions (WxDxH): 103 x 141.7 x 30 mm, Receiver weight: 400 g, Transmitter dimensions (WxDxH): 103 x 141.7 x 30 mm
| Features | |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 4000 x 2000 |
| Cable types supported | Cat5e |
| Maximum transfer distance | 100 |
| LED indicators | Yes |
| Supported video modes | 1080p |
| Product colour | Black |
| Ports & interfaces | |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| DC-in jack | Yes |
| Power | |
| Operating voltage | 5.3 |
| External power adapter | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 0 - 80 |
| Weight & dimensions | |
| Receiver dimensions (WxDxH) | 103 x 141.7 x 30 |
| Receiver weight | 400 |
| Transmitter dimensions (WxDxH) | 103 x 141.7 x 30 |
| Transmitter weight | 400 |
| Technical details | |
| Compliance certificates | RoHS |
Specifications
| Brand | Aten |
