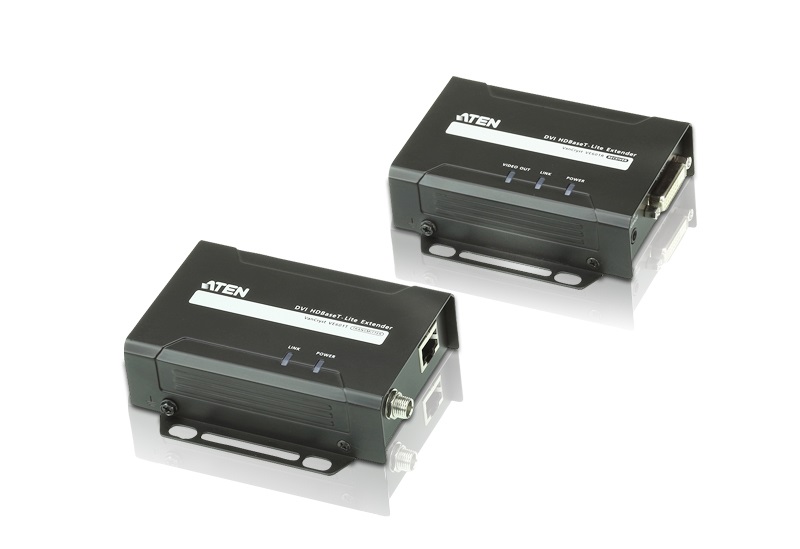

4719264643408 Aten HDBaseT DVI-D Lite Video Extender - Up to 4K@35m or 70m (CAT 6A) Max (PROJECT)

4719264643408 Aten HDBaseT DVI-D Lite Video Extender - Up to 4K@35m or 70m (CAT 6A) Max (PROJECT)

(0 review)

Product Code: 4719264643408

The VE601 DVI HDBaseT-Lite Extender is able to extend a DVI 1080p display up to 70 m using a Cat 5e/6 cable. This combination of ATEN and HDBaseT technology even supports sharing 4K media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation. The VE601 DVI HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, not to mention slip-resistant DC Jack lock mechanism, the VE601 can be installed nearly anywhere while ensuring peace of mind with its unerring reliability.

$ 359.00 $ 359.00 (Tax excluded)

  • Brand
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN VE601, 1920 x 1200 pixels, AV transmitter & receiver, 70 m, Black, HDCP

ATEN VE601. Type: AV transmitter & receiver, Maximum resolution: 1920 x 1200 pixels, Cable types supported: Cat5e, Cat6, Cat6a. AC input frequency: 60 Hz, Operating voltage: 5 V, Power consumption (transmitter) (max): 1.85 W. Receiver dimensions (WxDxH): 87 x 103 x 30 mm, Receiver weight: 250 g, Transmitter dimensions (WxDxH): 87 x 103 x 30 mm

Features
TypeAV transmitter & receiver
Maximum resolution1920 x 1200
Cable types supportedCat5e, Cat6, Cat6a
Maximum transfer distance70
Supported graphics resolutions1920 x 1200 (WUXGA)
Bandwidth340
HDCPYes
MaterialMetal
Impedance100
Product colourBlack
Ports & interfaces
DVI input ports1
DVI output ports1
DC-in jackYes
Power
AC input frequency60
Operating voltage5
Power consumption (transmitter) (max)1.85
Power consumption (receiver) (max)4.23
Operational conditions
Operating temperature (T-T)0 - 50
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Weight & dimensions
Receiver dimensions (WxDxH)87 x 103 x 30
Receiver weight250
Transmitter dimensions (WxDxH)87 x 103 x 30
Transmitter weight250
Packaging content
ManualYes

Specifications

Brand Aten
