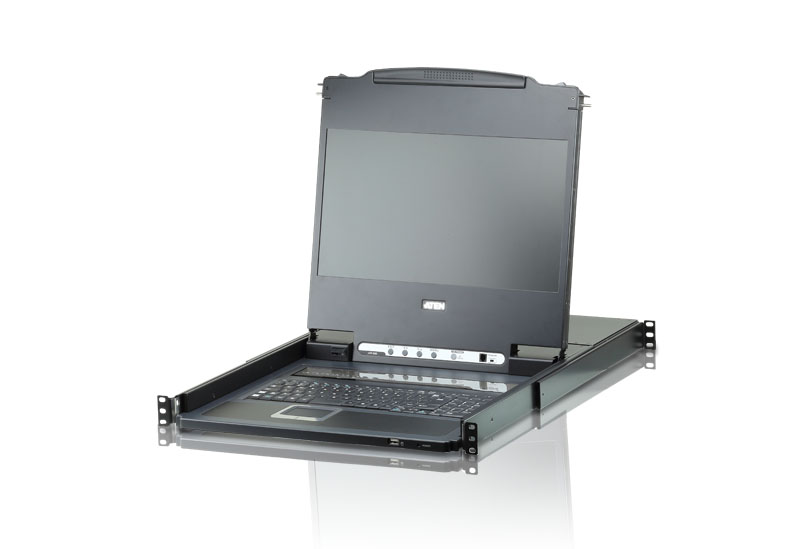

ATEN 8-Port 17.3" DVI Full HD LCD KVM Switch (USB), 43.9 cm (17.3"), 1920 x 1080 pixels, LCD, 250 cd/m², 800:1, 170°
ATEN 8-Port 17.3" DVI Full HD LCD KVM Switch (USB). Display diagonal: 43.9 cm (17.3"), Display resolution: 1920 x 1080 pixels, Display: LCD. DVI connector type: DVI-I, Keyboard port type: USB, Mouse port type: USB. Keyboard language: US English, Keyboard layout: QWERTY. Power consumption (typical): 29.26 W, AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz. Width: 689.2 mm, Height: 44 mm, Depth: 480 mm
| Display | |
|---|---|
| Display diagonal | 43.9 |
| Display resolution | 1920 x 1080 |
| Display | LCD |
| Display brightness | 250 |
| Contrast ratio (typical) | 800:1 |
| Viewing angle, horizontal | 170 |
| Viewing angle, vertical | 170 |
| On Screen Display (OSD) | Yes |
| Pixel pitch | 0.199 x 0.199 |
| Aspect ratio | 16:9 |
| Display type | TFT |
| Response time | 16 |
| Supported resolutions | up to 1920 x 1200 @ 60 Hz (all resolution @ 60 Hz only); 1920 x 1080 @ 60 Hz, DDC2B |
| Technical details | |
| Material | Metal, Plastic |
| Product colour | Black |
| Hot-Plug support | Yes |
| Operating relative humidity (H-H) | 0 - 80 |
| Built-in KVM switch | Yes |
| Maximum resolution | 1920 x 1200 |
| Rack mounting | Yes |
| Number of computers controlled | 64 |
| On/off switch | Yes |
| LED indicators | Yes |
| Push button | Yes |
| Compliance certificates | RoHS |
| Rack capacity | 1U |
| Ports & interfaces | |
| 3.5 mm (1/8-inch) out | Yes |
| 3.5 mm (1/8-inch) in | Yes |
| DVI connector type | DVI-I |
| DVI input ports | 1 |
| DVI output ports | 8 |
| I/O ports | 1x RJ-11 |
| Keyboard port type | USB |
| Mouse port type | USB |
| USB 2.0 Type-A ports quantity | 3 |
| USB 2.0 Type-B ports quantity | 8 |
| Keyboard | |
| Built-in touchpad | Yes |
| Keyboard language | US English |
| Keyboard layout | QWERTY |
| Hot keys | Yes |
| Power | |
| Power consumption (typical) | 29.26 |
| AC adapter input voltage | 100 - 240 |
| AC adapter frequency | 50/60 |
| Input current | 1 |
| AC (power) in | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 60 |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other operating systems supported | Yes |
| Weight & dimensions | |
| Width | 689.2 |
| Height | 44 |
| Depth | 480 |
| Weight | 12.7 |
| Packaging content | |
| Cables included | AC, KVM |
| Quick installation guide | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Rack mount kit | Yes |
Specifications
| Brand | Aten |
