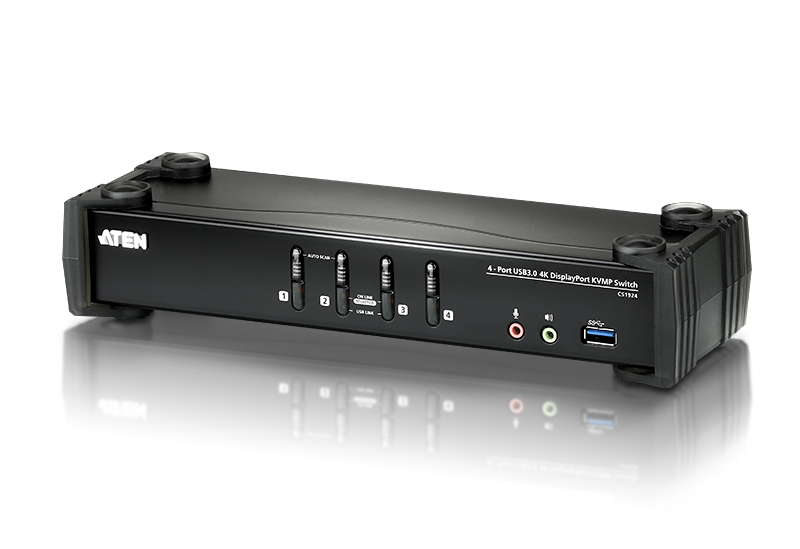

ATEN 4-Port USB 3.1 Gen 1 4K DisplayPort 1.2 KVMP™ Switch with Audio (KVM cables included), 4096 x 2160 pixels, Black
ATEN 4-Port USB 3.1 Gen 1 4K DisplayPort 1.2 KVMP™ Switch with Audio (KVM cables included). Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. Maximum resolution: 4096 x 2160 pixels, Maximum digital resolution: 4096 x 2160 pixels, Scan interval: 1,5,10,15,20,25,30,35,40,45,50,55,60,70,80,90,99 s. Product colour: Black, Housing material: Metal, Plastic, LED indicators: Activity, Link. Windows operating systems supported: Windows 10 Home, Windows 2000, Windows 7 Home Premium, Windows 8, Windows 8.1, Windows Vista Home..., Linux operating systems supported: RedHat EL Linux 6.0, RedHat EL Linux 7.0, SuSE Linux 10, SuSE Linux 10.2, SuSE Linux 10.3, SuSE..., Mac operating systems supported: Mac OS 9.0, Mac OS 9.1, Mac OS 9.2, Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10.... Compliance certificates: RoHS
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Display connection | Yes |
| Console ports | USB A |
| Console USB ports quantity | 2 |
| USB hub | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 6 |
| USB connector type | USB Type-A, USB Type-B |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Audio connections | Yes |
| Headphone outputs | 6 |
| Number of microphone inputs | 6 |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | No |
| Performance | |
| Maximum resolution | 4096 x 2160 |
| Maximum digital resolution | 4096 x 2160 |
| Scan interval | 1,5,10,15,20,25,30,35,40,45,50,55,60,70,80,90,99 |
| HDCP | Yes |
| Hot-Plug support | Yes |
| Audio channels | 2.1 |
| Design | |
| Product colour | Black |
| Housing material | Metal, Plastic |
| LED indicators | Activity, Link |
| Push button | Yes |
| Display | |
| Built-in display | No |
| System requirements | |
| Windows operating systems supported | Windows 10 Home, Windows 2000, Windows 7 Home Premium, Windows 8, Windows 8.1, Windows Vista Home Premium, Windows XP Home |
| Linux operating systems supported | RedHat EL Linux 6.0, RedHat EL Linux 7.0, SuSE Linux 10, SuSE Linux 10.2, SuSE Linux 10.3, SuSE Linux 11, SuSE Linux 11.1, SuSE Linux 11.2, SuSE Linux 12.0, SuSE Linux 9.3 |
| Mac operating systems supported | Mac OS 9.0, Mac OS 9.1, Mac OS 9.2, Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 0 - 80 |
| Weight & dimensions | |
| Width | 88 |
| Depth | 270 |
| Height | 55.5 |
| Weight | 910 |
| Packaging content | |
| Cables included | Audio (3.5mm), DisplayPort, USB |
| Manual | Yes |
| AC adapter included | Yes |
| Other features | |
| Power requirements | 5V DC |
Specifications
| Brand | Aten |
