4719264645037 Aten Desktop KVMP Switch 2 Port Single Display DisplayPort w/ audio, Cables Included, 2x USB Port, Selection Via Front Panel

(0 review)

Product Code: 4719264645037

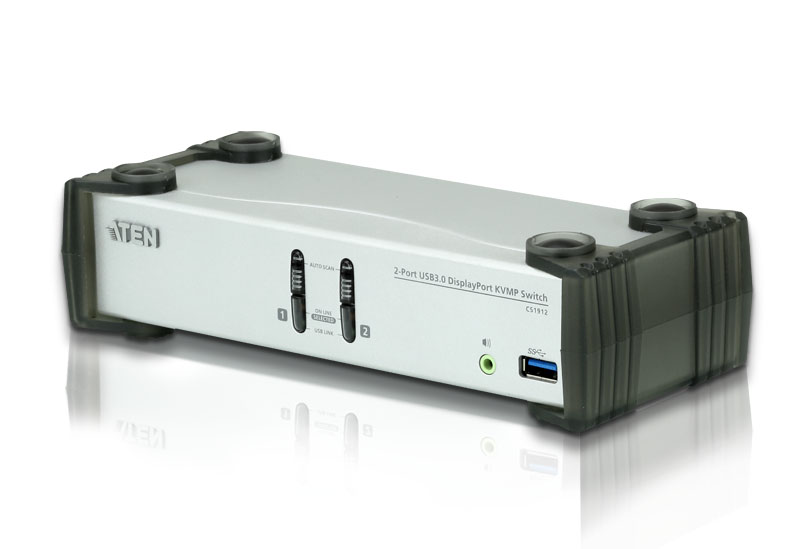

The ATEN CS1912 2-Port USB 3.0 DisplayPort KVMP™ Switch provides the latest innovations in desktop KVM switching technology to meet the increasing demand of higher video quality and file transfer rates on modern computers. The CS1912 provides superior resolutions up to 3840 x 2160 @ 30 Hz, a SuperSpeed USB 3.1 Gen 1 hub with 5 Gbps transfer rates and enhanced user-friendly operations.
As a KVM switch, the CS1912 gives users access to two DisplayPort computers from a single USB keyboard, USB mouse and monitor. To work with ease, the CS1912 provides three convenient switching methods – front panel pushbuttons, mouse and hotkeys for flexible and quick access to both computers.
ATEN’s unique independent switching feature allows the KVM control to focus on one computer while the USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer – such as a printer server, modem or splitter.
With its rich feature set, the CS1912 is designed to surpass all requirements for video post production, CAD design and applications that have a high demand for precise video clarity and large data transfer rates. The CS1912 allows you to share the audio from each computer and in HD quality when transmitted by the DisplayPort, to offer you an exciting sound experience.
*Note:
As is common with DisplayPort KVM switches, switching between KVM ports in an Extended Desktop setup may cause windows open on the extended desktop to be resized/repositioned back to a default configuration on the main display. This is due to the nature of the DisplayPort protocol and may require a manual readjustment.



399.00 399.00 (Tax excluded)

  • Brand
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN 2-Port USB 3.1 Gen 1 DisplayPort 1.1 KVMP™ Switch with Speaker (KVM cables included), 3840 x 2160 pixels, 4K Ultra HD, 2 W, Black, Grey

ATEN 2-Port USB 3.1 Gen 1 DisplayPort 1.1 KVMP™ Switch with Speaker (KVM cables included). Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Video bandwidth: 30 Hz. Product colour: Black, Grey, Housing material: Metal, Plastic. Power source: DC, Output voltage: 5 V, Power consumption (typical): 2 W. Compliance certificates: RoHS

Ports & interfaces
Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
DisplayPorts quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity2
Console portsDisplayPort, USB A
Console USB ports quantity2
USB hubYes
USB connector typeUSB Type-A, USB Type-B
Audio connectionsYes
Headphone outputs4
DC-in jackYes
Performance
HD type4K Ultra HD
Maximum resolution3840 x 2160
Video bandwidth30
Automatic switchingYes
Scan interval1,99
HDCPYes
Design
Rack mountingNo
Product colourBlack, Grey
Housing materialMetal, Plastic
LED indicatorsYes
Push buttonYes
Hot keysYes
Display
Built-in displayNo
Power
Power sourceDC
Output voltage5
Power consumption (typical)2
External power adapterYes
Sustainability
Compliance certificatesRoHS
Operational conditions
Operating temperature (T-T)0 - 50
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Weight & dimensions
Width88
Depth210
Height55.5
Weight1.36
Packaging data
Package width100
Package depth283
Package height173
Package weight1.77
Logistics data
Master (outer) case net weight6.8
Harmonized System (HS) code85176200
Master (outer) case width292
Master (outer) case length517
Master (outer) case height194
Master (outer) case gross weight9.35
Products per master (outer) case5

Specifications

Brand Aten
