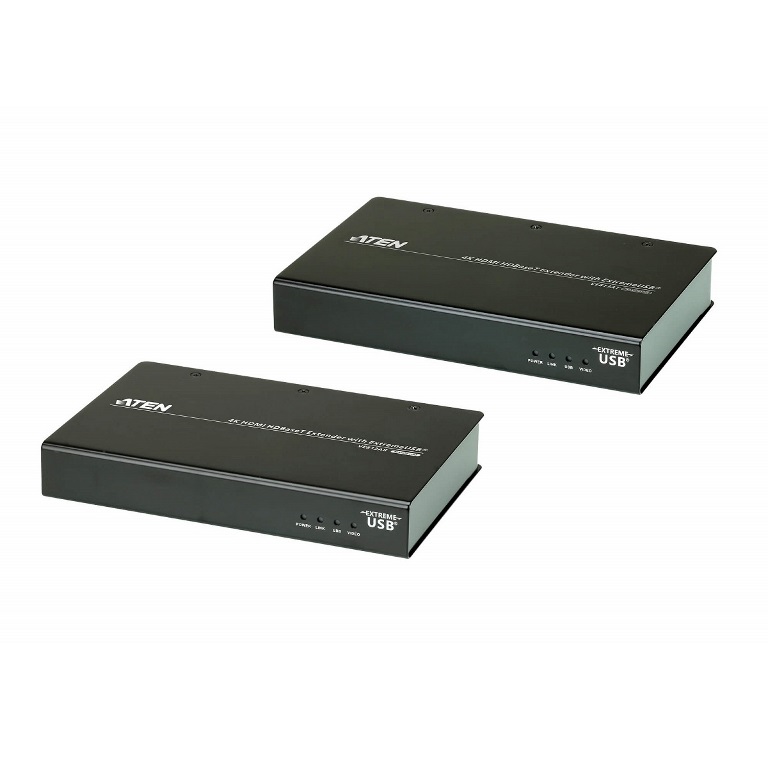

4719264645112 Aten HDBaseT HDMI Extender with ExtremeUSB - (1080p/4K to 100m)

4719264645112 Aten HDBaseT HDMI Extender with ExtremeUSB - (1080p/4K to 100m)

(0 review)

Product Code: 4719264645112

The VE813A HDMI HDBaseT Extender is an HDMI and USB Extender that supports HDBaseT and patented ExtremeUSB® technology. The VE813A can extend HDMI and USB 2.0 signals up to 100 meters from the HDMI source using a single Ethernet cable. The VE813A supports HDMI features such as 3D, Deep Colour, 4K, CEC and HDCP. It is equipped with USB connectors that provide touch panel control and file transfer functionality. The extender is also great for synchronising files and folders between portable and desktop computers. The superior display capability makes VE813A ideal for medical imaging and digital signage.

$ 1,799.00 $ 1,799.00 (Tax excluded)

  • Brand
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN HDMI HDBaseT Extender,4K2K & 1080p, with ExtremeUSB 2.0, up to 100m, AV transmitter & receiver, 100 m, Wired, 3D, Black, HDCP

ATEN HDMI HDBaseT Extender,4K2K & 1080p, with ExtremeUSB 2.0, up to 100m. Type: AV transmitter & receiver, Cable types supported: Cat5, Cat6, Cat6a, Cat7, Maximum transfer distance: 100 m. Connectivity technology: Wired, USB connector type: USB Type-A, USB Type-B. Operating voltage (transmitter): 5 V, Operating voltage (receiver): 5 V, Power consumption (typical): 5.75 W. Weight: 1.74 kg, Receiver dimensions (WxDxH): 116.1 x 182 x 28.7 mm, Receiver weight: 620 g. Package width: 98 mm, Package depth: 325 mm, Package height: 210 mm

Features
TypeAV transmitter & receiver
Cable types supportedCat5, Cat6, Cat6a, Cat7
Maximum transfer distance100
LED indicatorsYes
Supported video modes1080p, 2160p
Bandwidth340
HDCPYes
MaterialMetal
3DYes
Consumer Electronics Control (CEC) supportYes
Impedance100
Product colourBlack
Ports & interfaces
Connectivity technologyWired
RJ-45 input ports1
RJ-45 output ports1
Number of HDMI outputs1
USB ports quantity4
USB version2.0
USB connector typeUSB Type-A, USB Type-B
DC-in jackYes
Power
Operating voltage (transmitter)5
Operating voltage (receiver)5
Power consumption (typical)5.75
Power consumption (receiver) (max)13.25
Operational conditions
Operating temperature (T-T)0 - 50
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Weight & dimensions
Weight1.74
Receiver dimensions (WxDxH)116.1 x 182 x 28.7
Receiver weight620
Transmitter dimensions (WxDxH)116.1 x 182 x 28.7
Transmitter weight610
Packaging data
Package width98
Package depth325
Package height210
Package weight2.04
Packaging content
AC adapter includedYes
Cables includedHDMI, USB
Mounting kitYes
Logistics data
Master (outer) case width342
Master (outer) case length512
Master (outer) case height232
Master (outer) case gross weight11
Master (outer) case net weight8.7
Products per master (outer) case5

Specifications

Brand Aten
