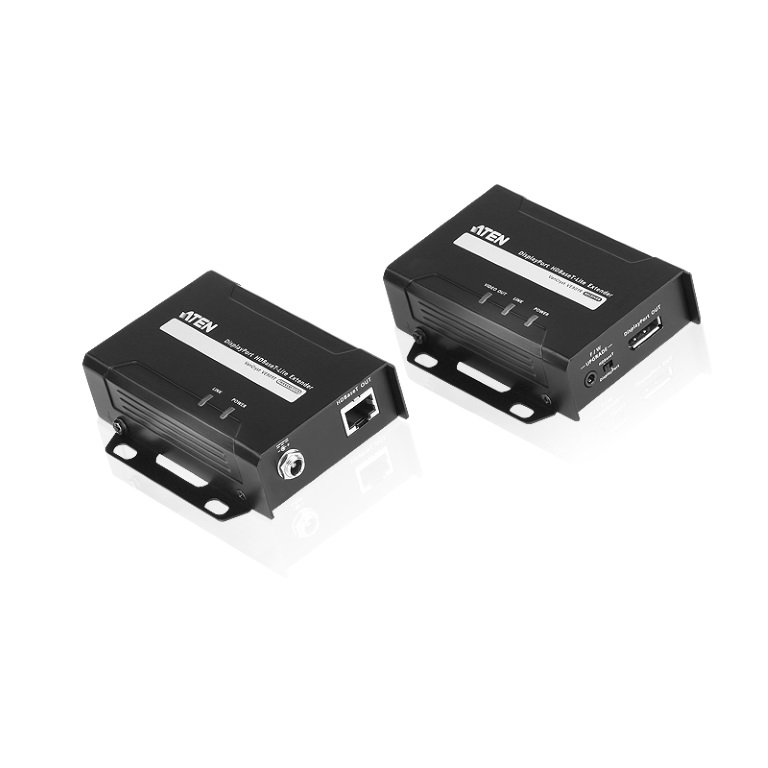

4719264645204 Aten HDBaseT DisplayPort -Lite Extender (1080p@70m, 4K@40m) (PROJECT)

4719264645204 Aten HDBaseT DisplayPort -Lite Extender (1080p@70m, 4K@40m) (PROJECT)

(0 review)

Product Code: 4719264645204

The VE-901 Display Port HDBaseT-Lite Extender is able to extend a Display Port display up to 70 m using a Cat 5e/6/6a cable. This combination of ATEN and HDBaseTâ„¢ technology supports sharing 4K media up to 40m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation. The VE-901 Display Port HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, and a slip-resistant DC Jack lock mechanism, the VE-901 can be installed in a multitude of locations while ensuring peace of mind with its reliability

$ 489.00 $ 489.00 (Tax excluded)

  • Brand
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN DisplayPort HDBaseT-Lite Extender 4K/40m;1080p/70m, 4096 x 2160 pixels, AV transmitter & receiver, 70 m, Wired, Black, HDCP

ATEN DisplayPort HDBaseT-Lite Extender 4K/40m;1080p/70m. Type: AV transmitter & receiver, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat6a. Connectivity technology: Wired. Operating voltage (transmitter): 5 V, Operating voltage (receiver): 5 V, Power consumption (TX): 2.84 W. Weight: 750 g, Receiver dimensions (WxDxH): 94.2 x 66 x 29 mm, Receiver weight: 270 g. Package width: 59 mm, Package depth: 239 mm, Package height: 160 mm

Features
TypeAV transmitter & receiver
Maximum resolution4096 x 2160
Cable types supportedCat5e, Cat6, Cat6a
Maximum transfer distance70
LED indicatorsYes
Supported video modes1080p
Supported graphics resolutions3840 x 2160, 4096 x 2160
Bandwidth297
HDCPYes
MaterialMetal
Rack mountingYes
Plug and PlayYes
Impedance100
HDCP version1.4
Product colourBlack
HDBaseT certifiedYes
Ports & interfaces
Connectivity technologyWired
RJ-45 input ports1
RJ-45 output ports1
HDBaseT portYes
DisplayPorts in1
DisplayPorts out1
DC-in jackYes
Power
Operating voltage (transmitter)5
Operating voltage (receiver)5
Power consumption (TX)2.84
Power consumption (RX)5.72
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Storage relative humidity (H-H)0 - 80
Weight & dimensions
Weight750
Receiver dimensions (WxDxH)94.2 x 66 x 29
Receiver weight270
Transmitter dimensions (WxDxH)94.2 x 66 x 29
Transmitter weight240
Packaging data
Package width59
Package depth239
Package height160
Package weight855
Packaging content
AC adapter includedYes
ManualYes
Logistics data
Master (outer) case width250
Master (outer) case length325
Master (outer) case height175
Master (outer) case gross weight4.85
Master (outer) case net weight3.75
Products per master (outer) case5

Specifications

Brand Aten
