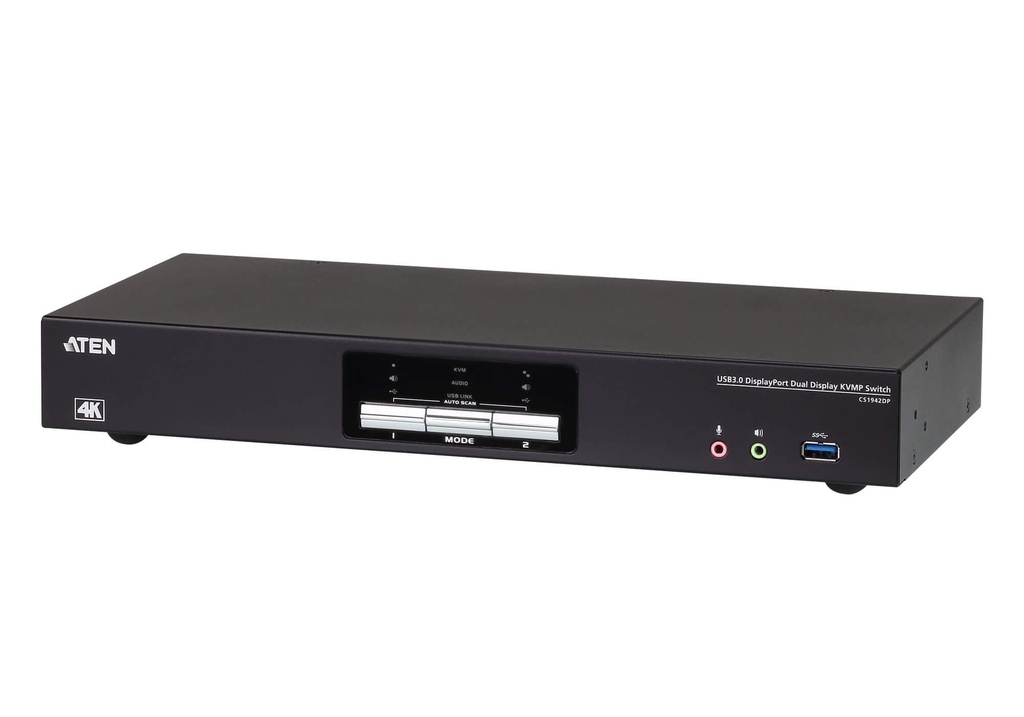

ATEN 2P USB3.0 DisplayPORT Dual View KVMP SW, 4096 x 2160 pixels, Ethernet LAN, 4K Ultra HD, 3.48 W, Black
ATEN 2P USB3.0 DisplayPORT Dual View KVMP SW. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: DC, Input voltage: 12 V, Power consumption (typical): 3.48 W. Width: 156.6 mm, Depth: 335 mm, Height: 44 mm
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 6 |
| DisplayPort version | 1.2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| Console USB ports quantity | 2 |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Headphone outputs | 4 |
| Number of microphone inputs | 4 |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 |
| Video bandwidth | 60 |
| Scan interval | 1,99 |
| Auto scan delay (min) | 1 |
| Auto scan delay (max) | 99 |
| HDCP | Yes |
| Daisy chain | Yes |
| Firmware upgradeable | Yes |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Display | |
| Built-in display | No |
| Power | |
| Power source | DC |
| Input voltage | 12 |
| Power consumption (typical) | 3.48 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 0 - 80 |
| Weight & dimensions | |
| Width | 156.6 |
| Depth | 335 |
| Height | 44 |
| Weight | 2.74 |
| Packaging data | |
| Package width | 116 |
| Package depth | 540 |
| Package height | 233 |
| Package weight | 3.36 |
| Packaging content | |
| Cables included | Audio (3.5mm), DisplayPort to Mini DisplayPort, USB |
| Manual | Yes |
| AC adapter included | Yes |
| Logistics data | |
| Master (outer) case net weight | 8.22 |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 375 |
| Master (outer) case length | 565 |
| Master (outer) case height | 258 |
| Master (outer) case gross weight | 11.2 |
| Products per master (outer) case | 3 |
Specifications
| Brand | Aten |
