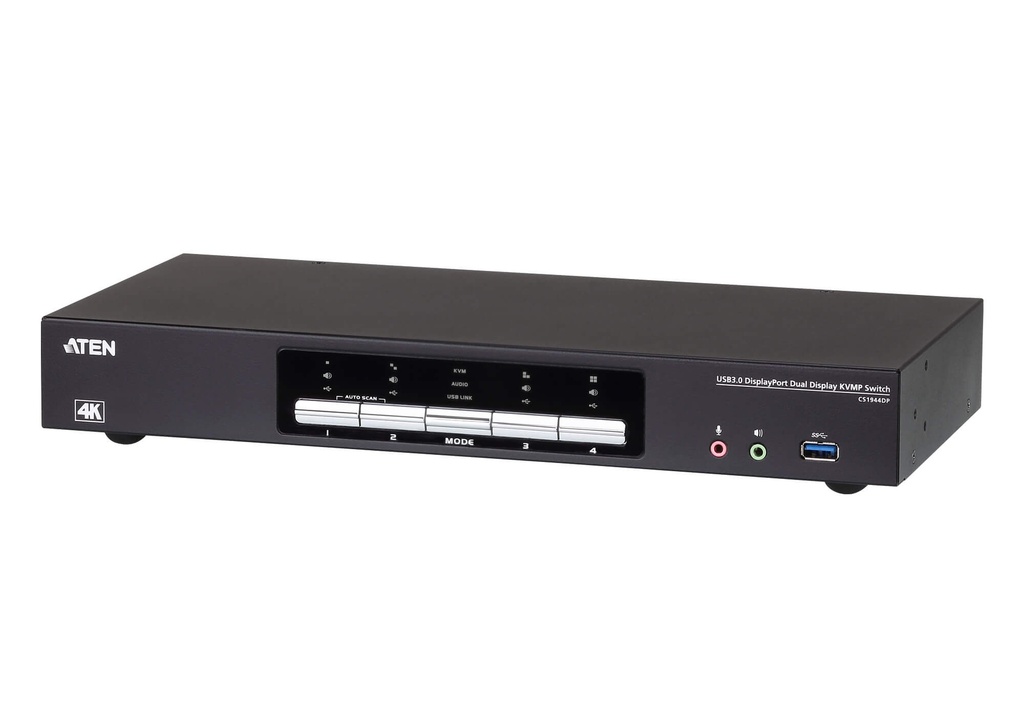

4719264645969 Aten Desktop KVMP Switch 4 Port Dual Display 4k DisplayPort w/ audio, Cables Included, 2x USB Port, Selection Via Front Panel

(0 review)

Product Code: 4719264645969

Aten Desktop KVMP Switch 4 Port Dual Display 4k DisplayPort w/ audio, Cables Included, 2x USB Port, Selection Via Front Panel
The ATEN CS1944DP desktop KVM switch helps organize your desktop. Especially when managing a multimedia workstation at a large organization, CS1944DP provides you with instant access to two or four computers, all through a single USB keyboard, USB mouse and two DisplayPort monitors.
Advanced video support provides a better-defined DisplayPort connection with video resolutions up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz). Incorporating dual display capability, you are allowed to enjoy a wider screen and easily switch between two or four DisplayPort systems. In addition, featuring a built-in USB 3.1 Gen 1 hub, the CS1944DP delivers unprecedented data transfer rates up to 5 Gbps, allowing you to maximize multimedia operations.
Engineered to meet the ever-increasing demand for dual display, ultra-fast data transmission rates, and lossless 4K video resolution, the CS1944DP is specifically designed for where multitasking is needed such as design, financial trading, and video post production.
*Note:
As is common with DisplayPort KVM switches, switching between KVM ports in an Extended Desktop setup may cause windows open on the extended desktop to be resized/repositioned back to a default configuration on the main display. This is due to the nature of the DisplayPort protocol and may require a manual readjustment.

1,039.00 1,039.00 (Tax excluded)

  • Brand
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN 4P USB3.0 DisplayPORT Dual View KVMP SW, 4096 x 2160 pixels, Ethernet LAN, 4K Ultra HD, 6.125 W, Black

ATEN 4P USB3.0 DisplayPORT Dual View KVMP SW. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: DC, Input voltage: 12 V, Power consumption (typical): 6.125 W. Compliance certificates: RoHS

Ports & interfaces
Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
DisplayPorts quantity10
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity4
Console ports3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Console USB ports quantity2
USB hubYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity2
Audio connectionsYes
Headphone outputs6
Number of microphone inputs6
DC-in jackYes
Network
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Performance
HD type4K Ultra HD
Maximum resolution4096 x 2160
Video bandwidth60
Scan interval1,99
Firmware upgradeableYes
Design
Product colourBlack
Housing materialMetal
LED indicatorsYes
Push buttonYes
Hot keysYes
Display
Built-in displayNo
Power
Power sourceDC
Input voltage12
Power consumption (typical)6.125
Sustainability
Compliance certificatesRoHS
Operational conditions
Operating temperature (T-T)0 - 50
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Weight & dimensions
Width156.6
Depth335
Height44
Weight3.46
Packaging data
Package width116
Package depth540
Package height233
Package weight4.21
Packaging content
Cables includedAudio (3.5mm), DisplayPort, USB
ManualYes
AC adapter includedYes
Logistics data
Master (outer) case net weight10.4
Harmonized System (HS) code85176200
Master (outer) case width375
Master (outer) case length565
Master (outer) case height258
Master (outer) case gross weight13.2
Products per master (outer) case3

Specifications

Brand Aten
