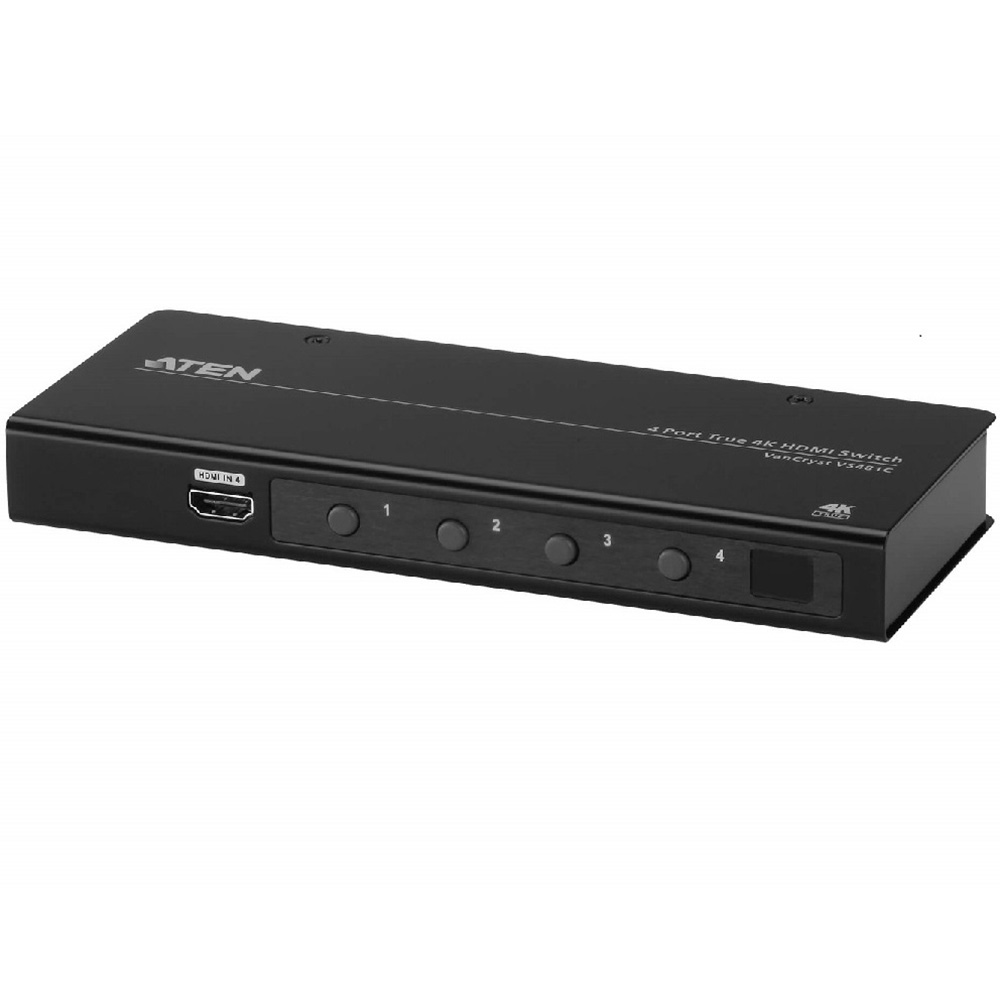

ATEN 4-Port True 4K HDMI Switch, HDMI, Metal, Black, 60 Hz, 3 m, 18 Gbit/s
ATEN 4-Port True 4K HDMI Switch. Video port type: HDMI. Material: Metal, Product colour: Black, Maximum refresh rate: 60 Hz. Power consumption (typical): 0.924 W. Width: 82.1 mm, Depth: 200 mm, Height: 25 mm. Package width: 59 mm, Package depth: 239 mm, Package height: 160 mm
| Ports & interfaces | |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 5 |
| HDMI version | 2.0 |
| HDMI in | 4 |
| Number of HDMI outputs | 1 |
| RS-232 ports | 1 |
| DC-in jack | Yes |
| Features | |
| Material | Metal |
| Product colour | Black |
| Consumer Electronics Control (CEC) support | Yes |
| Plug and Play | Yes |
| HDCP | Yes |
| Maximum refresh rate | 60 |
| Maximum operating distance | 3 |
| Bandwidth | 600 |
| LED indicators | Yes |
| Maximum resolution | 4096 x 2160 |
| 3D | Yes |
| HD type | HD |
| Colour depth | 12 |
| Input impedance | 100 |
| Output impedance | 100 |
| HDCP version | 2.2 |
| Power | |
| Power consumption (typical) | 0.924 |
| Weight & dimensions | |
| Width | 82.1 |
| Depth | 200 |
| Height | 25 |
| Weight | 654 |
| Packaging data | |
| Package width | 59 |
| Package depth | 239 |
| Package height | 160 |
| Package weight | 822 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 0 - 80 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 315 |
| Master (outer) case length | 490 |
| Master (outer) case height | 178 |
| Master (outer) case gross weight | 8.57 |
| Products per master (outer) case | 10 |
| Master (outer) case net weight | 6.54 |
Specifications
| Brand | Aten |
