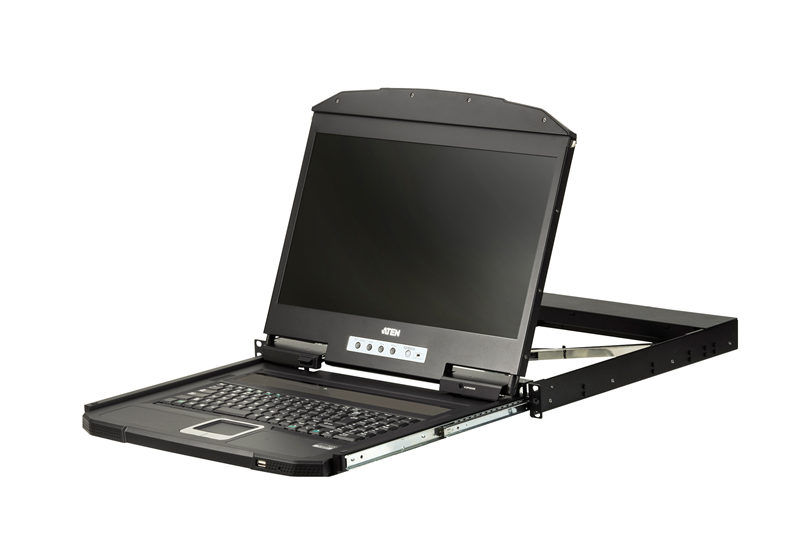

4719264647284 Aten Rackmount Single Rail LCD Console HDMI USB w/ 18.5" LCD Display, 1x Custom KVM Cable Included, 1920x1080@60hz Display, LED Illumination

(0 review)

Product Code: 4719264647284

The CL3700 USB HDMI LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. The CL3700 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms.
The CL3700 is a dedicated front end sliding console for compatible HDMI KVM switches. The CL3700NW’s full HD widescreen LCD monitor ensures excellent video quality and provides ample viewing area. For added convenience, users can choose to manage the computer from an external console. The CL3700 features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard/mouse and HDMI monitor) are provided on the rear panel.
With a rich feature set, the CL3700 is designed to exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry.
Package Contents
1x CL3700 LCD KVM Console with Standard Rack Mount Kit
1x USB HDMI KVM Cable (HDMI, USB, Audio; 1.8 m/6 ft)
1x Firmware Upgrade Cable
1x Power Cord
1x User Instructions

2,659.00 2,659.00 (Tax excluded)

  • Brand
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN 1U Short Depth USB HDMI Single Rail Full, 47 cm (18.5"), 1920 x 1080 pixels, TFT-LCD, 350 cd/m², 1000:1, 178°

ATEN 1U Short Depth USB HDMI Single Rail Full. Display diagonal: 47 cm (18.5"), Display resolution: 1920 x 1080 pixels, Display: TFT-LCD. Interface: HDMI, Keyboard port type: USB, Mouse port type: USB. Keyboard language: US English, Keyboard layout: QWERTY. Power consumption (typical): 23.9 W, AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz. Width: 480.6 mm, Height: 477 mm, Depth: 42.8 mm

Display
Display diagonal47
Display resolution1920 x 1080
DisplayTFT-LCD
Display brightness350
Contrast ratio (typical)1000:1
Viewing angle, horizontal178
Viewing angle, vertical178
Pixel pitch0.213 x 0.213
Aspect ratio16:9
Display typeTFT
Response time20
Display number of colours16.78 million colours
Technical details
MaterialMetal, Plastic
Product colourBlack
Operating relative humidity (H-H)0 - 80
Maximum resolution1920 x 1200
Rack mountingYes
Number of computers controlled1
Push buttonYes
Compliance certificatesRoHS
Rack capacity1U
Ports & interfaces
3.5 mm (1/8-inch) inYes
InterfaceHDMI
Keyboard port typeUSB
Mouse port typeUSB
Video port typeHDMI
USB 2.0 Type-A ports quantity3
USB 2.0 Type-B ports quantity1
Keyboard
Keyboard languageUS English
Keyboard layoutQWERTY
Power
Power consumption (typical)23.9
AC adapter input voltage100 - 240
AC adapter frequency50/60
Input current1
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-20 - 60
Weight & dimensions
Width480.6
Height477
Depth42.8
Weight10.1
Packaging data
Package weight11.9
Package width612
Package depth658
Package height135
Logistics data
Master (outer) case net weight10.1
Master (outer) case width612
Master (outer) case length658
Master (outer) case height135
Master (outer) case gross weight12.6
Products per master (outer) case1

Specifications

Brand Aten
