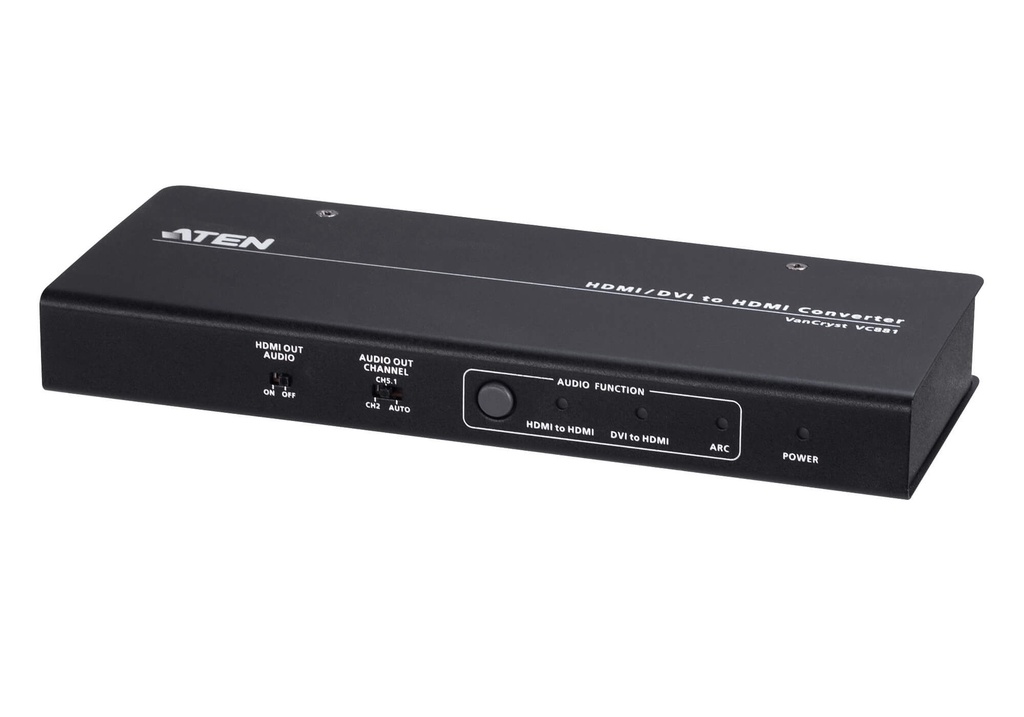

ATEN 4K HDMI/DVI to HDMI Converter With Audio, 3840 x 2160 pixels, AV repeater, 3 m, Wired, 3D, HDCP
ATEN 4K HDMI/DVI to HDMI Converter With Audio. Type: AV repeater, Maximum resolution: 3840 x 2160 pixels, Maximum transfer distance: 3 m. Connectivity technology: Wired. Operating voltage: 5 V, Power consumption (typical): 1.767 W. Width: 202 mm, Depth: 84.9 mm, Height: 25 mm. Quantity per pack: 1 pc(s), Package width: 59 mm, Package depth: 239 mm
| Features | |
|---|---|
| Type | AV repeater |
| Maximum resolution | 3840 x 2160 |
| Maximum transfer distance | 3 |
| LED indicators | Power |
| Supported graphics resolutions | 1920 x 1200 (WUXGA), 3840 x 2160 |
| Bandwidth | 340 |
| HDCP | Yes |
| 3D | Yes |
| Control type | Buttons |
| Firmware upgradeable | Yes |
| Impedance | 100 |
| HDCP version | 1.4 |
| Product colour | Black |
| Ports & interfaces | |
| Connectivity technology | Wired |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| HDMI version | 1.4 |
| DVI input ports | 1 |
| Digital audio optical out | 1 |
| Audio (L/R) out | 1 |
| Audio input | 1 |
| DC-in jack | Yes |
| Power | |
| Operating voltage | 5 |
| Power consumption (typical) | 1.767 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 0 - 80 |
| Storage relative humidity (H-H) | 0 - 80 |
| Weight & dimensions | |
| Width | 202 |
| Depth | 84.9 |
| Height | 25 |
| Weight | 570 |
| Packaging data | |
| Quantity per pack | 1 |
| Package width | 59 |
| Package depth | 239 |
| Package height | 160 |
| Package weight | 750 |
| Packaging content | |
| AC adapter included | Yes |
| Manual | Yes |
| Logistics data | |
| Master (outer) case width | 315 |
| Master (outer) case length | 490 |
| Master (outer) case height | 338 |
| Master (outer) case gross weight | 16 |
| Master (outer) case net weight | 11.4 |
| Products per master (outer) case | 20 |
Specifications
| Brand | Aten |
