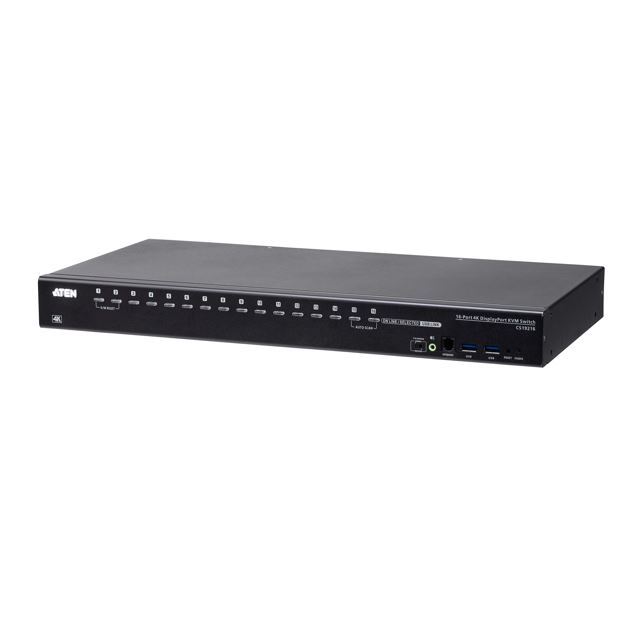

4719264649264 Aten CS19216, 16- Port USB3.0 4K DisplayPort KVM Switch, Superior video quality, Cascadable to two levels-control up to 256 computers, Video DynaSync™

(0 review)

Product Code: 4719264649264

The ATEN CS19216 16-Port USB 3.0 4K DisplayPort KVM Switch can effectively access and control up to 16 DisplayPort computers from a single USB keyboard, USB mouse, and monitor console. With its dual interface console, users can choose between DisplayPort/HDMI video output supporting high video quality up to 4K DCI (4096 x 2160 @ 60Hz), presenting crystal-clear visuals.
To meet the needs of easy expansion and flexibility, the CS19216 can be cascaded to two levels to control up to 256 computers from a single console. Furthermore, the CS19216 supports multi-display function by stacking up to eight CS19216 units to compare and analyze information on 8 monitors at most, which substantially streamlines the working environment.
With two patented ATEN technology – Video DynaSync™ and EDID Expert™, the CS19216 can optimize display resolution, accelerate switching between ports and power up smoothly while eliminating boot-up display problems.




2,949.00 2,949.00 (Tax excluded)

  • Brand
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN 16-Port USB 3.0 4K DisplayPort KVM Switch, 4096 x 2160 pixels, 4K Ultra HD, 26.66 W, Black

ATEN 16-Port USB 3.0 4K DisplayPort KVM Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: DC, Input voltage: 12 V, Power consumption (typical): 26.66 W. Width: 432.4 mm, Depth: 214.3 mm, Height: 44 mm

Ports & interfaces
Number of computers controlled16
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
DisplayPorts quantity16
DisplayPort version1.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity16
Console ports3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A
Console USB ports quantity2
USB hubYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity2
USB connector typeUSB Type-A, USB Type-B
Audio connectionsYes
Headphone outputs17
Number of microphone inputs17
DC-in jackYes
Performance
HD type4K Ultra HD
Maximum resolution4096 x 2160
Video bandwidth60
Scan interval1,5,255
HDCPYes
Firmware upgradeableYes
Design
Product colourBlack
Housing materialMetal
LED indicatorsYes
Push buttonYes
Display
Built-in displayNo
Power
Power sourceDC
Input voltage12
Power consumption (typical)26.66
System requirements
Windows operating systems supportedYes
Linux operating systems supportedYes
Mac operating systems supportedYes
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Storage relative humidity (H-H)0 - 80
Weight & dimensions
Width432.4
Depth214.3
Height44
Weight4.18
Packaging data
Package width133
Package depth499
Package height324
Package weight5.33
Packaging content
Quick installation guideYes
ManualYes
Logistics data
Master (outer) case net weight12.5
Harmonized System (HS) code85176200
Master (outer) case width427
Master (outer) case length519
Master (outer) case height348
Master (outer) case gross weight15.3
Products per master (outer) case3

Specifications

Brand Aten
