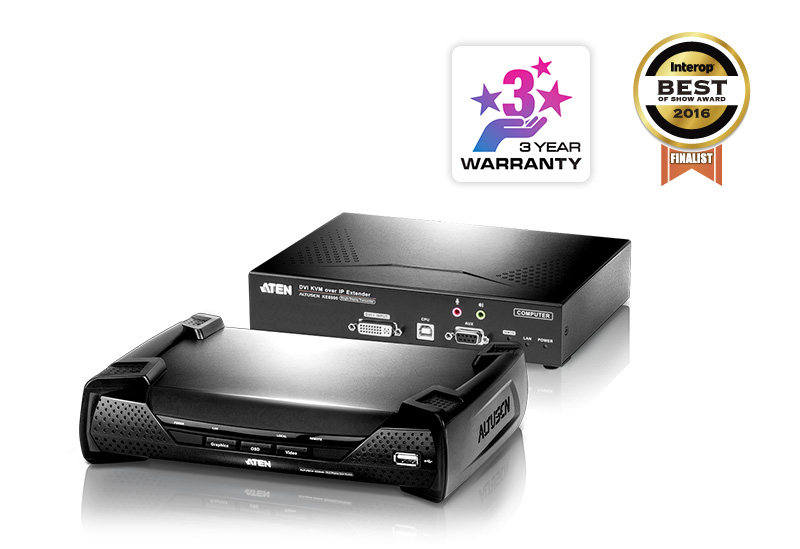

4719264649332 Aten DVI Single Display KVM over IP Transmitter with SFP Fibre Optic network Connection

4719264649332 Aten DVI Single Display KVM over IP Transmitter with SFP Fibre Optic network Connection

(0 review)

Product Code: 4719264649332

Boundless Switching – simply move the mouse cursor across screen boundaries to switch between different receivers (Rx)
Remotely access computers on your KVM installation via intranet
Dual console operation – control your system from both the transmitter and receiver USB keyboard, monitor, and mouse consoles
RS-232 serial ports – allows you to connect to a serial terminal for configuration, and serial devices such as touchscreens and barcode scanners
Superior video quality – up to 1920 x 1200 @ 60 Hz; 24-bit color depth
Supports standard VGA resolutions from 640x480 to 1920x1200 at 60Hz
OSD (On Screen Display) on the Receiver configures both units
Remote login security
DVI digital and analog monitor support
Built-in 8KV/15KV ESD protection and 2KV surge protection
Supports stereo speakers and stereo microphone
Auto-MDIX - automatically detects cable type
Supports widescreen formats
Support High-Quality Video streaming
Virtual Media Support
Hot pluggable
Rack Mountable
Upgradeable firmware
An industrial-grade power adapter included – supports operating temperature of 0°C - 50°C to ensure durability and adaptability under harsh environmental conditions
Recommended Network Switches:
Below are the network switches that have passed ATEN's stress tests using the KE Series extenders. Our tests streamed content over a network with a resolution of 1920 x 1200 @60Hz (KE69 Series) and 3840 x 2160 @30Hz (KE89 Series), 24bit color depth at 60 frames per second.
• Cisco Catalyst 2960X / Catalyst 2960XR / Catalyst 3750
• HP Procurve 2920
• H3C S5120
• Huawei S5700
• DLink DGS-1510

$ 2,539.00 $ 2,539.00 (Tax excluded)

  • Brand
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN FHD DVI-I KVM over IP Transmitter, Transmitter, Wired, 10000 m, Cat5e, 1920 x 1200 pixels, Push-buttons

ATEN FHD DVI-I KVM over IP Transmitter. Type: Transmitter, Connectivity technology: Wired, Maximum transfer distance: 10000 m. Transmitter video port type: DVI-I, Transmitter local keyboard/mouse port type: USB. USB port type: USB Type-A. AC input voltage: 5 V, Power consumption (transmitter) (max): 7.95 W. Package width: 207 mm, Package depth: 414 mm, Package height: 117 mm

Features
TypeTransmitter
Connectivity technologyWired
Maximum transfer distance10000
Cable types supportedCat5e
Maximum digital resolution1920 x 1200
KVM port selectionPush-buttons
Colour depth24
On Screen Display (OSD)Yes
Product colourBlack
MaterialMetal
LED indicatorsYes
Transmitter
Transmitter video port typeDVI-I
Transmitter local keyboard/mouse port typeUSB
RJ-45 ports quantity (transmitter)1
Ports & interfaces
USB port typeUSB Type-A
USB 2.0 ports quantity2
RJ-45 ports quantity1
PC Audio inYes
PC Audio outYes
Power
AC input voltage5
Power consumption (transmitter) (max)7.95
Packaging data
Package width207
Package depth414
Package height117
Package weight2.35
Packaging content
AC adapter includedYes
Cables includedAudio (3.5mm), DVI, USB
ManualYes
Mounting bracket(s) includedYes
Operational conditions
Operating temperature (T-T)0 - 50
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 95
Technical details
Dimensions (WxDxH)163.3 x 215 x 41.8
Weight1.73
Logistics data
Master (outer) case net weight5.19
Harmonized System (HS) code84733080
Master (outer) case width370
Master (outer) case length427
Master (outer) case height232
Master (outer) case gross weight7.75
Products per master (outer) case3

Specifications

Brand Aten
