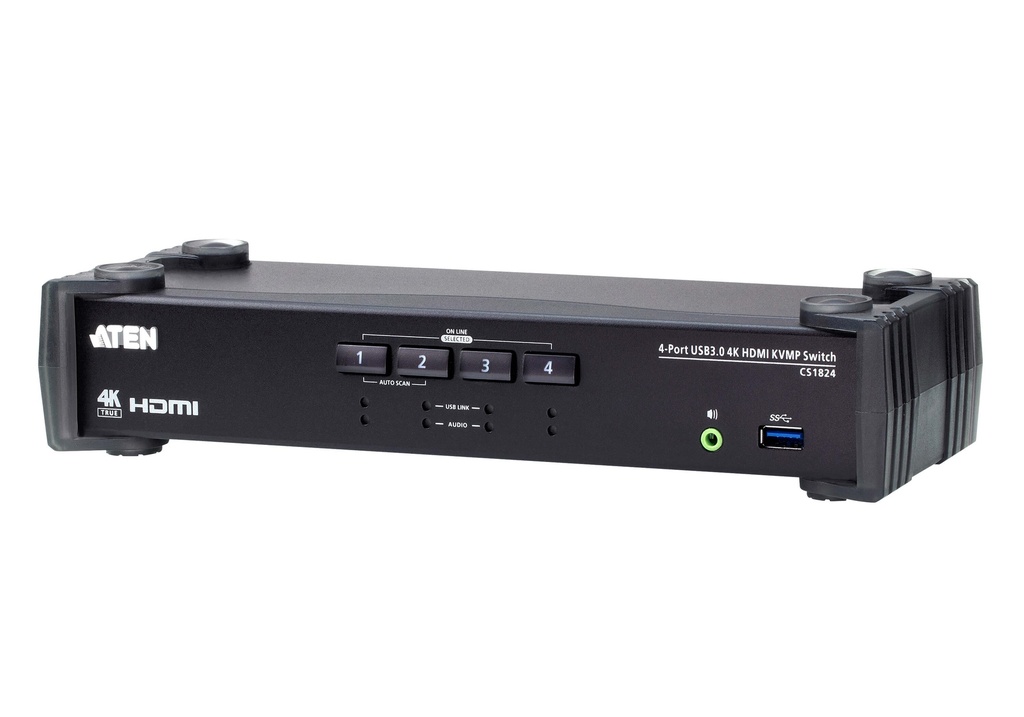

4719264649424 Aten Desktop KVMP Switch 4 Port Single Display 4k HDMI w/ audio mixer mode, Cables Included, Selection Via Front Panel

(0 review)

Product Code: 4719264649424

Aten Desktop KVMP Switch 4 Port Single Display 4k HDMI w/ audio mixer mode, Cables Included, Selection Via Front Panel
The ATEN CS1824 KVMP™ Switch offers effortless management of four HDMI interface computers from a single USB keyboard, mouse and HDMI monitor. Supporting the most superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), the CS1824 optimizes user experience of multitasking.
With patented ATEN technology – Video DynaSync™, users can enjoy better display resolution and faster switching between systems. What’s more, the default EDID mode is available for smooth power-up, high-quality display and eliminates monitor compatibility issue.
In addition, the CS1824 features Audio Mixer Mode which mixes audio sources from any two connected computers as audio output, benefiting users to be notified without missing any system alert even the KVM focus is set on other computers. With a built-in USB 3.1 Gen 1 hub, the CS1824 delivers data transfer rates up to 5 Gbps, allowing you to accelerate multimedia operations and share USB peripherals with ease.
Integrating these outstanding functionalities, the CS1824 provides a great advantage for those doing CGI work, graphic design, video post production, etc. to operate multiple tasks smoothly.

779.00 779.00 (Tax excluded)

  • Brand
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN 4-Port USB 3.0 4K HDMI KVMP™ Switch with Audio Mixer Mode, 4096 x 2160 pixels, 4K Ultra HD, 2.535 W, Black

ATEN 4-Port USB 3.0 4K HDMI KVMP™ Switch with Audio Mixer Mode. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal, Plastic. Power source: DC, Input voltage: 5 V, Power consumption (typical): 2.535 W. Compliance certificates: RoHS

Ports & interfaces
Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
Video port typeHDMI
HDMI ports quantity5
HDMI version2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity4
Console ports3.5mm headphone, HDMI, USB A
Console USB ports quantity4
USB hubYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity2
USB connector typeUSB Type-A, USB Type-B
Serial ports quantity1
Audio connectionsYes
Headphone outputs6
DC-in jackYes
Performance
HD type4K Ultra HD
Maximum resolution4096 x 2160
Video bandwidth60
Scan interval1,99
HDCPYes
Firmware upgradeableYes
Design
Product colourBlack
Housing materialMetal, Plastic
LED indicatorsYes
Push buttonYes
Display
Built-in displayNo
Power
Power sourceDC
Input voltage5
Power consumption (typical)2.535
Sustainability
Compliance certificatesRoHS
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Weight & dimensions
Width88
Depth270
Height55.5
Weight2.24
Packaging data
Package width98
Package depth325
Package height210
Package weight2.54
Logistics data
Master (outer) case net weight11.2
Harmonized System (HS) code85176200
Master (outer) case width342
Master (outer) case length512
Master (outer) case height232
Master (outer) case gross weight13.2
Products per master (outer) case5

Specifications

Brand Aten
