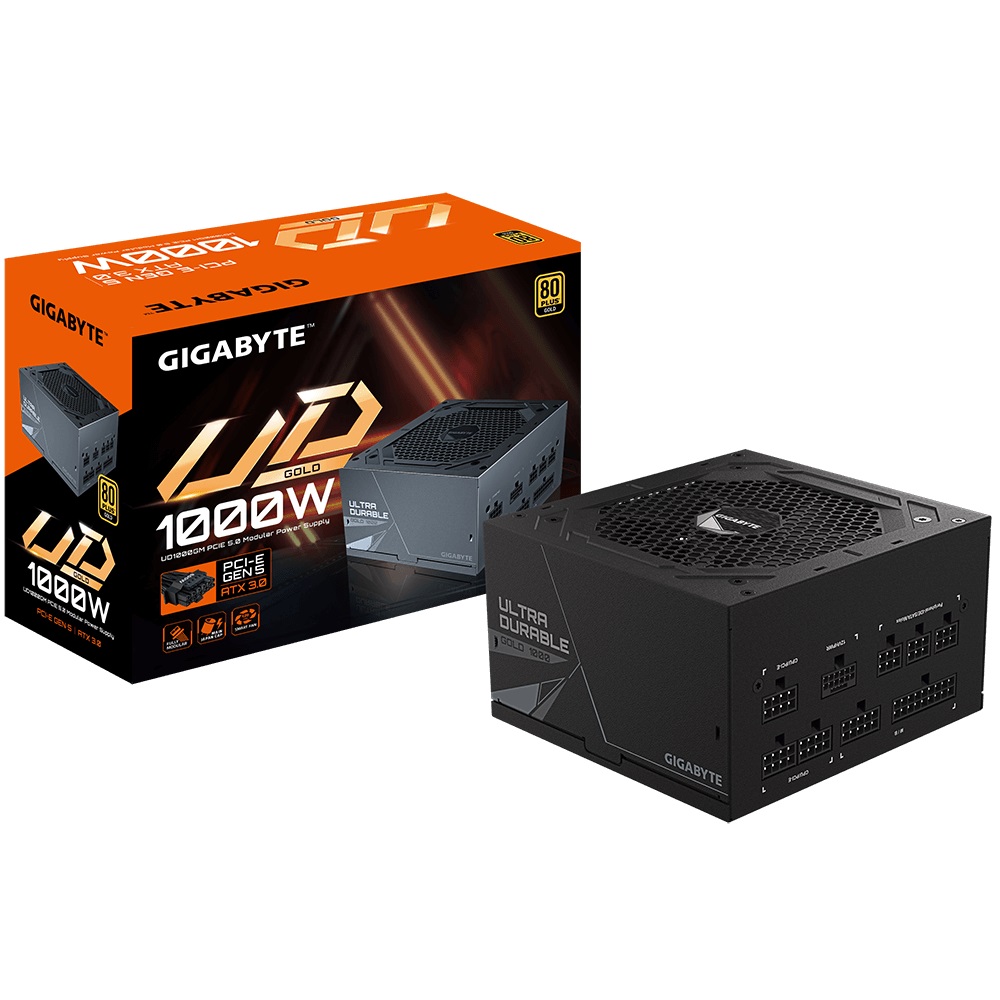

GIGABYTE UD1000GM PG5, 1000 W, 100 - 240 V, 50 - 60 Hz, 6.5 - 15 A, Active, 16 ms
GIGABYTE UD1000GM PG5. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 86 mm, Height: 140 mm
| Power | |
|---|---|
| Total power | 1000 |
| AC input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
| Input current | 6.5 - 15 |
| Power Factor Correction (PFC) type | Active |
| Hold time | 16 |
| Efficiency | 90 |
| Power Good signal delay range | 100 - 150 |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 |
| Number of SATA power connectors | 8 |
| SATA power cable length | 150,600 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 120,150,500 |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power cable length | 70 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 80 |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Bearing technology | HYB |
| Mean time between failures (MTBF) | 100000 |
| Design | |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 |
| Weight & dimensions | |
| Width | 150 |
| Depth | 86 |
| Height | 140 |
Specifications
| Brand | Gigabyte |
