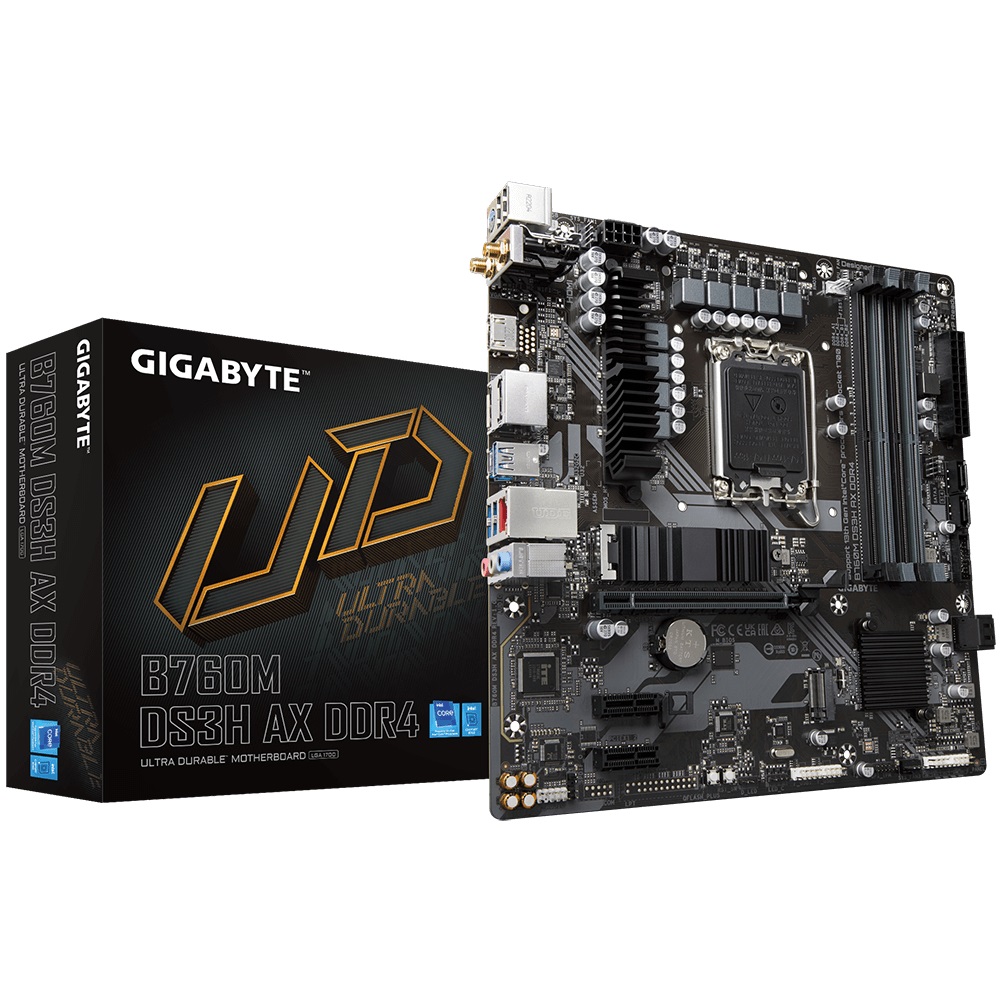

4719331850869 Gigabyte B760M DS3H AX DDR4 Intel LGA 1700 m-ATX Motherboard, 4x DDR4 ~128GB, 1x PCI-E x16, 1x PCI-E x1, 2x M.2, 4x SATA, 3x USB 3.2, 2x USB 2.0, 1x T

4719331850869 Gigabyte B760M DS3H AX DDR4 Intel LGA 1700 m-ATX Motherboard, 4x DDR4 ~128GB, 1x PCI-E x16, 1x PCI-E x1, 2x M.2, 4x SATA, 3x USB 3.2, 2x USB 2.0, 1x T

(0 review)

Product Code: 4719331850869

Gigabyte B760M DS3H AX DDR4 Intel LGA 1700 m-ATX Motherboard, 4x DDR4 ~128GB, 1x PCI-E x16, 1x PCI-E x1, 2x M.2, 4x SATA, 3x USB 3.2, 2x USB 2.0, 1x Type-C
Specification:
CPU
LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
L3 cache varies with CPU
Chipset
Intel® B760 Express Chipset
Memory
Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Onboard Graphics
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version.
Expansion Slots
1 x PCI Express x16 slot
2 x PCI Express x1 slots
Storage Interface
2 x M.2 connector
4 x SATA 6Gb/s connectors
Back Panel Connectors
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x HDMI port
2 x DisplayPorts
3 x USB 3.2 Gen 1 ports
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x RJ-45 port
3 x audio jacks
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

$ 304.00 $ 304.00 (Tax excluded)

  • Brand
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

GIGABYTE B760M DS3H AX DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen2, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR4-SDRAM, 128 GB

GIGABYTE B760M DS3H AX DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C

Processor
Processor manufacturerIntel
Processor socketLGA 1700
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported processor socketsLGA 1700
Memory
Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333
Supported memory clock speed (max)5333
Maximum internal memory128
Unbuffered memoryYes
Storage controllers
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Number of HDDs supported4
Number of storage drives supported6
RAID supportYes
RAID levels0, 1, 5, 10
Graphics
Parallel processing technology supportNot supported
Maximum resolution4096 x 2304
HDCPYes
DirectX version12.0
Internal I/O
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors4
Total number of SATA connectors4
S/PDIF out connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
EPS power connector (8-pin)Yes
TPM connectorYes
12V power connectorYes
RGB LED pin headerYes
Rear panel I/O ports
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity1
HDMI ports quantity1
HDMI version2.0
DisplayPorts quantity2
DisplayPort version1.2
Headphone outputs3
Microphone inYes
WiFi-AP antenna jack2
USB connector typeUSB Type-A, USB Type-C
Network
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiYes
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller modelRZ608
BluetoothYes
Bluetooth version5.2
Features
Motherboard chipsetIntel B760 Express
Audio output channels7.1
Product colourBrown
PC health monitoringFan, Temperature, Voltage, Water cooling
Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Windows operating systems supportedWindows 10 x64, Windows 11 x64
Expansion slots
PCI Express x1 slots2
PCI Express x16 slots1
Number of M.2 (M) slots2
BIOS
BIOS typeUEFI AMI
BIOS memory size128
ACPI version5.0
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7
Logistics data
Country of originChina
Products per shipping (inner) case1
Battery
Battery weight3
Lithium weight per battery0.0700
Number of battery cells1
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Packaging data
Package width265
Package depth265
Package height54
Package weight1.1
Weight & dimensions
Width244
Depth244
Height35
Packaging content
Cables includedSATA
Batteries includedYes
Bundled softwareNorton Internet Security
Technical details
Warranty period3

Specifications

Brand Gigabyte
