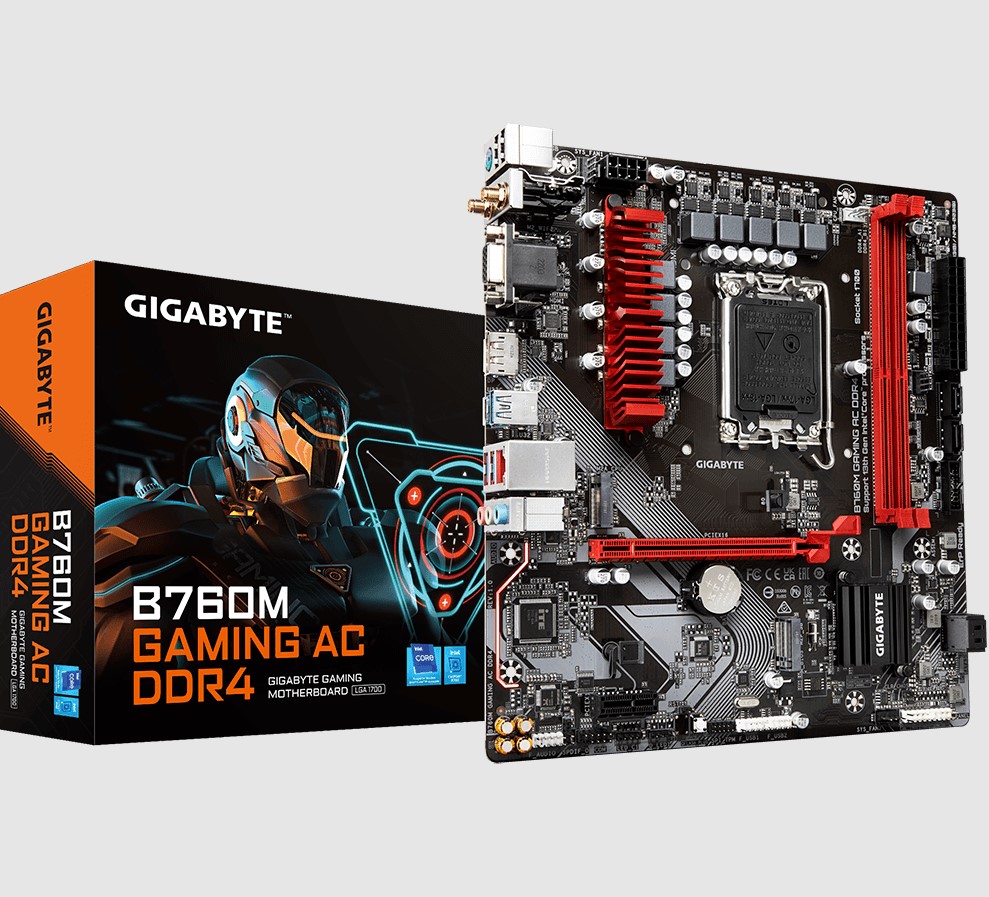

4719331851477 Gigabyte B760M GAMING AC DDR4 Intel LGA 1700 ATX Motherboard, 2x DDR4 ~64GB, PCI-E x16, M.2, 4x SATA, 5x USB 3.2, 2x USB 2.0

4719331851477 Gigabyte B760M GAMING AC DDR4 Intel LGA 1700 ATX Motherboard, 2x DDR4 ~64GB, PCI-E x16, M.2, 4x SATA, 5x USB 3.2, 2x USB 2.0

(0 review)

Product Code: 4719331851477

Gigabyte B760M GAMING AC DDR4 Intel LGA 1700 ATX Motherboard, 2x DDR4 ~64GB, PCI-E x16, M.2, 4x SATA, 5x USB 3.2, 2x USB 2.0
Specification:
CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
L3 cache varies with CPU
Chipset
Intel® B760 Express Chipset
Memory
Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
Expansion Slots
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface
CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA

$ 253.00 $ 253.00 (Tax excluded)

  • Brand
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

GIGABYTE B760M GAMING AC DDR4 Motherboard - Supports Intel Core 14th CPUs, 6+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 802.11ac, 2.5GbE LAN, USB 3.2 Gen 1, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR4-SDRAM, 64 GB

GIGABYTE B760M GAMING AC DDR4 Motherboard - Supports Intel Core 14th CPUs, 6+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 802.11ac, 2.5GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 5 (802.11ac)

Processor
Processor manufacturerIntel
Processor socketLGA 1700
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Maximum number of SMP processors1
Supported processor socketsLGA 1700
Memory
Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333
Supported memory clock speed (max)5333
Maximum internal memory64
Unbuffered memoryYes
Storage controllers
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Number of HDDs supported4
Number of storage drives supported6
RAID supportYes
RAID levels0, 1, 5, 10
Graphics
Parallel processing technology supportNot supported
Maximum resolution4096 x 2304
HDCPYes
DirectX version12.0
Discrete graphics supportYes
Number of displays supported3
Internal I/O
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors4
Total number of SATA connectors4
S/PDIF out connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors3
EPS power connector (8-pin)Yes
TPM connectorYes
Serial port headers1
Thunderbolt headers2
RGB LED pin headerYes
Rear panel I/O ports
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
VGA (D-Sub) ports quantity1
HDMI ports quantity1
HDMI version2.0
DisplayPorts quantity1
Headphone outputs1
Line-inYes
Microphone inYes
Network
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiYes
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 5 (802.11ac)
BluetoothYes
Bluetooth version5.0
Features
Motherboard chipsetIntel B760 Express
Audio chipRealtek ALC897
Audio output channels7.1
Product colourBrown
PC health monitoringFan, Temperature, Voltage, Water cooling
Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Cooling typeActive
Power source typeATX
Windows operating systems supportedWindows 10, Windows 11
Expansion slots
PCI Express x16 (Gen 3.x) slots1
PCI Express x16 (Gen 4.x) slots1
Number of M.2 (M) slots2
1st M.2 largest key size2280
1st M.2 highest PCI Express generation4.0
2nd M.2 largest key size2280
2nd M.2 highest PCI Express generation4.0
BIOS
BIOS typeUEFI AMI
BIOS memory size256
ACPI version5.0
Clear CMOS jumperYes
Clear CMOS buttonYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7
Logistics data
Country of originChina
Products per shipping (inner) case1
Battery
Battery weight3
Lithium weight per battery0.0700
Number of battery cells1
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Packaging data
Package width270
Package depth268
Package height68
Package weight1.15
Weight & dimensions
Width244
Depth225
Height35
Packaging content
Cables includedSATA
Batteries includedYes
Drivers includedYes
Bundled softwareNorton Internet Security (OEM version) LAN bandwidth management software
Technical details
Warranty period3

Specifications

Brand Gigabyte
