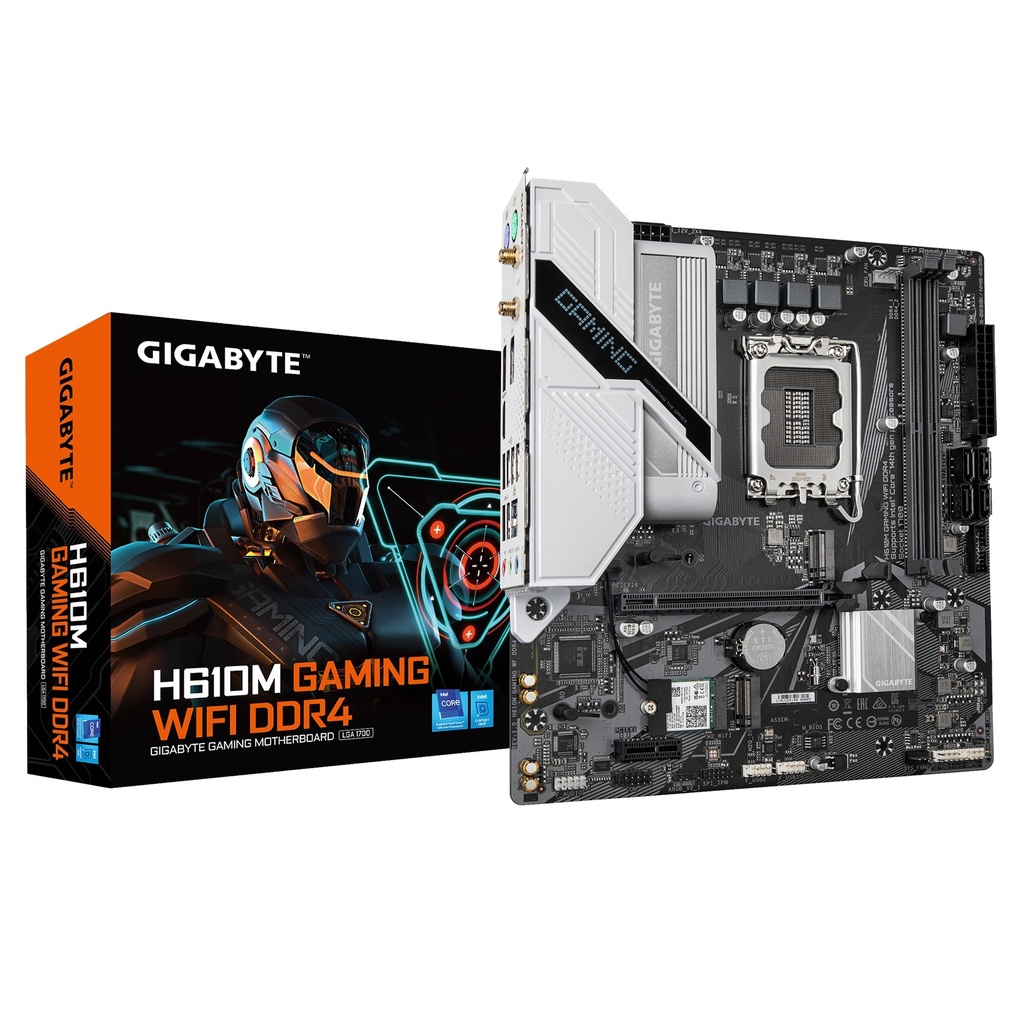

GIGABYTE H610M GAMING WF DDR4 Motherboard - Supports Intel Core 14th CPUs, 6+1+1 Hybrid Digital VRM, up to 3200MHz DDR4, 2xPCIe 3.0 M.2, Wi-Fi 802.11ac, GbE LAN , USB 3.2 Gen 1, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, 64 GB, DDR4-SDRAM
GIGABYTE H610M GAMING WF DDR4 Motherboard - Supports Intel Core 14th CPUs, 6+1+1 Hybrid Digital VRM, up to 3200MHz DDR4, 2xPCIe 3.0 M.2, Wi-Fi 802.11ac, GbE LAN , USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Graphics card family: Intel, Graphics card: HD Graphics, Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| Maximum internal memory supported by processor | 64 |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2933,3000,3200 |
| Supported memory clock speed (max) | 3200 |
| Maximum internal memory | 64 |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
| Unbuffered memory | Yes |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 5 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Graphics card family | Intel |
| Graphics card | HD Graphics |
| Maximum resolution | 4096 x 2304 |
| HDCP | Yes |
| DirectX version | 12.0 |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Total number of SATA connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
| Serial port headers | 1 |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| USB connector type | USB Type-A |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| Features | |
| Motherboard chipset | Intel H610 Express |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 |
| Product colour | Brown |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Cooling type | Active |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Clear CMOS button | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Logistics data | |
| Country of origin | China |
| Products per shipping (inner) case | 1 |
| Battery | |
| Battery weight | 3 |
| Lithium weight per battery | 0.0700 |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Packaging data | |
| Package width | 270 |
| Package depth | 268 |
| Package height | 68 |
| Package weight | 1.18 |
| Weight & dimensions | |
| Width | 244 |
| Depth | 220 |
| Height | 35 |
| Packaging content | |
| Cables included | SATA |
| Batteries included | Yes |
| Bundled software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Technical details | |
| Warranty period | 3 |
Specifications
| Brand | Gigabyte |
